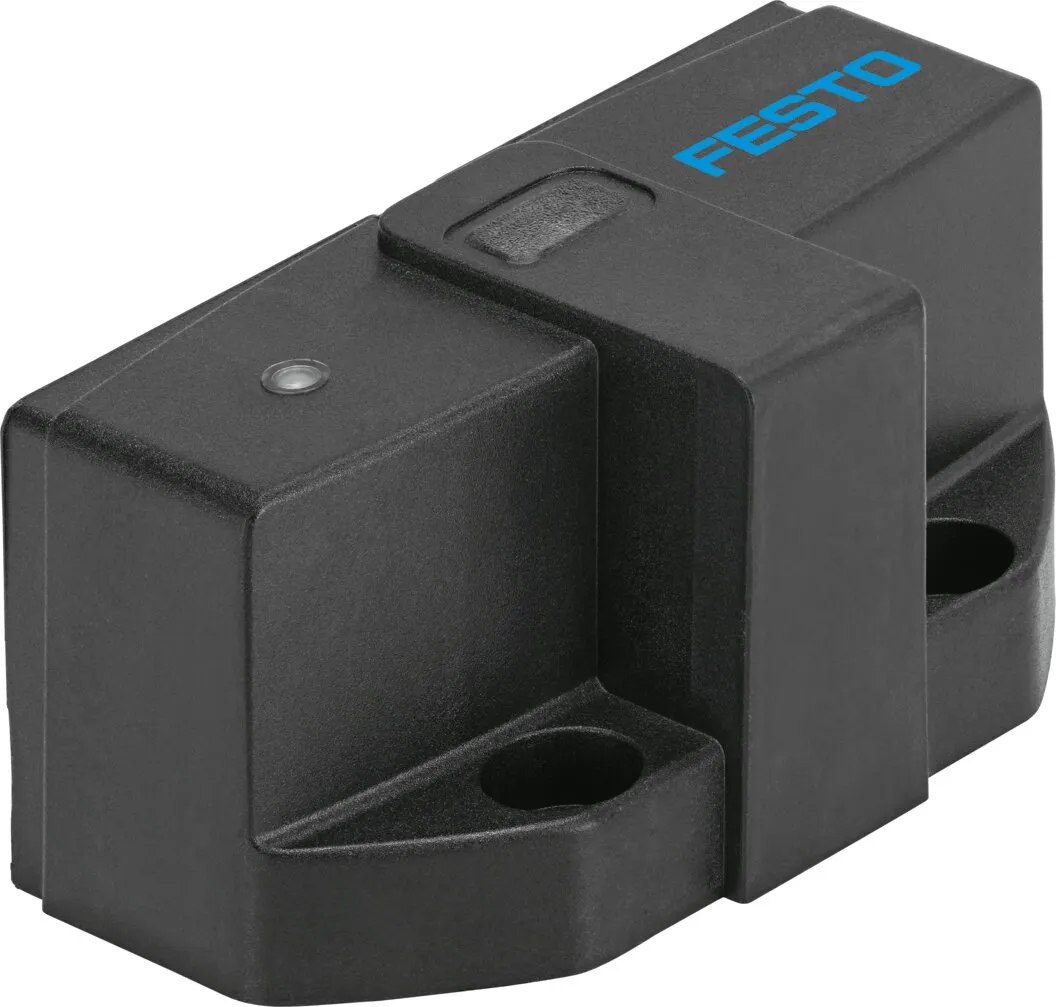

Festo SRBG-C1-N-1-P-M12
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version with extended addressing options , LED status indicator for switching status, supply voltage and solenoid valve output , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design | Angular |
|---|---|
| Based On Standard | EN 60947-5-2, VDI/VDE 3845 |
| Approval | RCM trademark, c UL us (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Kc Mark | KC-EMV |
| Note On Materials | RoHS-compliant |
| Measuring Principle | Inductive |
| Ambient Temperature | -25, 70 °C |
| Switching Output | PNP |
| Switching Element Function | N/O contact |
| Max. Switching Frequency | 500 Hz |
| Max. Output Current Dc | 100 mA |
| Voltage Drop | 3 V |
| Off State Current | 0.5 mA |
| Short Circuit Current Rating | Pulsed |
| Operational Voltage Range Dc | 10, 30 V |
| No Load Supply Current | 25 mA |
| Reverse Polarity Protection | For all electrical connections |
| Electrical Connection Input | M12x1 |
| Electrical Connection 1, Connection Type | Plugs |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Connection Pattern | 00995597 |
| Type Of Mounting | Threaded |
| Mounting Position | optional |
| Product Weight | 70 g |
| Material Housing | PBT |
| Material Screws | High-alloy stainless steel |
| Material Fitting | Nickel-plated, die-cast zinc |
| Ready Status Indication | Green LED |
| Switching Status Indication | Yellow LED |
| Storage Temperature | -25, 70 °C |
| Degree Of Protection | IP67 |
| Shock Resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Pollution Degree | 3 |
