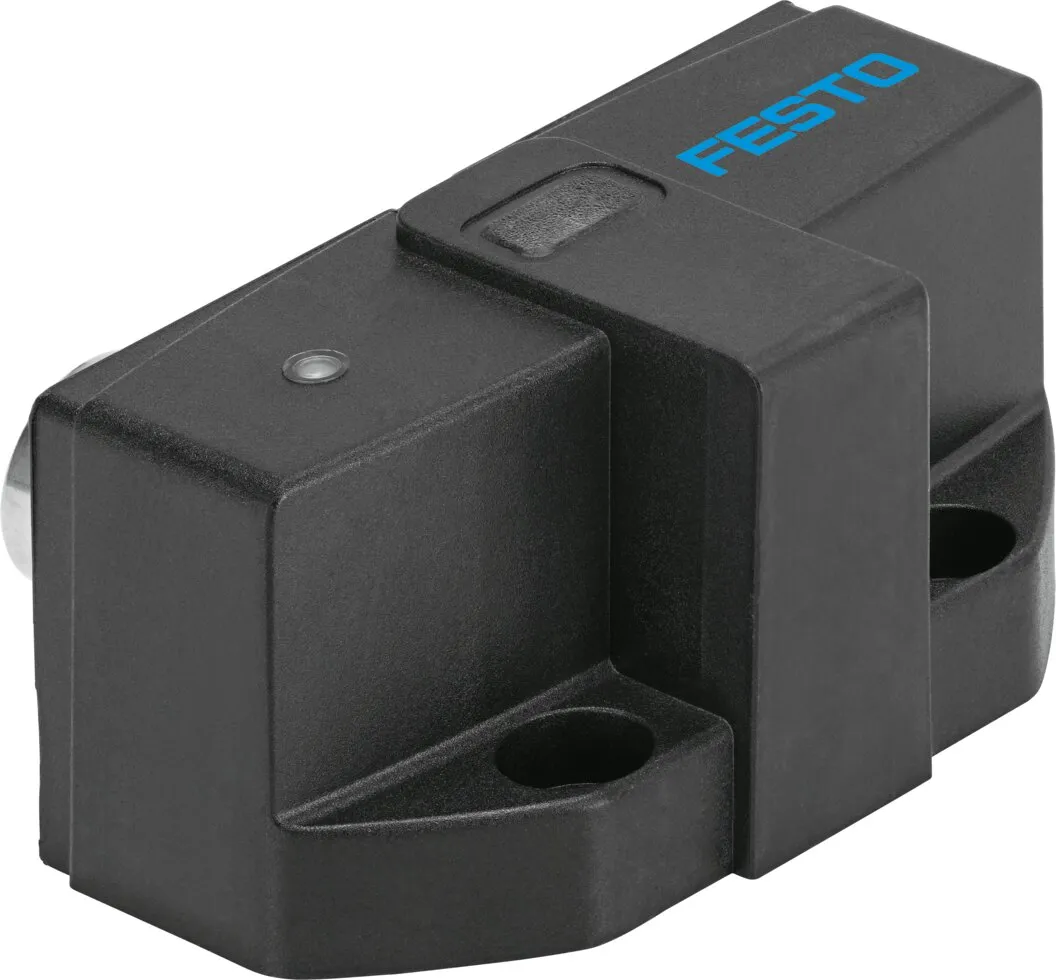

Festo SRBG-C1-N-1-AS-M12-M12
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version with extended addressing options , LED status indicator for switching status, supply voltage and solenoid valve output , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
EN 60947-5-2, VDI/VDE 3845 |
| Approval |
RCM trademark, c UL us (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Kc Mark |
KC-EMV |
| Note On Materials |
RoHS-compliant |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-25, 70 °C |
| Switching Output |
AS-Interface |
| Switching Element Function |
N/C or N/O contact, switchable |
| Max. Switching Frequency |
100 Hz |
| Max. Switching Output Voltage Dc |
26.4 V |
| Max. Output Current Dc |
100 mA |
| Max. Switching Capacity Dc |
2.5 W |
| Protocol |
AS-Interface |
| As Interface, Protocol Version |
V3.0 |
| As Interface, Adressing Range |
1A … 31A (0), 1B … 31B |
| As Interface, Product Identification |
IO code: D, ID code: A, ID1 code: 7, ID2 code: E |
| Operational Voltage Range Dc |
26.5, 31.6 V |
| No Load Supply Current |
35 mA |
| Electrical Connection Input |
M12x1 |
| Electrical Connection 1, Connection Type |
Plug and socket strip |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Connection Pattern |
00995599 |
| Type Of Mounting |
Threaded |
| Mounting Position |
optional |
| Product Weight |
70 g |
| Material Housing |
PBT |
| Material Screws |
High-alloy stainless steel |
| Material Fitting |
Nickel-plated, die-cast zinc |
| Ready Status Indication |
Green LED |
| Switching Status Indication |
Yellow LED |
| Status Indication |
LED yellow = valve switching status, LED red = wire break/short circuit at valve |
| Storage Temperature |
-25, 70 °C |
| Degree Of Protection |
IP67 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
