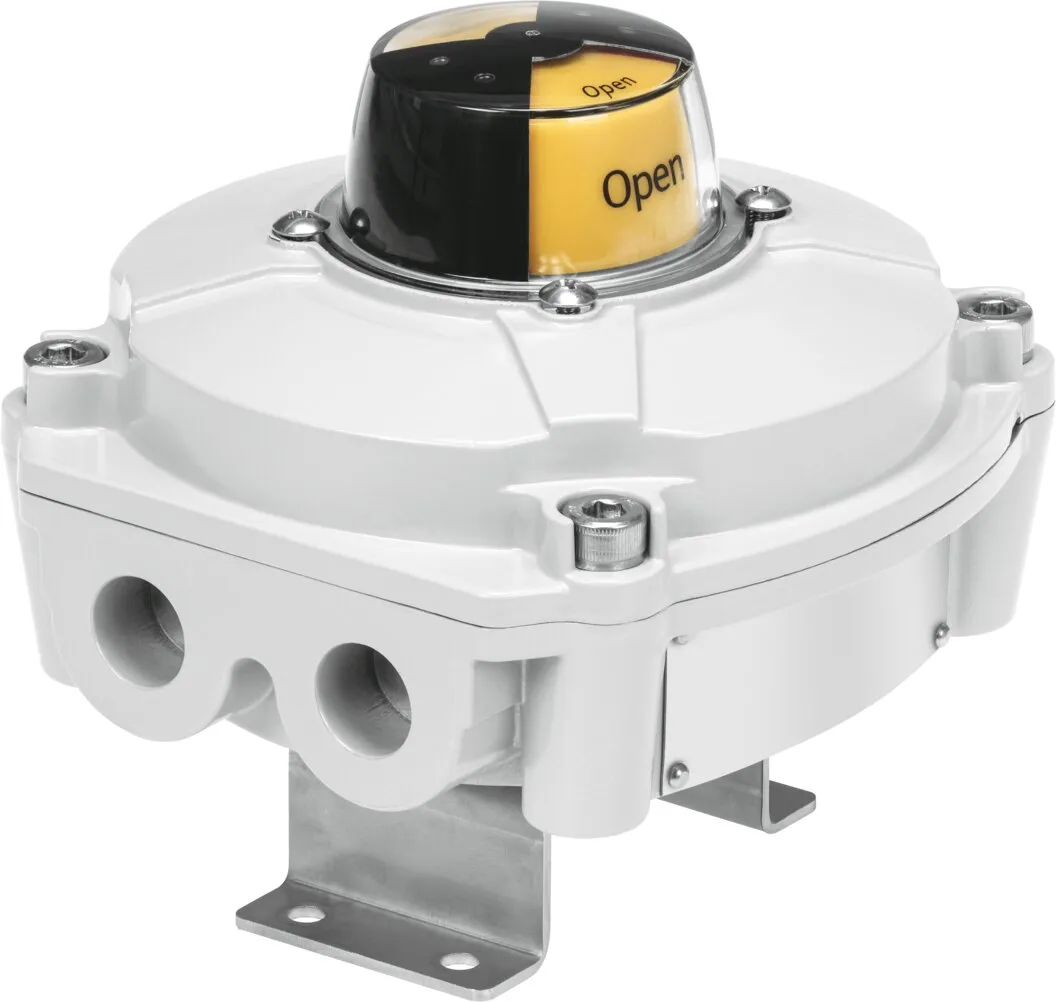

Festo SRBE-CA3-YR90-N-20N-ZC-C2N12-EX
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current posi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected , With safety functions , To EU Explosion Protection Directive (ATEX)
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
EN 60947-5-2, ISO 5211, VDI/VDE 3845 |
| Approval |
RCM trademark |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection |
Zone 1 (ATEX), Zone 1 (CN), Zone 1 (IEC-EX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 2G |
| Explosion Ignition Protection Type For Gas |
Ex db IIC T6 Gb |
| Atex Category Dust |
II 2D |
| Explosion Ignition Protection Type For Dust |
Ex tb IIIC T…°C Db |
| Explosion Protection Certification Outside The Eu |
EPL Db (BR), EPL Db (CN), EPL Db (GB), EPL Db (IEC-EX), EPL Gb (CN), EPL Gb (GB), EPL Gb (IECEx) |
| Explosion Ambient Temperature |
-20°C <= Ta <= +60°C |
| Max. Surface Temperature |
61 °C |
| Certificate Issuing Authority |
DNV 16.0067X, Eurocert. SIL202587141, FTZU 15 ATEX 0095X, GYJ16.1497X, GYJ23.1167X, IECEx FTZU 15.0014X, KCC-18-GA4BO |
| Note On Materials |
RoHS-compliant |
| Safety Integrity Level (Sil) |
Safety Integrity Level 3 |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-20, 60 °C |
| Switching Output |
NAMUR |
| Switching Element Function |
N/C contact |
| Max. Output Current Dc |
3 mA |
| Nominal Operating Voltage Dc |
8.2 V |
| Microswitch Type |
P&F NCB2-V3-N0 |
| Electrical Connection |
10-pin, Screw terminal |
| Connectable Nominal Cross Section Conductor |
0.25, 2.5 mm² |
| Cable Fitting |
1/2 NPT |
| Type Of Mounting |
To VDI/VDE 3845 |
| Connection Point For Positioner And Position Sensor Conforms To Standard |
VDI/VDE 3845 size AA 1 |
| Mounting Position |
optional |
| Product Weight |
1700 g |
| Housing Colour |
Silver |
| Material Housing |
Painted die cast aluminium |
| Material Seals |
NBR |
| Material Shaft |
High-alloy stainless steel |
| Material Screws |
High-alloy stainless steel |
| Material Mounting Bracket |
High-alloy stainless steel |
| Material Indicator |
PC |
| Material Snap Ring |
High-alloy stainless steel |
| Material Disc |
High-alloy stainless steel |
| Position Indicator |
Yellow/red |
| Setting Range Of Angular Detection |
90 deg |
| Storage Temperature |
-20, 60 °C |
| Degree Of Protection |
IP67, NEMA 4/4X |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
