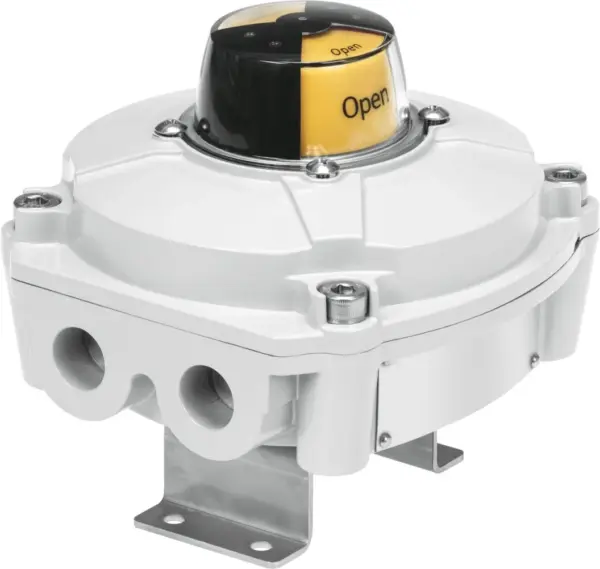

Festo SRBE-CA3-YR90-N-1-ZU-C2N12-EX
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current posi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected , With safety functions , To EU Explosion Protection Directive (ATEX)
Specification
| Design | Angular |
|---|---|
| Based On Standard | EN 60947-5-2, ISO 5211, VDI/VDE 3845 |
| Approval | RCM trademark |
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection | Zone 1 (ATEX), Zone 1 (CN), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas | II 2G |
| Explosion Ignition Protection Type For Gas | Ex db IIC T6 Gb |
| Atex Category Dust | II 2D |
| Explosion Ignition Protection Type For Dust | Ex tb IIIC T…°C Db |
| Explosion Protection Certification Outside The Eu | EPL Db (BR), EPL Db (CN), EPL Db (GB), EPL Db (IEC-EX), EPL Gb (CN), EPL Gb (GB) |
| Explosion Ambient Temperature | -20°C <= Ta <= +60°C |
| Max. Surface Temperature | 75 °C |
| Certificate Issuing Authority | DNV 16.0067X, Eurocert. SIL202587141, FTZU 15 ATEX 0095X, GYJ16.1497X, GYJ23.1167X |
| Note On Materials | RoHS-compliant |
| Safety Integrity Level (Sil) | Safety Integrity Level 3 |
| Measuring Principle | Inductive |
| Ambient Temperature | -20, 60 °C |
| Switching Output | Non-contacting, 2-wire |
| Switching Element Function | N/O contact |
| Max. Output Current Dc | 4, 100 mA |
| Nominal Output Current | 0.004, 0.1 A |
| Voltage Drop | 5 V |
| Min. Load Current | 4 mA |
| Off State Current | 1 mA |
| Operational Voltage Range Dc | 5, 60 V |
| Reverse Polarity Protection | For all electrical connections |
| Microswitch Type | P&F NBB3-V3-Z4 |
| Electrical Connection | Screw terminal |
| Connectable Nominal Cross Section Conductor | 0.25, 2.5 mm² |
| Cable Fitting | 1/2 NPT |
| Type Of Mounting | To VDI/VDE 3845 |
| Connection Point For Positioner And Position Sensor Conforms To Standard | VDI/VDE 3845 size AA 1 |
| Mounting Position | optional |
| Product Weight | 1700 g |
| Housing Colour | Silver |
| Material Housing | Painted die cast aluminium |
| Material Seals | NBR |
| Material Shaft | High-alloy stainless steel |
| Material Screws | High-alloy stainless steel |
| Material Mounting Bracket | High-alloy stainless steel |
| Material Indicator | PC |
| Material Snap Ring | High-alloy stainless steel |
| Material Disc | High-alloy stainless steel |
| Position Indicator | Yellow/red |
| Setting Range Of Angular Detection | 90 deg |
| Storage Temperature | -20, 60 °C |
| Degree Of Protection | IP67, NEMA 4/4X |
| Shock Resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Pollution Degree | 3 |
