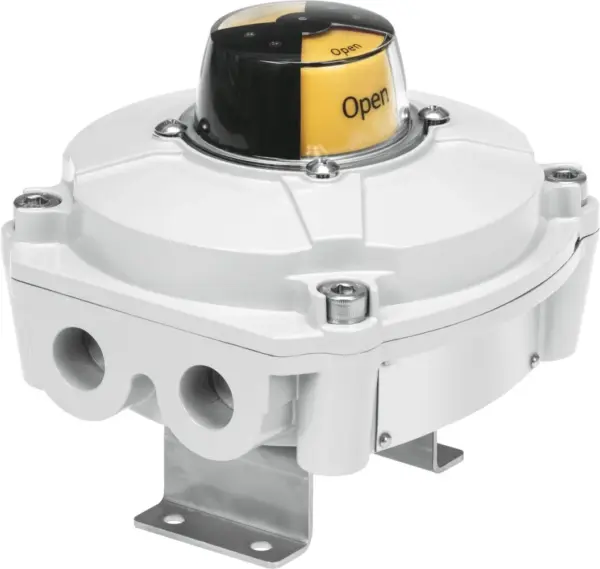

Festo SRBE-CA3-YR90-N-1-N-C2N12-C1
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current posi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected , With safety functions , To EU Explosion Protection Directive (ATEX)
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
EN 60947-5-2, ISO 5211, VDI/VDE 3845 |
| Approval |
RCM trademark |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Explosion Protection |
Class I, Div. 1 (CA), Class I, Div. 1 (US), Class I, Div. 2 (CA), Class I, Div. 2 (US), Class II, Div. 1 (CA), Class II, Div. 1 (US), Zone 1 (CA), Zone 1 (US), Zone 2 (CA), Zone 2 (US), Zone 21 (CA), Zone 21 (US) |
| Explosion Ignition Protection Type For Gas |
AEx nA IIC T5 Gc, Ex nA IIC T5 Gc |
| Explosion Ignition Protection Type For Dust |
Ex tb IIIC T108°C Db |
| Explosion Protection Certification Outside The Eu |
Class I, Div. 1 (CA), Class I, Div. 1 (US), Class I, Div. 2 (CA), Class I, Div. 2 (US), Class II, Div. 1 (CA), Class II, Div. 1 (US), Class III (CA), Class III (US), EPL Db (CA), EPL Db (US), EPL Gb (CA), EPL Gb (US), EPL Gc (CA), EPL Gc (US) |
| Certificate Issuing Authority |
CSA 263311, Eurocert. SIL202587141 |
| Note On Materials |
RoHS-compliant |
| Safety Integrity Level (Sil) |
Safety Integrity Level 3 |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-20, 60 °C |
| Switching Output |
NPN |
| Switching Element Function |
N/O contact |
| Max. Output Current Dc |
100 mA |
| Voltage Drop |
3 V |
| Off State Current |
0.5 mA |
| Short Circuit Current Rating |
Pulsed |
| Operational Voltage Range Dc |
10, 30 V |
| No Load Supply Current |
15 mA |
| Reverse Polarity Protection |
For all electrical connections |
| Microswitch Type |
P&F NBB2-V3-E0 |
| Electrical Connection |
10-pin, Screw terminal |
| Connectable Nominal Cross Section Conductor |
0.25, 2.5 mm² |
| Cable Fitting |
1/2 NPT |
| Type Of Mounting |
On flange according to ISO 5211, Via mounting bracket |
| Connection Point For Positioner And Position Sensor Conforms To Standard |
VDI/VDE 3845 size AA 1 |
| Mounting Position |
optional |
| Product Weight |
1700 g |
| Housing Colour |
Silver |
| Material Housing |
Painted die cast aluminium |
| Material Seals |
NBR |
| Material Shaft |
High-alloy stainless steel |
| Material Screws |
High-alloy stainless steel |
| Material Mounting Bracket |
High-alloy stainless steel |
| Material Indicator |
PC |
| Material Snap Ring |
High-alloy stainless steel |
| Material Disc |
High-alloy stainless steel |
| Position Indicator |
Yellow/red |
| Setting Range Of Angular Detection |
90 deg |
| Storage Temperature |
-20, 60 °C |
| Degree Of Protection |
IP67, NEMA 4/4X |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
