Festo SRBC-CA5-YR90-N-20N-ZC-C2-EX6
Pre-assembled mounting adapter for ease of installation , The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Cle…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

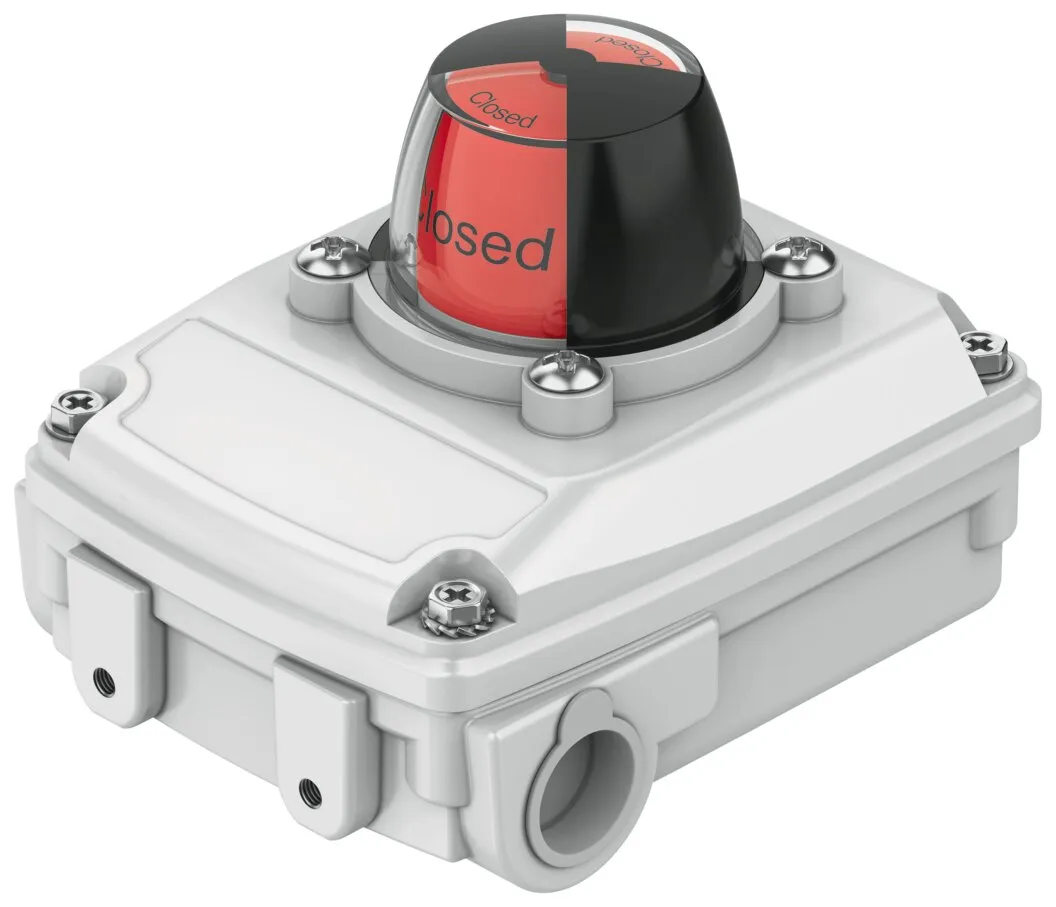

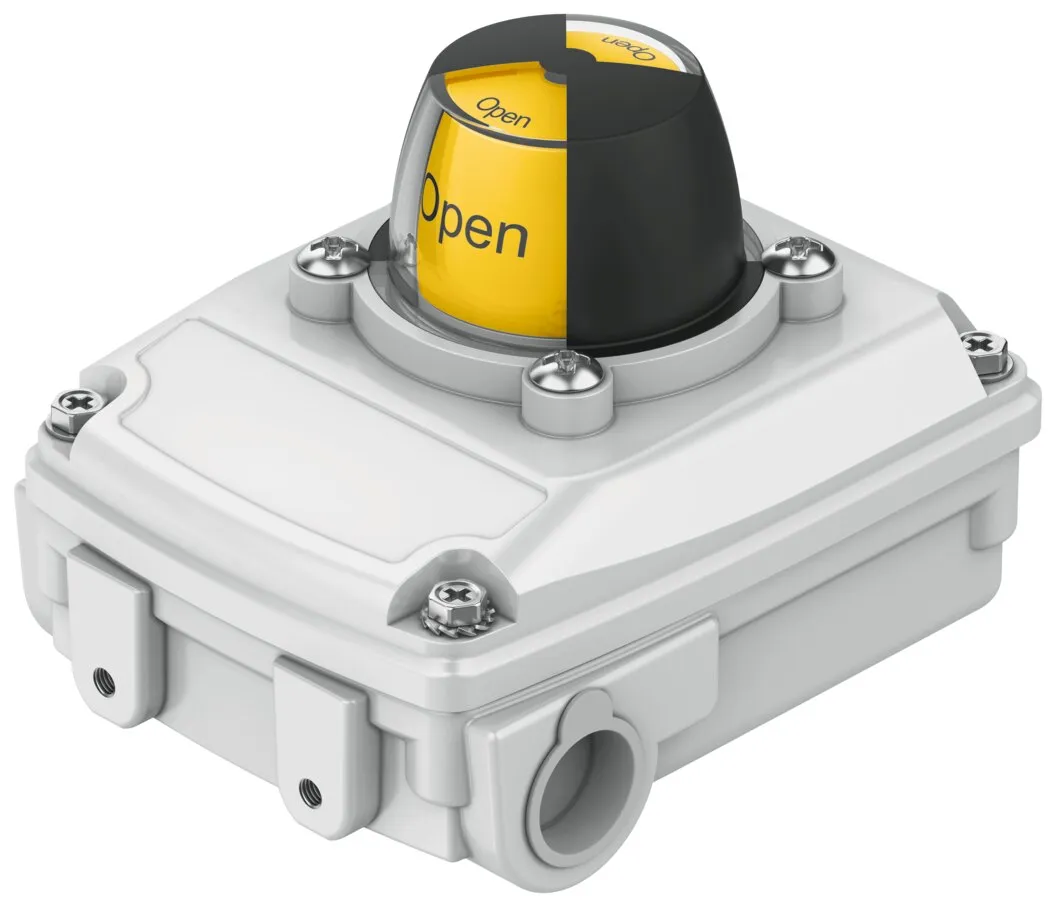

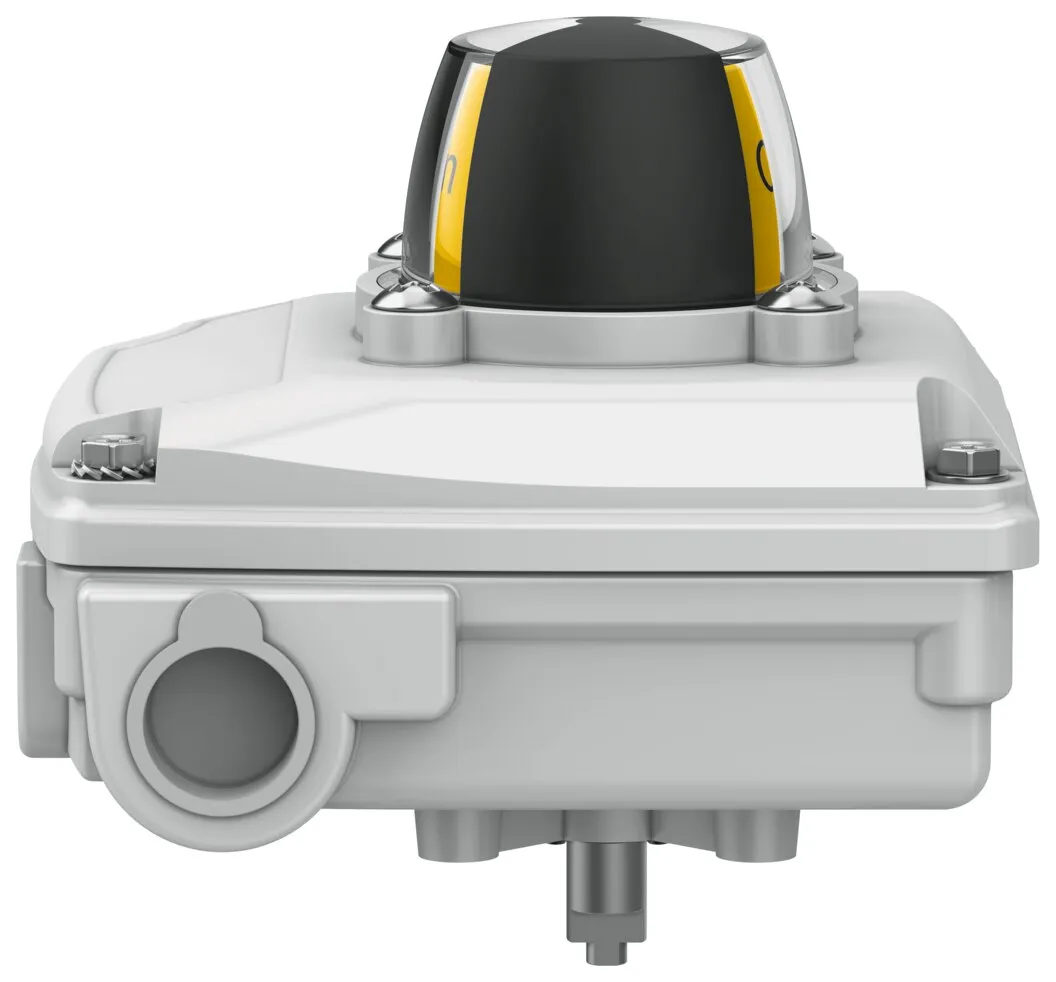

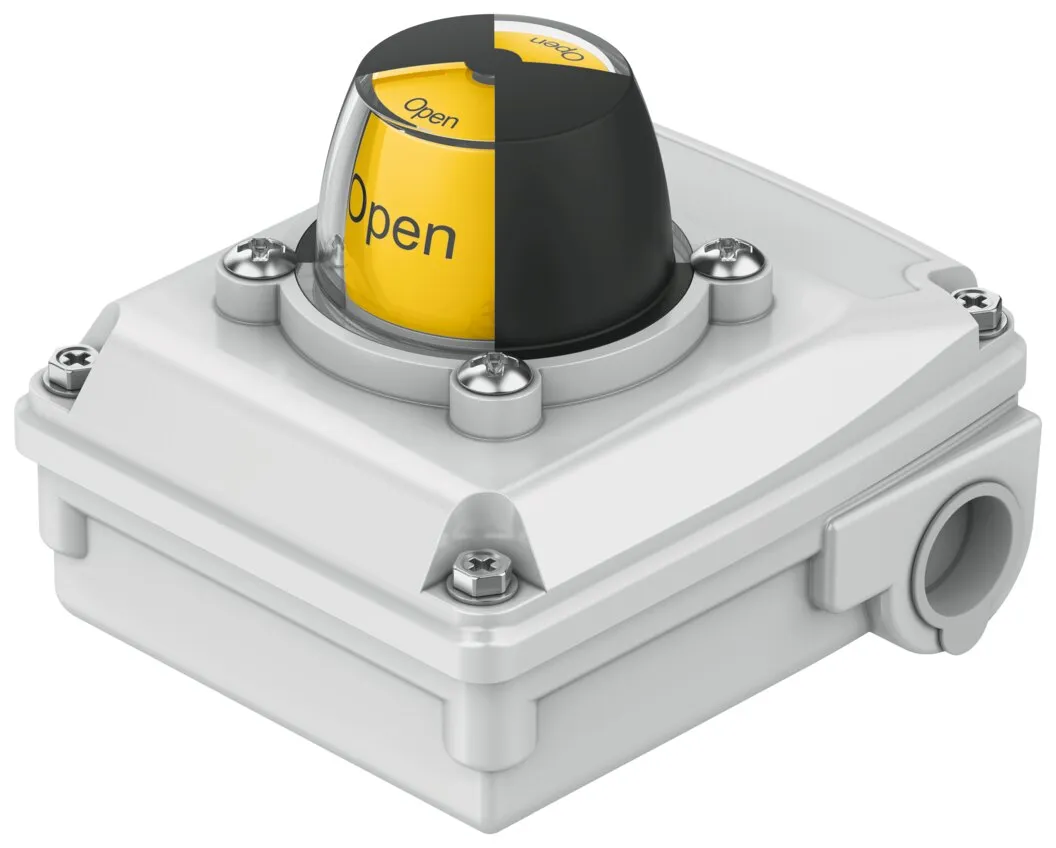

Pre-assembled mounting adapter for ease of installation , The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Approval |
RCM trademark |
|---|---|
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection |
Zone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 1G |
| Explosion Ignition Protection Type For Gas |
Ex ia IIC T6…T1 Ga |
| Atex Category Dust |
II 1D |
| Explosion Ignition Protection Type For Dust |
Ex i IIIC Txx°C Da |
| Explosion Protection Certification Outside The Eu |
EPL Da (CN), EPL Da (GB), EPL Da (IECEx), EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX) |
| Explosion Ambient Temperature |
See ATEX certificate, See IECEx certificate |
| Max. Input Voltage Ui |
16 V |
| Effective Internal Inductivity Li |
100 µH |
| Effective Internal Capacitance Ci |
100 nF |
| Max. Intrinsically Safe Circuit Input Parameter |
See IECEx certificate, See ATEX certificate |
| Certificate Issuing Authority |
Eurocert. SIL202587141, FTZU 17 ATEX 0105X, GYJ20.1409X, IECEx FTZU 17.0017X |
| Note On Materials |
RoHS-compliant |
| Safety Integrity Level (Sil) |
Safety Integrity Level 3 |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-20, 80 °C |
| Switching Output |
NAMUR |
| Switching Element Function |
N/C contact |
| Max. Switching Frequency |
2000 Hz |
| Max. Output Current Dc |
3 mA |
| Off State Current |
0.5 mA |
| Operational Voltage Range Dc |
8.2 V |
| Microswitch Type |
P&F NCB2-V3-N0 |
| Electrical Connection |
Screw terminal |
| Electrical Connection 1, Connection Type |
Terminal strip |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Spring-loaded terminal |
| Electrical Connection 1, Number Of Connections/Cores |
10 |
| Connectable Nominal Cross Section Conductor |
0.25, 2.5 mm² |
| Permissible Cable Diameter |
6, 12 mm |
| Dimensions (W X L X H) |
114 mm x 98 mm x 122 mm |
| Type Of Mounting |
On flange according to ISO 5211 |
| Mounting Position |
optional |
| Product Weight |
800 g |
| Housing Colour |
grey |
| Material Housing |
Die-cast aluminium |
| Material Seals |
NBR |
| Material Shaft |
High-alloy stainless steel |
| Material Screws |
High-alloy stainless steel |
| Material Mounting Bracket |
High-alloy stainless steel |
| Material Snap Ring |
High-alloy stainless steel |
| Material Disc |
High-alloy stainless steel |
| Material Cover Cap |
PC |
| Position Indicator |
Yellow/red |
| Setting Range Of Angular Detection |
90 deg |
| Storage Temperature |
-20, 50 °C |
| Degree Of Protection |
IP67, NEMA 4/4X |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
