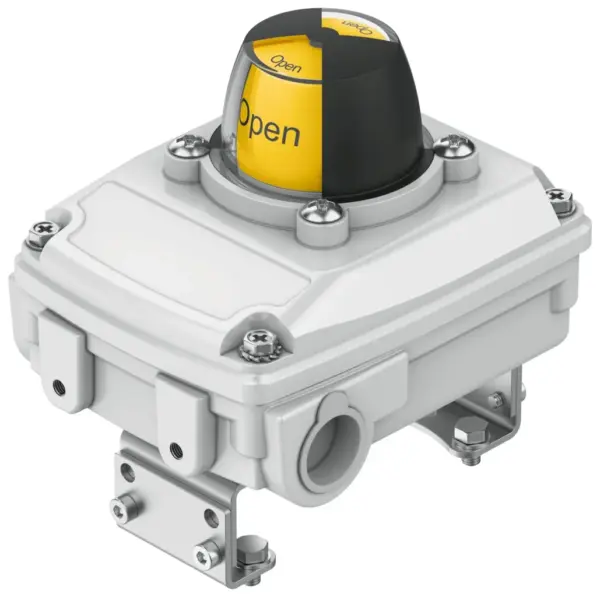

Festo SRBC-CA4-YR90-MW-1-1WG-C2-EX6
Pre-assembled mounting adapter for ease of installation , The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Cle…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

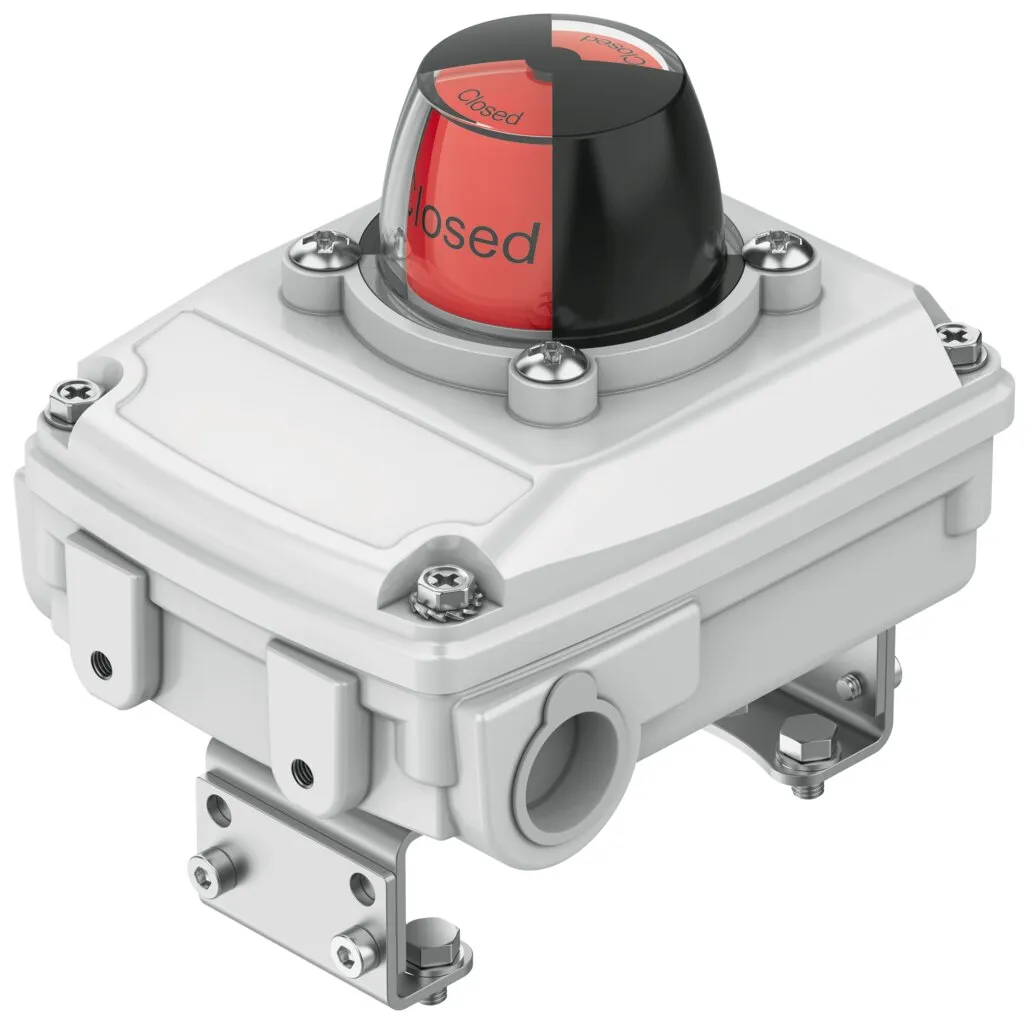

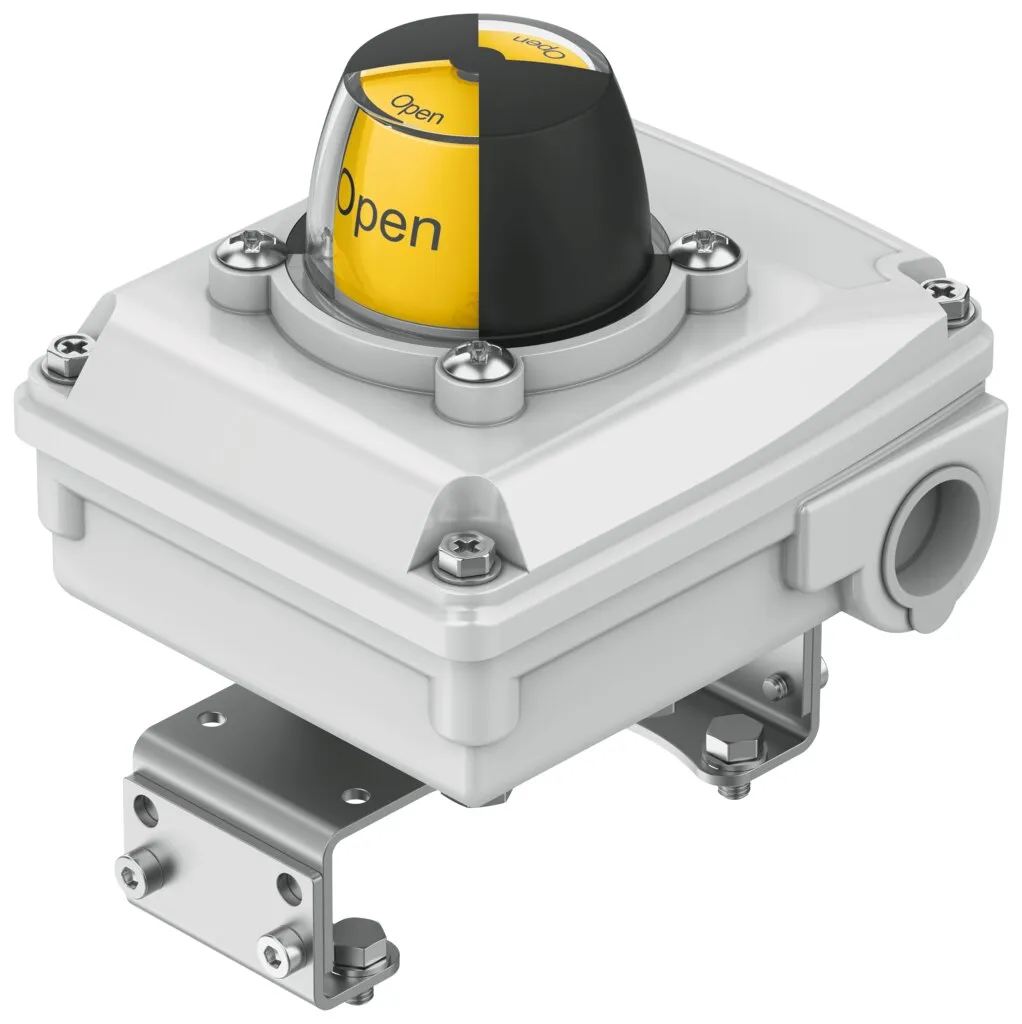

Pre-assembled mounting adapter for ease of installation , The trip cams can be easily set without additional tools , Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions , Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Ce Mark (See Declaration Of Conformity) | To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
|---|---|
| Ukca Marking (See Declaration Of Conformity) | To UK EX instructions, To UK RoHS instructions |
| Explosion Protection | Zone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Atex Category Gas | II 1G |
| Explosion Ignition Protection Type For Gas | Ex ia IIC T6…T1 Ga |
| Atex Category Dust | II 1D |
| Explosion Ignition Protection Type For Dust | Ex i IIIC Txx°C Da |
| Explosion Protection Certification Outside The Eu | EPL Da (CN), EPL Da (GB), EPL Da (IECEx), EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX) |
| Explosion Ambient Temperature | See ATEX certificate, See IECEx certificate |
| Max. Input Voltage Ui | 30Â V |
| Effective Internal Inductivity Li | Negligibly low |
| Effective Internal Capacitance Ci | Negligibly low |
| Max. Intrinsically Safe Circuit Input Parameter | See IECEx certificate, See ATEX certificate |
| Certificate Issuing Authority | Eurocert. SIL202587141, FTZU 17 ATEX 0105X, GYJ20.1409X, IECEx FTZU 17.0017X |
| Note On Materials | RoHS-compliant |
| Safety Integrity Level (Sil) | Safety Integrity Level 3 |
| Measuring Principle | Mechanical/electrical |
| Ambient Temperature | -40, 80 °C |
| Switching Output | Contacting (gold) |
| Switching Element Function | Toggle switch, single-pole |
| Max. Output Current Dc | 100 mA |
| Operational Voltage Range Dc | 30 V |
| Microswitch Type | Omron D2SW-01L1T |
| Electrical Connection | Screw terminal |
| Electrical Connection 1, Connection Type | Terminal strip |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | Spring-loaded terminal |
| Electrical Connection 1, Number Of Connections/Cores | 10 |
| Connectable Nominal Cross Section Conductor | 0.25, 2.5 mm² |
| Permissible Cable Diameter | 6, 12 mm |
| Dimensions (W X L X H) | 127 mm x 98 mm x 122 mm |
| Connection Point For Positioner And Position Sensor Conforms To Standard | VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3 |
| Mounting Position | optional |
| Product Weight | 800 g |
| Housing Colour | grey |
| Material Housing | Die-cast aluminium |
| Material Seals | VMQ (silicone) |
| Material Shaft | High-alloy stainless steel |
| Material Screws | High-alloy stainless steel |
| Material Mounting Bracket | High-alloy stainless steel |
| Material Snap Ring | High-alloy stainless steel |
| Material Disc | High-alloy stainless steel |
| Material Cover Cap | PC |
| Position Indicator | Yellow/red |
| Setting Range Of Angular Detection | 90 deg |
| Storage Temperature | -20, 50 °C |
| Degree Of Protection | IP66 |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Pollution Degree | 3 |
