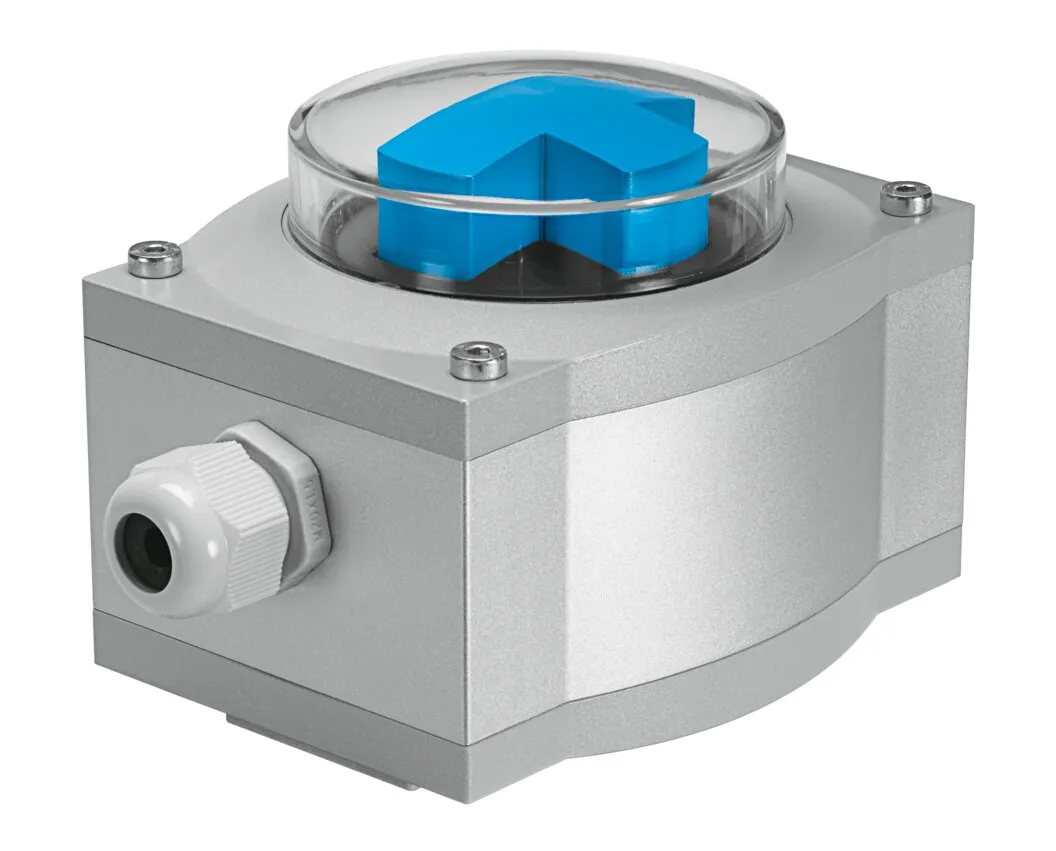

Festo SRAP-M-CA1-YB270-1-A-TP20-EX2
Based on standard VDI/VDE 3845 (NAMUR) , Analogue , For monitoring the position of quarter turn actuators , Sensors based on 2D Hall technology , Variants to EU Explosion Protection Directive (ATEX)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Based on standard VDI/VDE 3845 (NAMUR) , Analogue , For monitoring the position of quarter turn actuators , Sensors based on 2D Hall technology , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
VDI/VDE 3845 (NAMUR) |
| Approval |
RCM trademark, c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection |
Zone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX) |
| Atex Category Gas |
II 3G |
| Explosion Ignition Protection Type For Gas |
Ex ec IIC T5 Gc X |
| Atex Category Dust |
II 3D |
| Explosion Ignition Protection Type For Dust |
Ex tc IIIC T90°C Dc X |
| Explosion Protection Certification Outside The Eu |
EPL Dc (GB), EPL Gc (GB) |
| Explosion Ambient Temperature |
-20 °C <= Ta <= +80 °C |
| Note On Materials |
RoHS-compliant |
| Measured Variable |
Rotation angle |
| Measuring Principle |
Magnetic Hall |
| Ambient Temperature |
-20, 80 °C |
| Analogue Output |
4 – 20 mA |
| Repetition Accuracy Analogue Output In ± ° |
1 deg |
| Short Circuit Current Rating |
yes |
| Overload Protection |
Available |
| Operational Voltage Range Dc |
15, 30 V |
| No Load Supply Current |
12, 20 mA |
| Reverse Polarity Protection |
For all electrical connections |
| Electrical Connection |
9-pin, Screw terminal, Plug-in |
| Connectable Nominal Cross Section Conductor |
2.5 mm² |
| Cable Fitting |
M20 |
| Permissible Cable Diameter |
5, 13 mm |
| Max. Cable Length |
30 m |
| Mounting Position |
optional |
| Product Weight |
1000 g |
| Material Housing |
Wrought aluminium alloy |
| Position Indicator |
Yellow/black |
| Setting Options |
Teach-in, Teach-in via electrical connection |
| Setting Range Of Angular Detection |
270 deg |
| Degree Of Protection |
IP65 |
| Insulation Voltage |
50 V |
| Immunity To Surge |
0.8 kV |
| Protection Class |
III |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Pollution Degree |
3 |
