Festo SNCS-100-R3

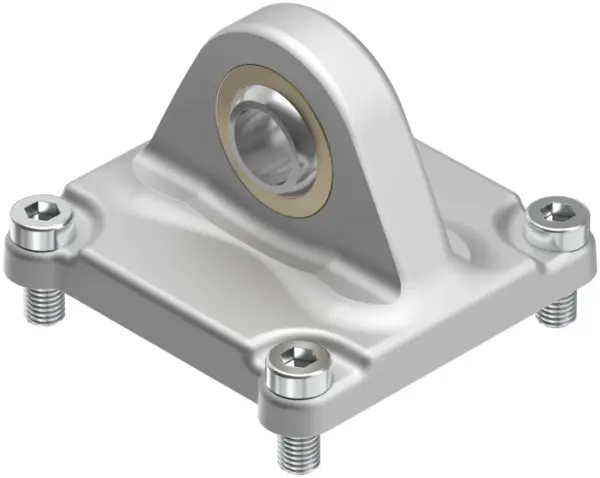

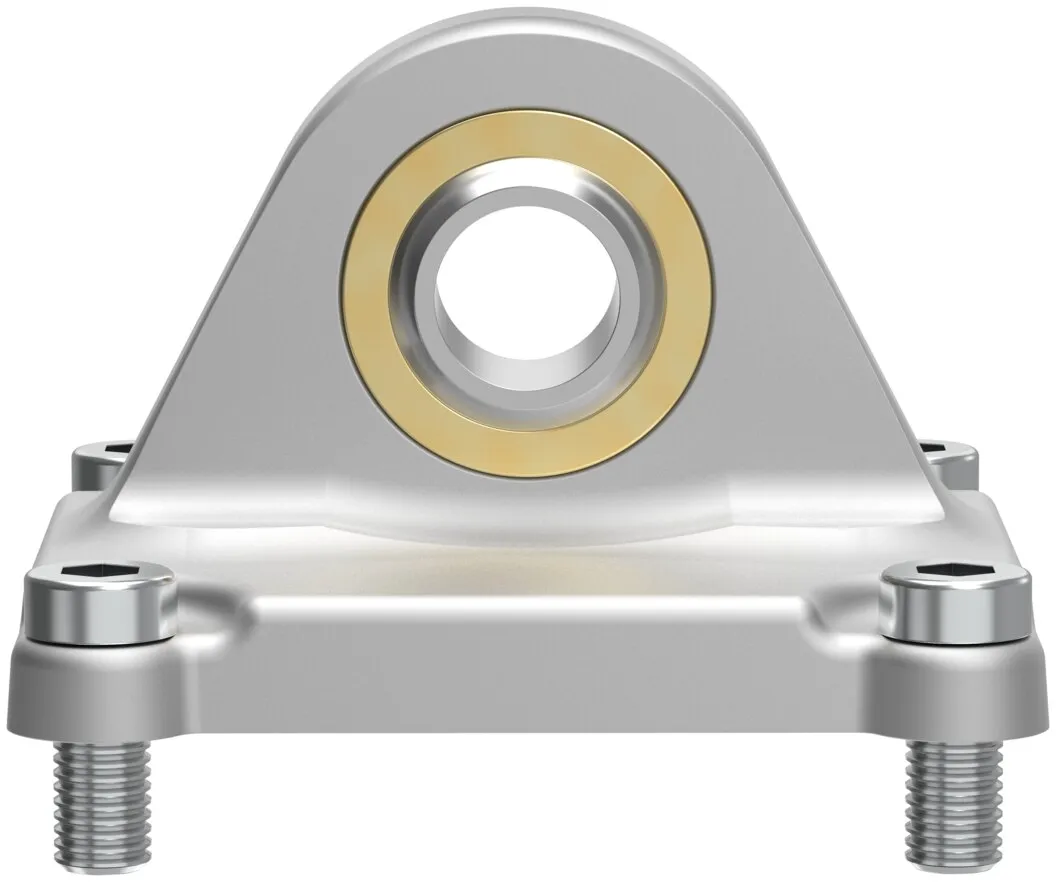

Swivel flange-SNCS-100-R3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 100 |
|---|---|
| Based On Standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Variants | High corrosion protection |
| Corrosion Resistance Class Crc | 3 – high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Suitability For The Production Of Li Ion Batteries | Metals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils Metals with more than 1% of copper as an alloy component are excluded from use. Exceptions are printed ci |
| Ambient Temperature | -40, 150 °C |
| Max. Load Capacity | 9 kN |
| Product Weight | 684 g |
| Note On Materials | RoHS-compliant |
| Material Mounting | Wrought aluminium alloy, With protective coating |
| Material Rod End Bearing | PTFE, Stainless steel |
| Material Screws | High-alloy stainless steel |
