Festo SNCB-40-R3

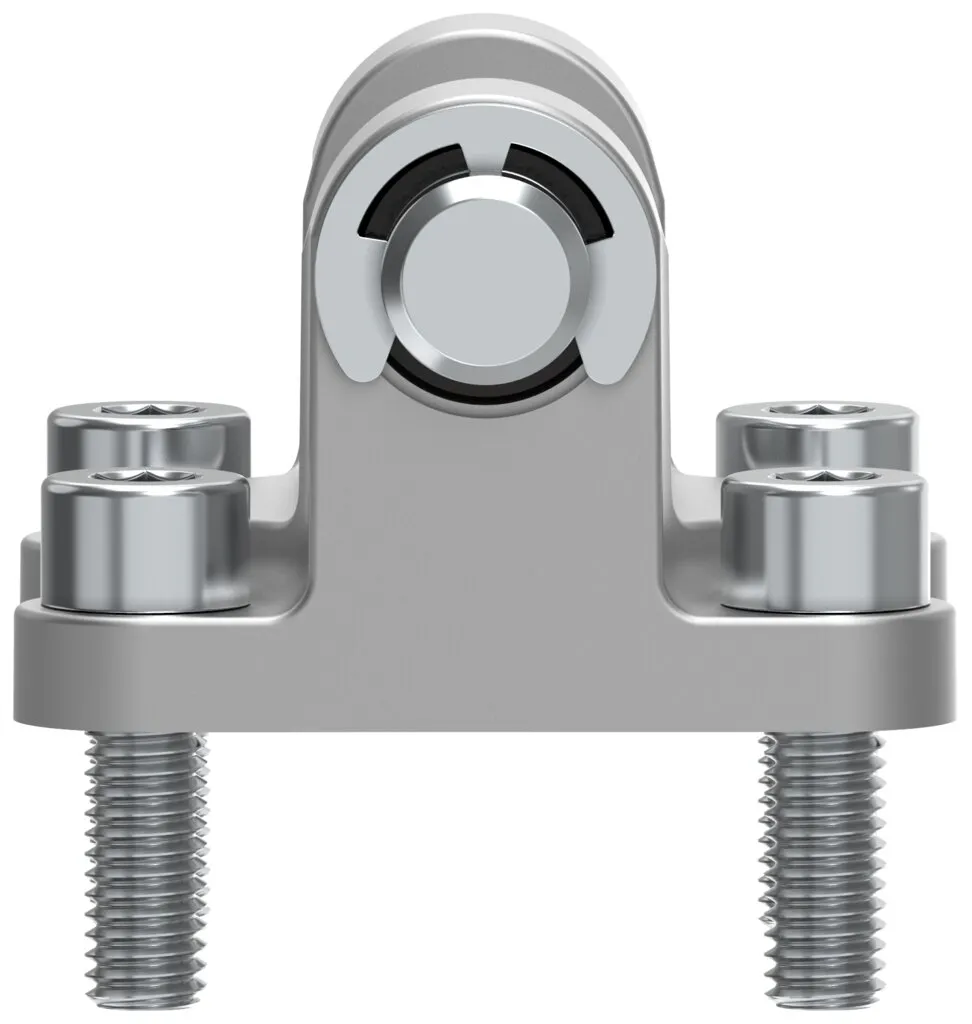

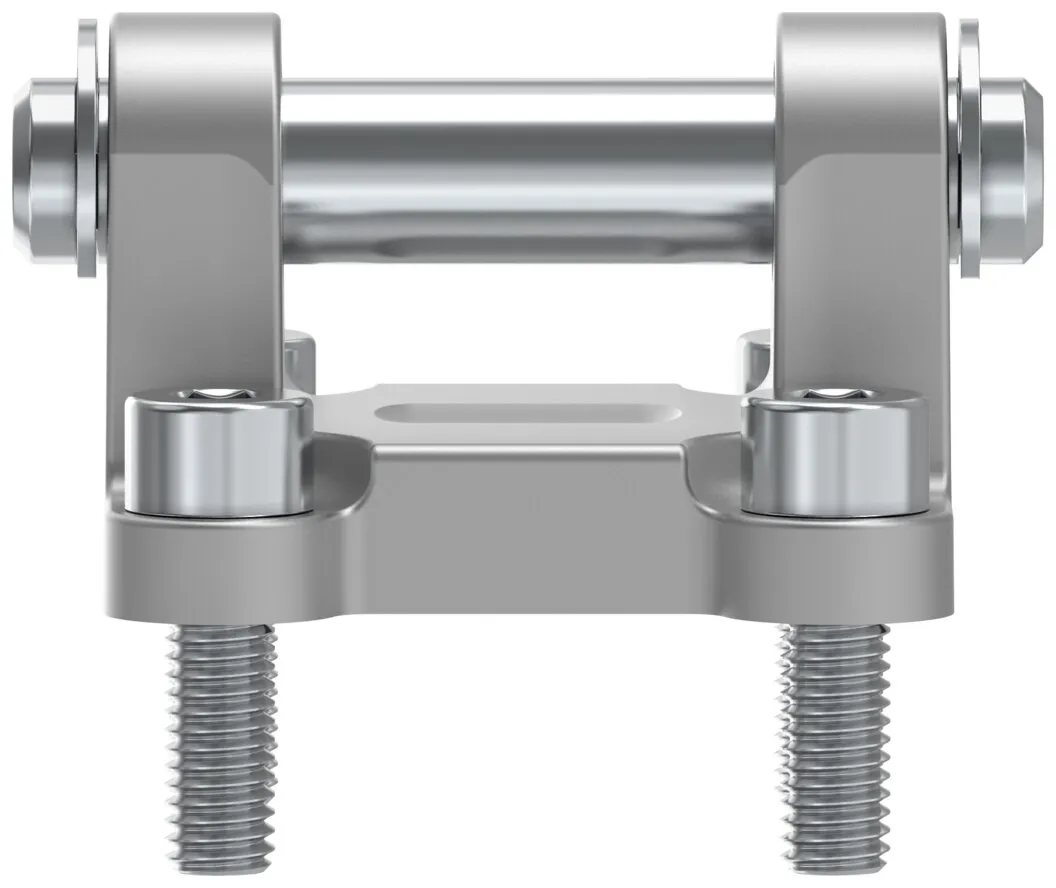

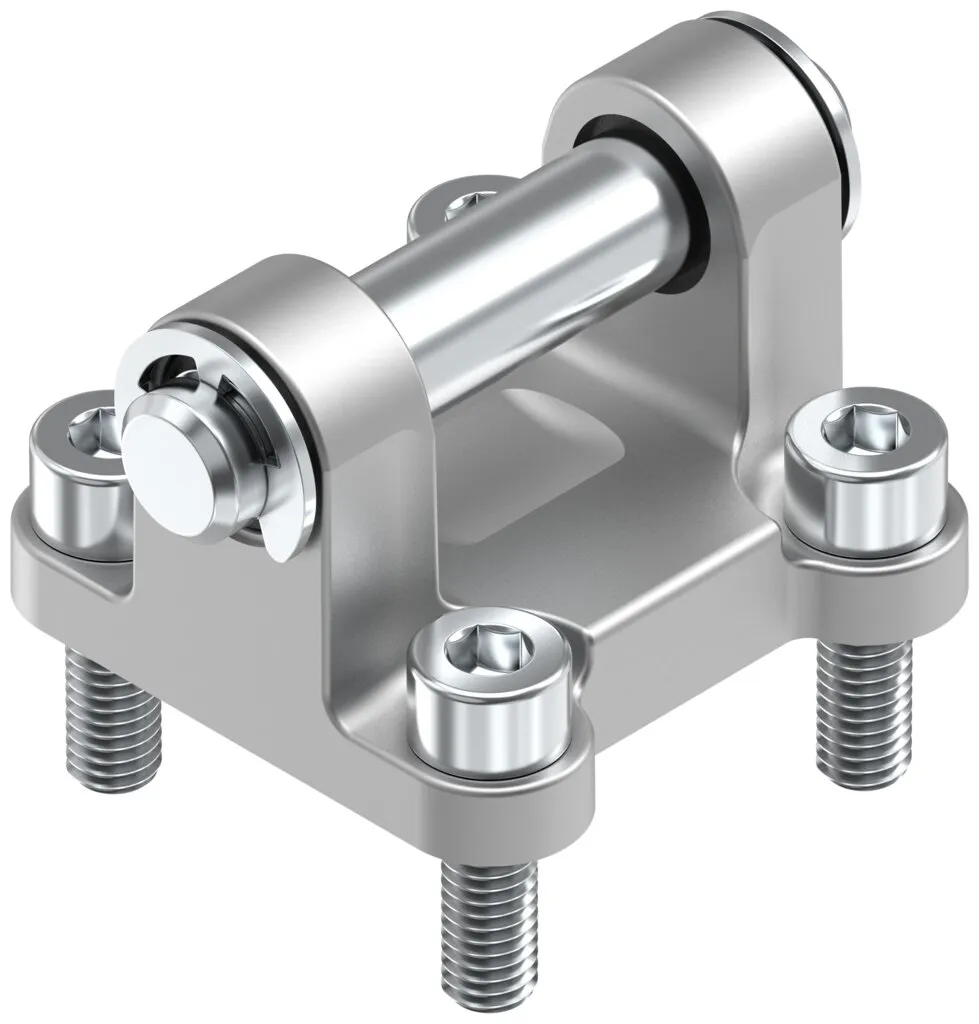

Swivel flange-SNCB-40-R3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size |
40 |
|---|---|
| Based On Standard |
ISO 15552 |
| Variants |
High corrosion protection |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitability For The Production Of Li Ion Batteries |
Metals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils Metals with more than 1% of copper as an alloy component are excluded from use. Exceptions are printed ci |
| Ambient Temperature |
-40, 90 °C |
| Max. Load Capacity |
1.5 kN |
| Product Weight |
151 g |
| Note On Materials |
RoHS-compliant |
| Material Mounting |
Die-cast aluminium, With protective coating |
| Material Bolt |
High-alloy stainless steel |
| Material Bearing |
Polymer |
| Material Disc |
Galvanised steel |
| Material Screws |
High-alloy stainless steel |
| Material Lock |
Spring steel, galvanised |
