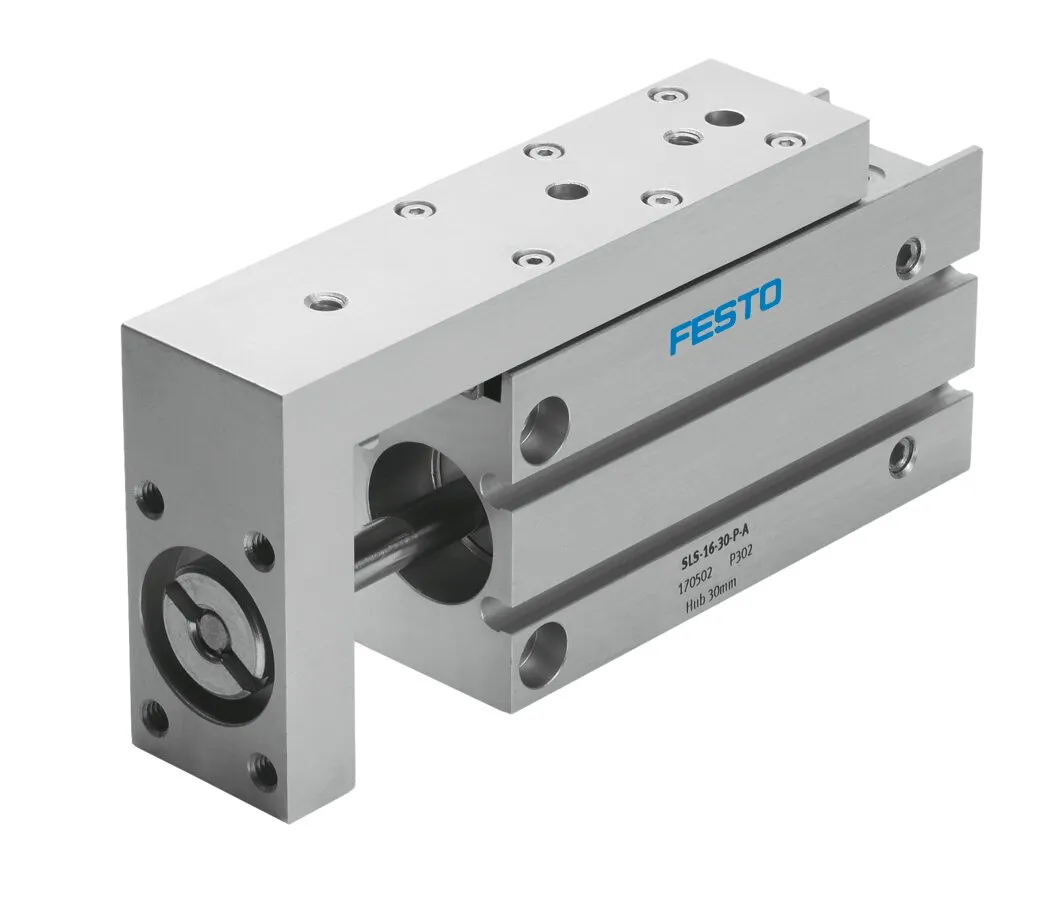

Festo SLS-16-20-P-A
Slim design , Ball bearing cage guide , Versatile mounting options
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Slim design , Ball bearing cage guide , Versatile mounting options
Specification
| Stroke | 20 mm |
|---|---|
| Piston Diameter | 16 mm |
| Operating Mode, Drive Unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting Position | optional |
| Guide | Ball bearing cage guide |
| Design | Yoke, Piston, Piston rod, Ball roller guide, Slide |
| Position Detection | Via proximity switch |
| Symbol | 00991737 |
| Operating Pressure | 14.5, 145 psi |
| Mode Of Operation | Double-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | -20, 60 °C |
| Impact Energy In End Positions | 0.15 J |
| Max. Force Fy | 370 N |
| Max. Force Fz | 370 N |
| Max. Moment Mx | 1.7 Nm |
| Max. Moment My | 1.7 Nm |
| Max. Moment Mz | 1.3 Nm |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke | 104 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke | 121 N |
| Moving Mass | 101 g |
| Product Weight | 257 g |
| Alternative Connections | See product drawing |
| Type Of Mounting | With through-hole |
| Pneumatic Connection | M5 |
| Note On Materials | RoHS-compliant |
| Material Cover | Anodised wrought aluminium alloy |
| Material Guide | Steel |
| Material Housing | High-alloy stainless steel |
