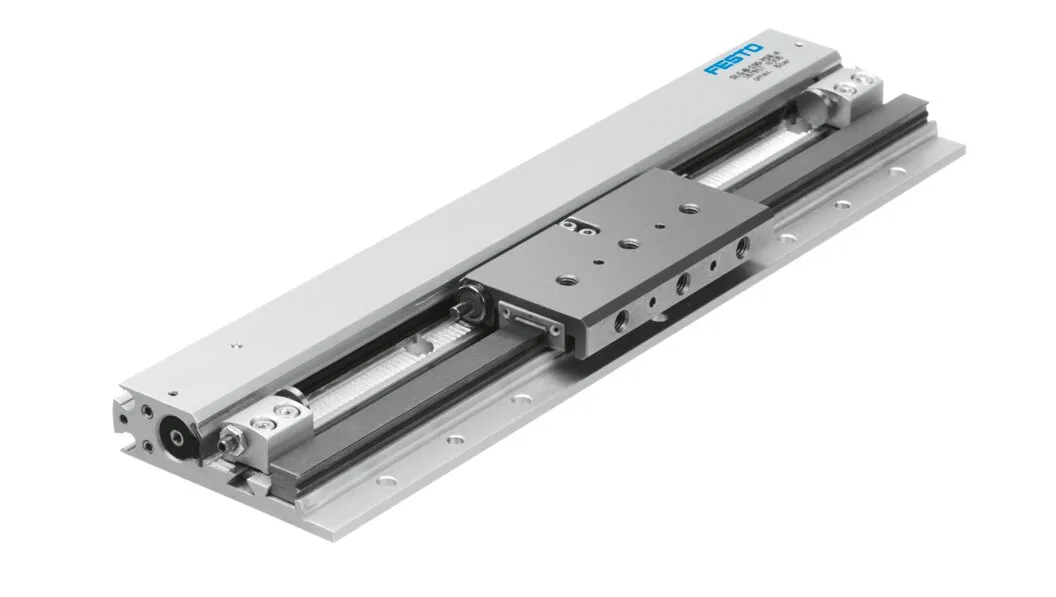

Festo SLG-12- –
Extremely flat design , Highest precision thanks to integrated recirculating ball bearing guide , Adjustable end stops , Wide range of supply ports , Available with intermediate position module
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely flat design , Highest precision thanks to integrated recirculating ball bearing guide , Adjustable end stops , Wide range of supply ports , Available with intermediate position module
Specification
| Stroke |
100, 700 mm |
|---|---|
| Piston Diameter |
12 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends, Shock absorber, hard characteristic curve |
| Mounting Position |
optional |
| Guide |
Recirculating ball bearing guide |
| Max. Number Of Intermediate Positions |
4 |
| Coupling Design |
Positive-locking (slot) |
| Position Detection |
Via proximity switch |
| Variants |
Pulling |
| Operating Pressure |
2, 8 bar |
| Mode Of Operation |
Double-acting |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-10, 60 °C |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke |
68 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
68 N |
| Additional Moving Mass Per 10 Mm Stroke |
18 g |
| Alternative Connections |
See product drawing |
| Pneumatic Connection |
M3 |
| Material Cover |
POM |
| Material Seals |
TPE-U(PU) |
| Material Housing |
Anodised |
