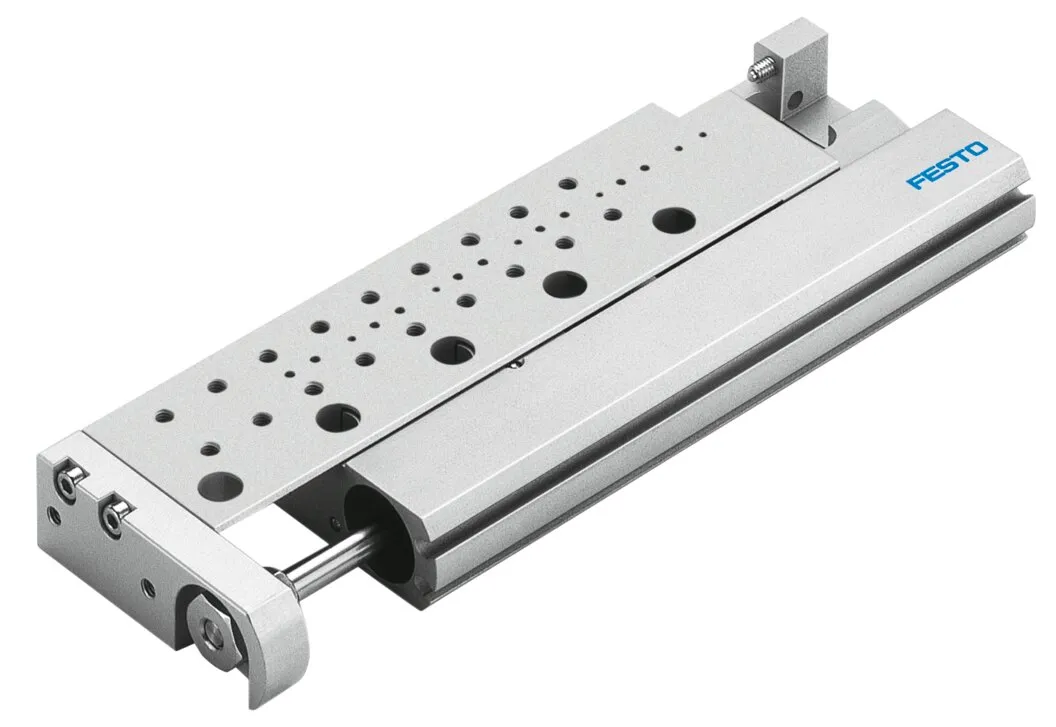

Festo SLF-10-10-P-A
Flat design , Ball bearing cage guide , Versatile mounting options , Easy adjustment of end positions
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flat design , Ball bearing cage guide , Versatile mounting options , Easy adjustment of end positions
Specification
| Stroke |
10 mm |
|---|---|
| Adjustable End Position Range/Length |
5 mm |
| Piston Diameter |
10 mm |
| Operating Mode, Drive Unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting Position |
optional |
| Guide |
Ball bearing cage guide |
| Design |
Yoke, Piston, Piston rod, Ball roller guide, Slide |
| Position Detection |
Via proximity switch |
| Symbol |
00991737 |
| Operating Pressure |
14.5, 145 psi |
| Mode Of Operation |
Double-acting |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-20, 60 °C |
| Impact Energy In End Positions |
0.05 J |
| Max. Force Fy |
170 N |
| Max. Force Fz |
170 N |
| Max. Moment Mx |
0.6 Nm |
| Max. Moment My |
0.6 Nm |
| Max. Moment Mz |
0.5 Nm |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke |
40 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
47 N |
| Moving Mass |
41 g |
| Product Weight |
135 g |
| Basic Weight For Mm Stroke |
135 g |
| Alternative Connections |
See product drawing |
| Type Of Mounting |
With through-hole |
| Pneumatic Connection |
M5 |
| Note On Materials |
RoHS-compliant |
| Material Cover |
Wrought aluminium alloy |
| Material Seals |
HNBR |
| Material Housing |
Wrought aluminium alloy |
| Material Piston Rod |
High-alloy stainless steel |
