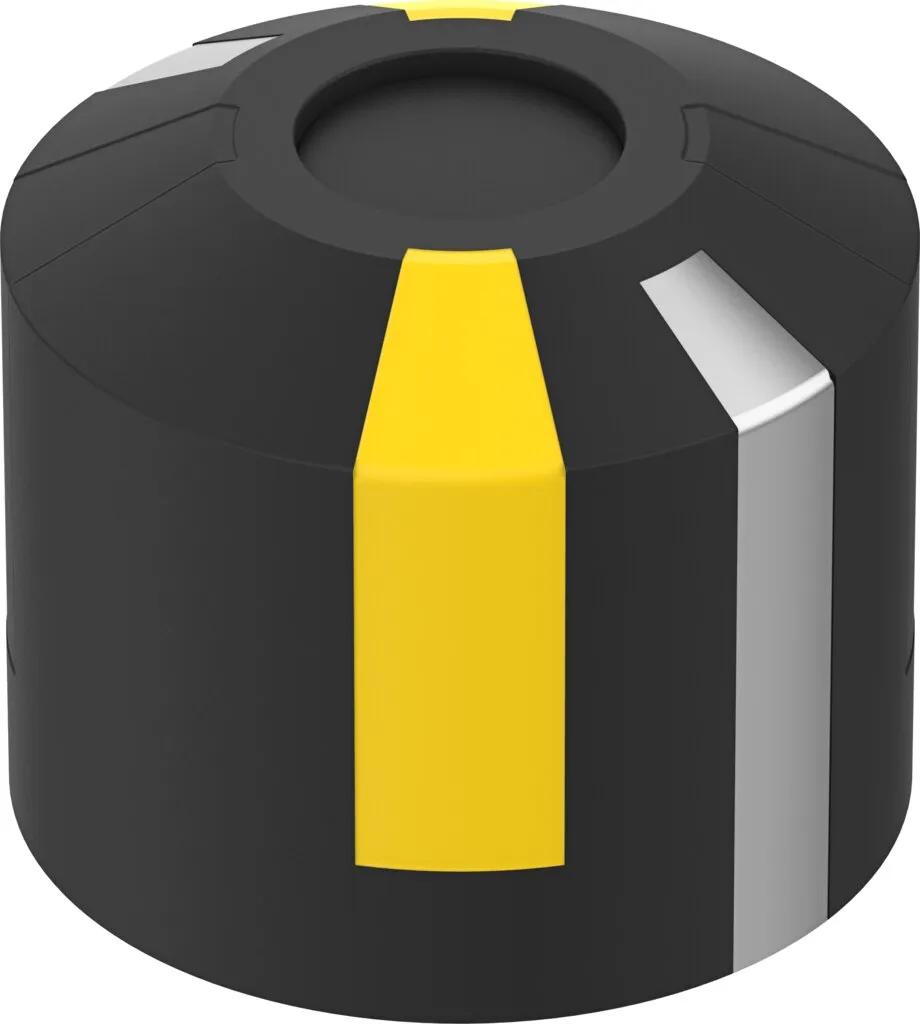

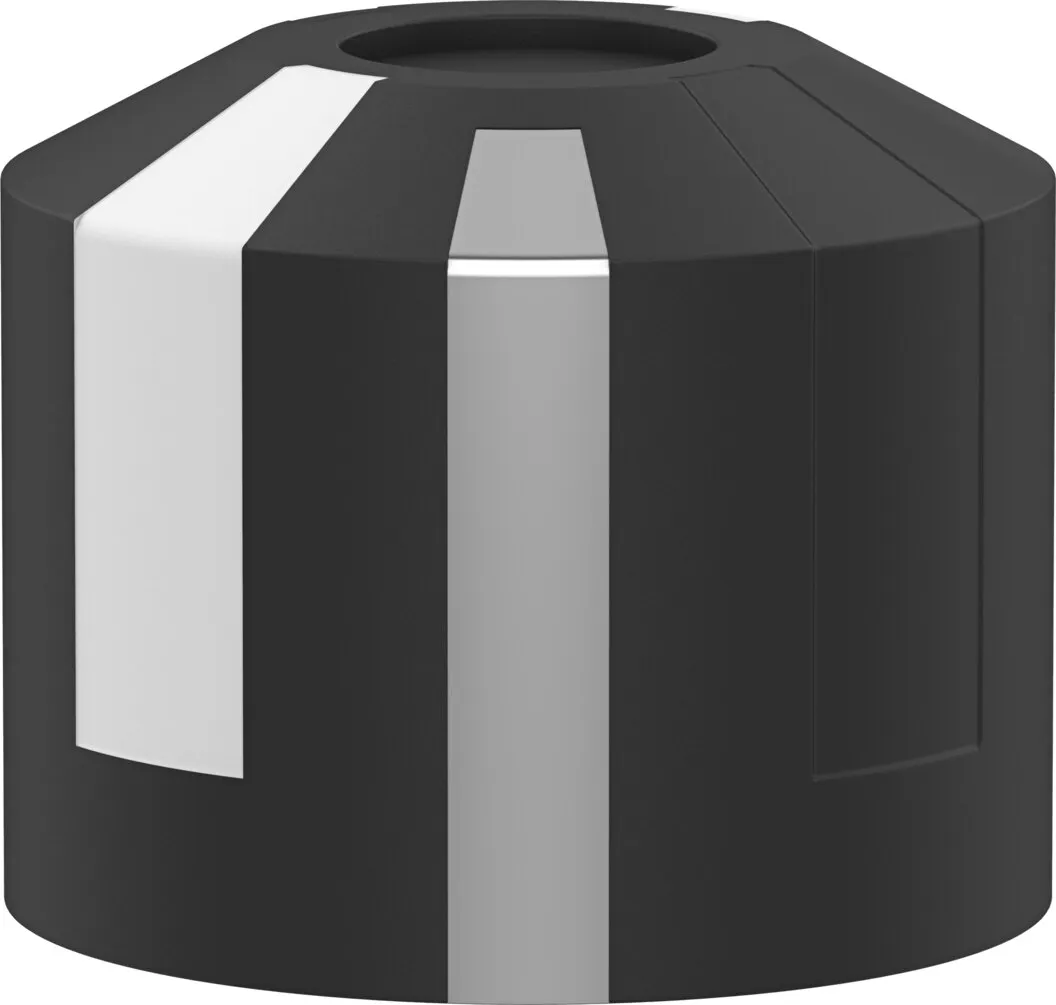

Festo SASF-S3-B-F-A20
For limit switch attachments SRBG, SRBI, SRBC , Variants for mounting on drive shafts of standard drives according to VDI/VDE 3845 , Variants with adjustable swivel angle , Variants for clockwise and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For limit switch attachments SRBG, SRBI, SRBC , Variants for mounting on drive shafts of standard drives according to VDI/VDE 3845 , Variants with adjustable swivel angle , Variants for clockwise and anticlockwise rotating actuators with 90° and 180° rotation , Variants with position indicator in yellow/red, I-, T-, L-design or with 180° arrow
Specification
| Rotation Angle Adjustment Range |
180 deg |
|---|---|
| Connection Point For Positioner And Position Sensor Conforms To Standard |
VDI/VDE 3845 size AA 1 |
| Dimensions (W X L X H) |
Ø 40 x 32 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Ambient Temperature |
-25, 70 °C |
| Product Weight |
24 g |
| Type Of Mounting |
To VDI/VDE 3845 |
| Housing Colour |
Black |
| Note On Materials |
RoHS-compliant |
| Material Spacer |
PP |
| Material Housing |
PP, High-alloy stainless steel |
| Material Screws |
High-alloy stainless steel |
