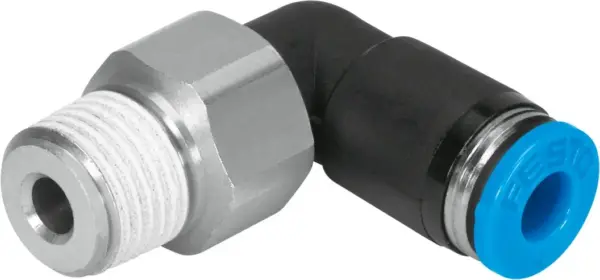

Festo QSRL-1/8-8
Push-in fitting, rotatable with swivel connection, rotatable by 360° with max. 500 rpm , Compact installation space , Straight shape, L-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push-in fitting, rotatable with swivel connection, rotatable by 360° with max. 500 rpm , Compact installation space , Straight shape, L-shape
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
4.6 mm |
| Type Of Seal On Screwed Plug |
Coating |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
1 |
| Operating Pressure Complete Temperature Range |
-13.775, 87 psi |
| Temperature Dependent Operating Pressure |
-13.775, 203 psi |
| Max. Rotational Speed |
400 1/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
60 °C |
| Max. Radial Torque |
0.015 Nm |
| Nominal Torque |
7 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
33 g |
| Type Of Mounting |
External hexagon, size 17 mm |
| Pneumatic Connection, Port 1 |
Male thread R1/8 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 8 mm |
| Colour Of Release Ring |
Blue |
| Material Screwed Plug |
Nickel-plated brass |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PBT |
| Material Release Ring |
POM |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
High-alloy stainless steel |
