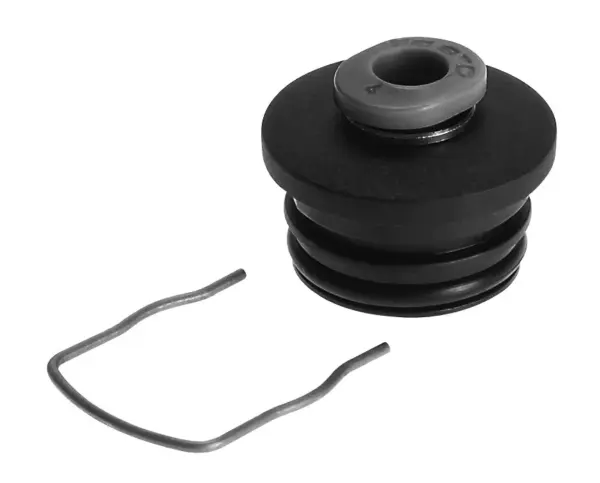

Festo QSPK18-1/4-U
Compact installation space , Threadless mounting , Straight shape, L-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact installation space , Threadless mounting , Straight shape, L-shape
Specification
| Size |
Mini |
|---|---|
| Nominal Size |
3.8 mm |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 145 psi |
| Maritime Classification |
See certificate |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
23, 140 °F |
| Product Weight |
2.9 g |
| Type Of Mounting |
Mounting pin |
| Pneumatic Connection, Port 1 |
Cartridge 18 mm |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 1/4" |
| Colour Of Release Ring |
grey |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA-reinforced |
| Material Release Ring |
POM |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
High-alloy stainless steel |
