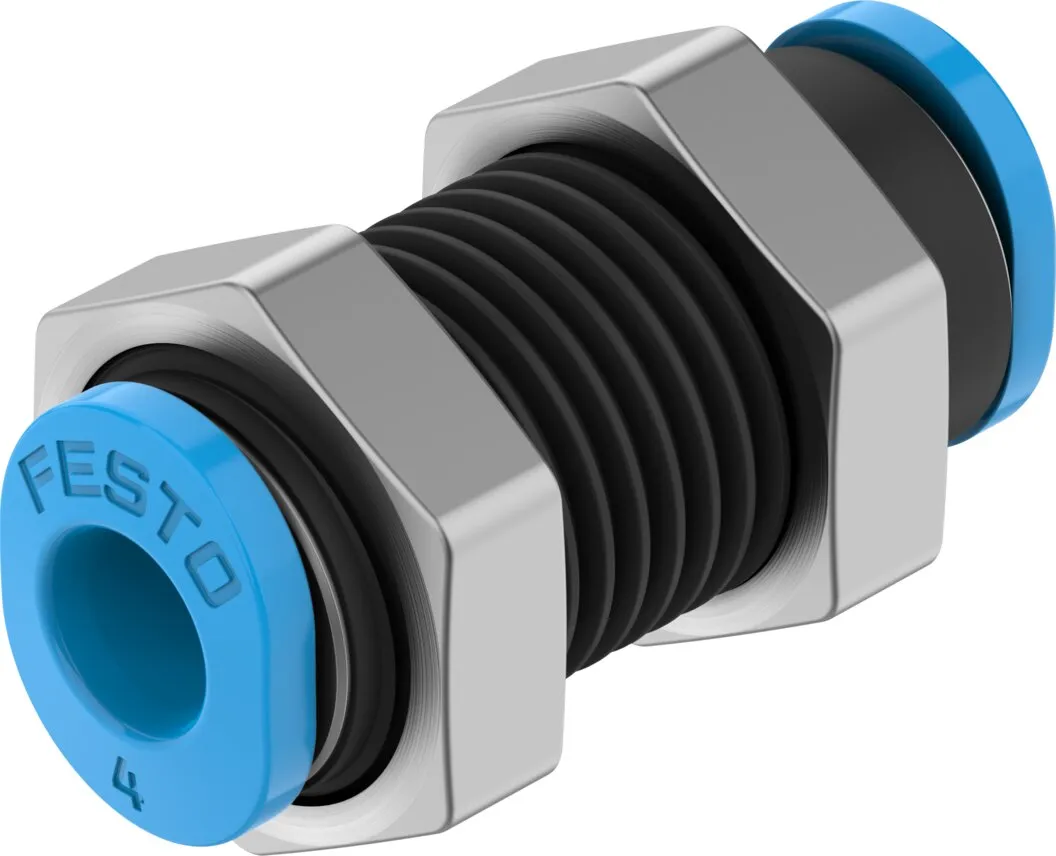

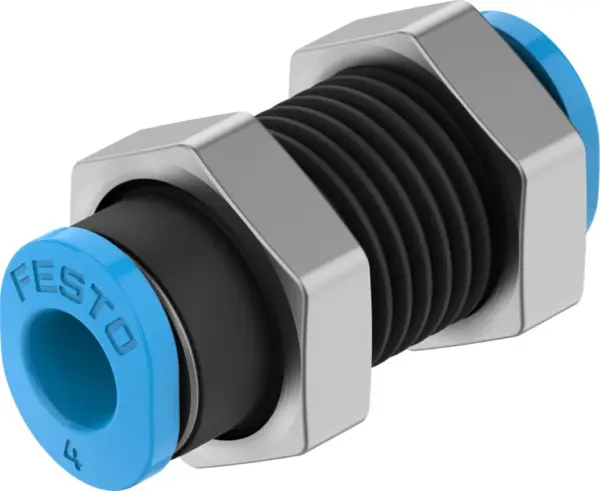

Festo QSMS-4-100
Mini series , Compact for maximum component density in confined installation spaces , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, X-shape…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mini series , Compact for maximum component density in confined installation spaces , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, X-shape, Y-shape, push-in bulkhead connector
Specification
| Size | Mini |
|---|---|
| Nominal Size | 2.2 mm |
| Mounting Position | optional |
| Design | Push-pull principle |
| Size Of Pack | 100 |
| Operating Pressure Complete Temperature Range | -13.775, 87 psi |
| Temperature Dependent Operating Pressure | -13.775, 203 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -10, 80 °C |
| Product Weight | 6 g |
| Pneumatic Connection, Port 1 | For tubing outer diameter of 4 mm |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 4 mm |
| Colour Of Release Ring | Blue |
| Note On Materials | RoHS-compliant |
| Material Housing | Anodised aluminium |
| Material Release Ring | POM |
| Material Nut | Nickel-plated brass |
| Material Tubing Seal | NBR |
| Material Tubing Clamp Component | High-alloy stainless steel |
