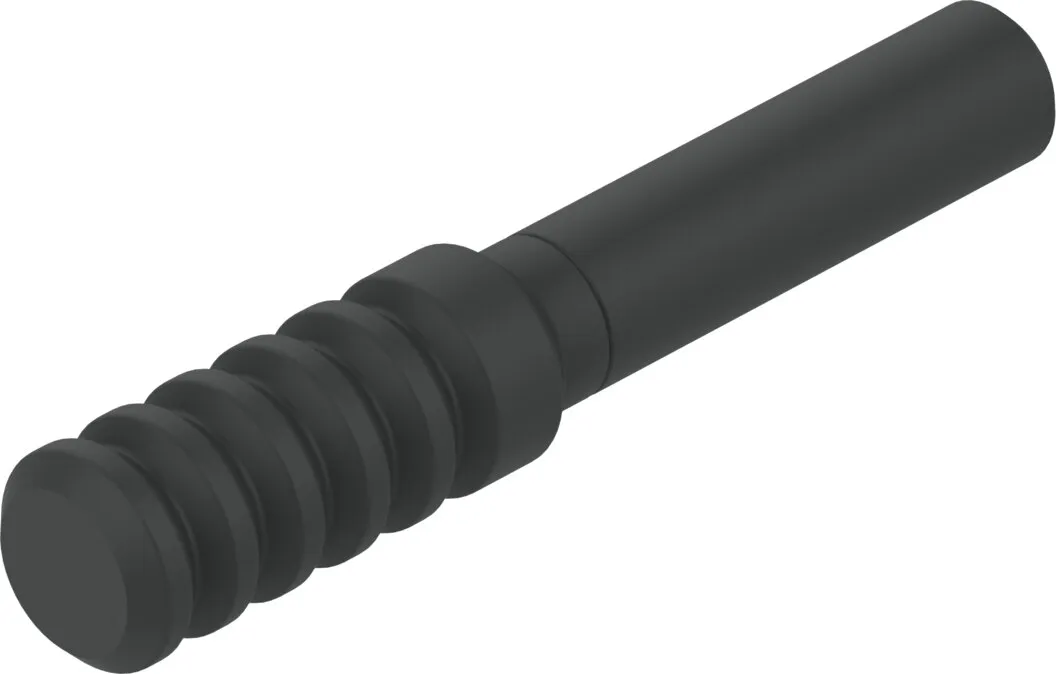

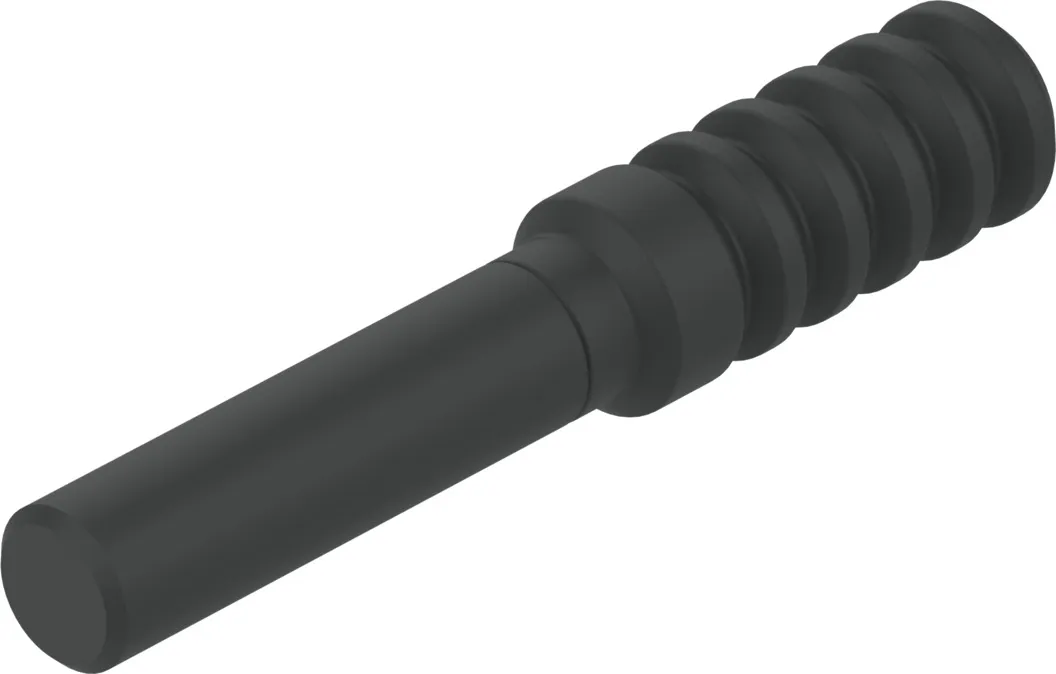

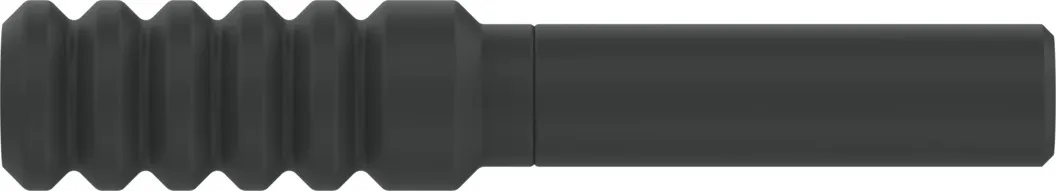

Festo QSMC-3H
Mini series , Compact for maximum component density in confined installation spaces , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, X-shape…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mini series , Compact for maximum component density in confined installation spaces , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, X-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Mini |
|---|---|
| Mounting Position |
optional |
| Design |
Blanking plug |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 87 psi |
| Temperature Dependent Operating Pressure |
-13.775, 203 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 80 °C |
| Product Weight |
0.2 g |
| Pneumatic Connection, Port 1 |
Push-in sleeve Ø 3 mm |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PBT |
