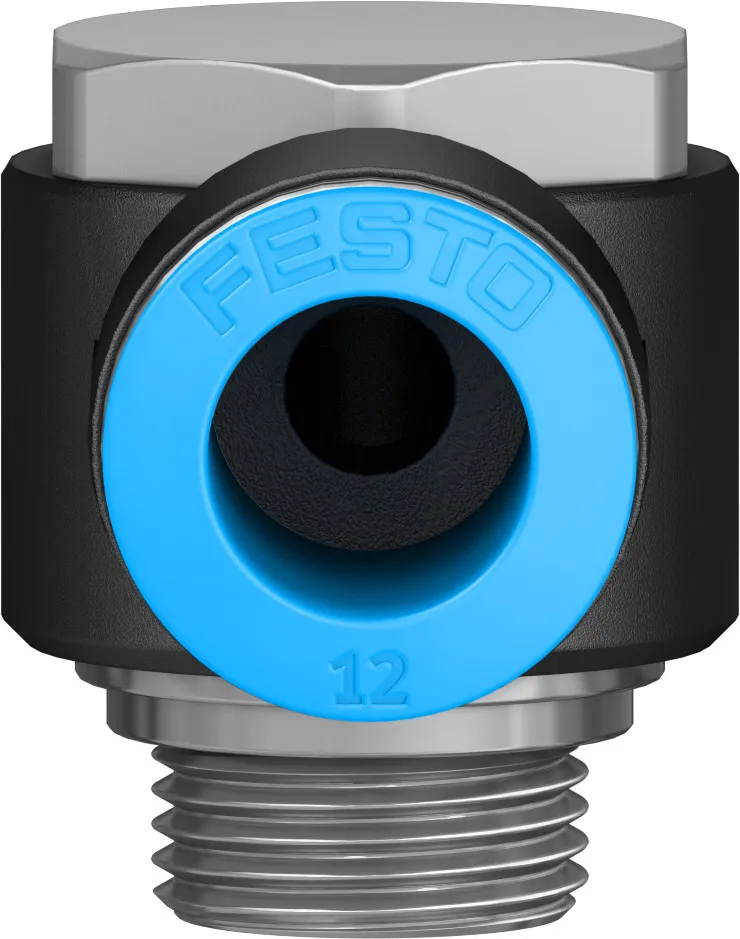

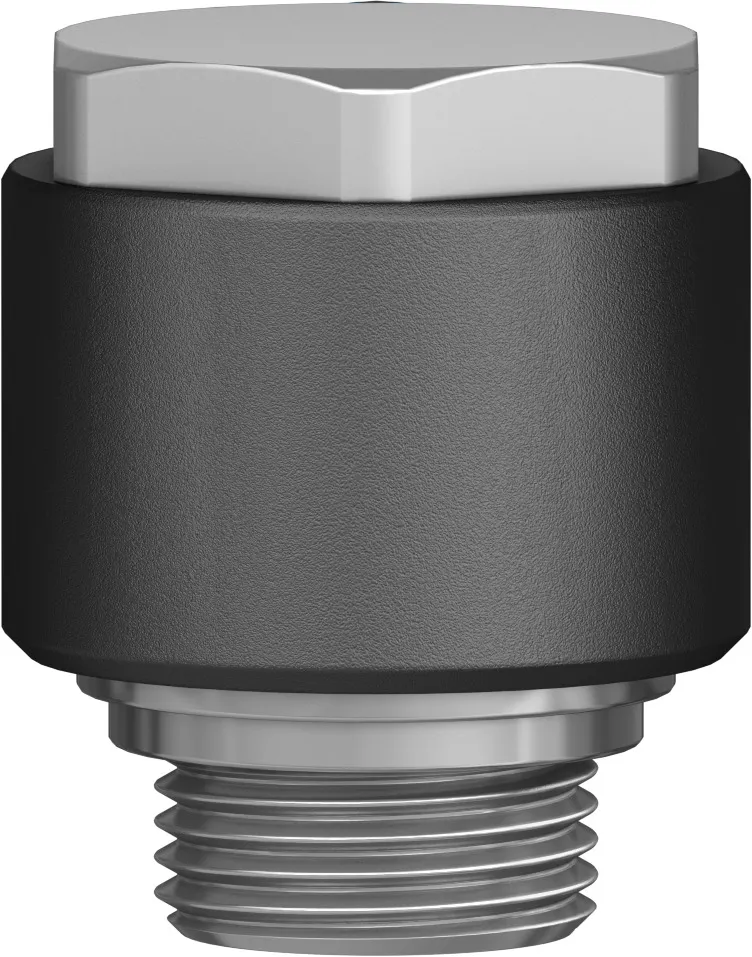

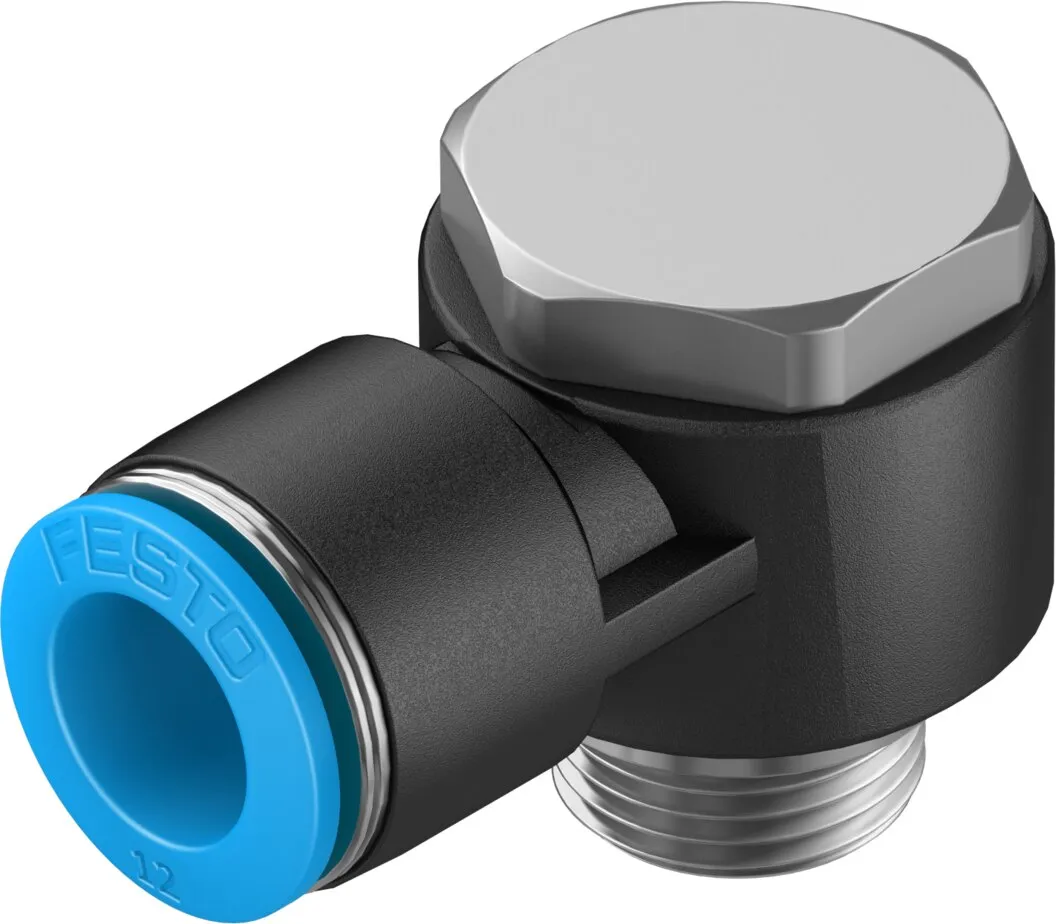

Festo QSLV-G3/8-12
Standard series , Wide range of variants: wide selection for maximum flexibility in standard applications , PBT and nickel-plated brass , Operating media compressed air, vacuum, water. Water as per th…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Standard series , Wide range of variants: wide selection for maximum flexibility in standard applications , PBT and nickel-plated brass , Operating media compressed air, vacuum, water. Water as per the manufacturer’s declaration, see www.festo.com/certificates/QS , Straight shape, L-shape, T-shape, at 45° angle, X-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
8.7 mm |
| Type Of Seal On Screwed Plug |
Sealing ring |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 87 psi |
| Temperature Dependent Operating Pressure |
-13.775, 203 psi |
| Note On Operating Pressure |
Water: max. 0.6 MPa at max. 50°C |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note On Operating And Pilot Medium |
Lubricated operation possible, Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Cleanroom Class |
Class 4 according to ISO 14644-1 |
| Ambient Temperature |
-10, 80 °C |
| Nominal Torque |
15.5 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
77 g |
| Type Of Mounting |
Hollow bolt with external hex |
| Pneumatic Connection, Port 1 |
Male thread G3/8 |
| Pneumatic Connection, Port 2 |
For tubing outer diameter of 12 mm |
| Colour Of Release Ring |
Blue |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PBT |
| Material Hollow Bolt |
Nickel-plated brass |
| Material Release Ring |
POM |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
High-alloy stainless steel |
