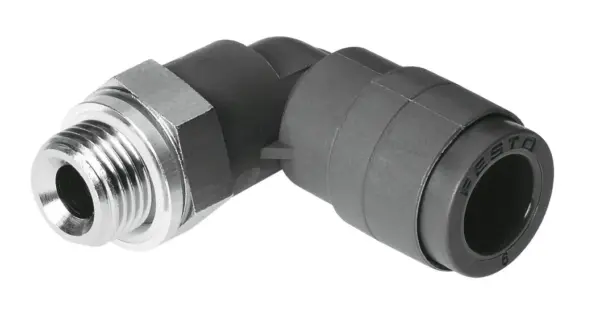

Festo QSL-V0-G1/8-8
PBT, reinforced , Resistant to welding spatter , For use in all areas where there is a risk of fire , Reliable even for applications in close proximity to welding spatter , Operating medium: compresse…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PBT, reinforced , Resistant to welding spatter , For use in all areas where there is a risk of fire , Reliable even for applications in close proximity to welding spatter , Operating medium: compressed air, vacuum, water , Straight design, L-shaped, T-shaped
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
6 mm |
| Fire Test Material |
UL94 V-0 (housing), UL94 V-0 (releasing ring) |
| Type Of Seal On Screwed Plug |
Sealing ring |
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 145 psi |
| Note On Operating Pressure |
Water: max. 0.6 MPa at max. 50°C |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
60 °C |
| Nominal Torque |
7 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
16 g |
| Type Of Mounting |
External hexagon, A/F 13 mm |
| Pneumatic Connection, Port 1 |
Male thread G1/8 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 8 mm |
| Colour Of Release Ring |
Black |
| Material Screwed Plug |
Nickel-plated brass |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PBT |
| Material Thread Seal |
Aluminium, PBT |
| Material Release Ring |
PBT |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
High-alloy stainless steel, Brass |
