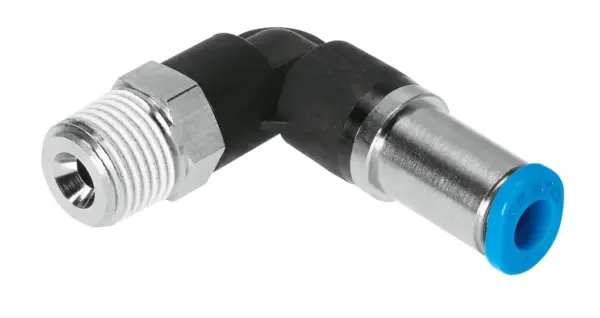

Festo QSKL-3/8-10
Standard series , Self-sealing push-in fitting blocks the air flow after the tubing is disconnected , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Standard series , Self-sealing push-in fitting blocks the air flow after the tubing is disconnected , PBT and nickel-plated brass , Operating medium: compressed air, vacuum , Straight shape, L-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
5.3 mm |
| Approved Tubing Type |
PAN-, PAN-MF-, PAN-R-, PAN-V0-, PEN-, PFAN-, PLN-, PTFEN-, PUN-, PUN-CM-, PUN-DUO-, PUN-H-, PUN-H-DUO-, PUN-S-, PUN-S-DUO-, PUN-V0- |
| Tubing Insertion Depth |
21 mm |
| Type Of Seal On Screwed Plug |
Coating |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
1 |
| Operating Pressure Complete Temperature Range |
-13.775, 87 psi |
| Temperature Dependent Operating Pressure |
-13.775, 203 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 80 °C |
| Nominal Torque |
15.5 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
46 g |
| Type Of Mounting |
External hexagon, size 17 mm |
| Pneumatic Connection, Port 1 |
Male thread R3/8 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 10 mm |
| Colour Of Release Ring |
Blue |
| Material Screwed Plug |
Nickel-plated brass |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PBT |
| Material Release Ring |
POM |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
High-alloy stainless steel |
