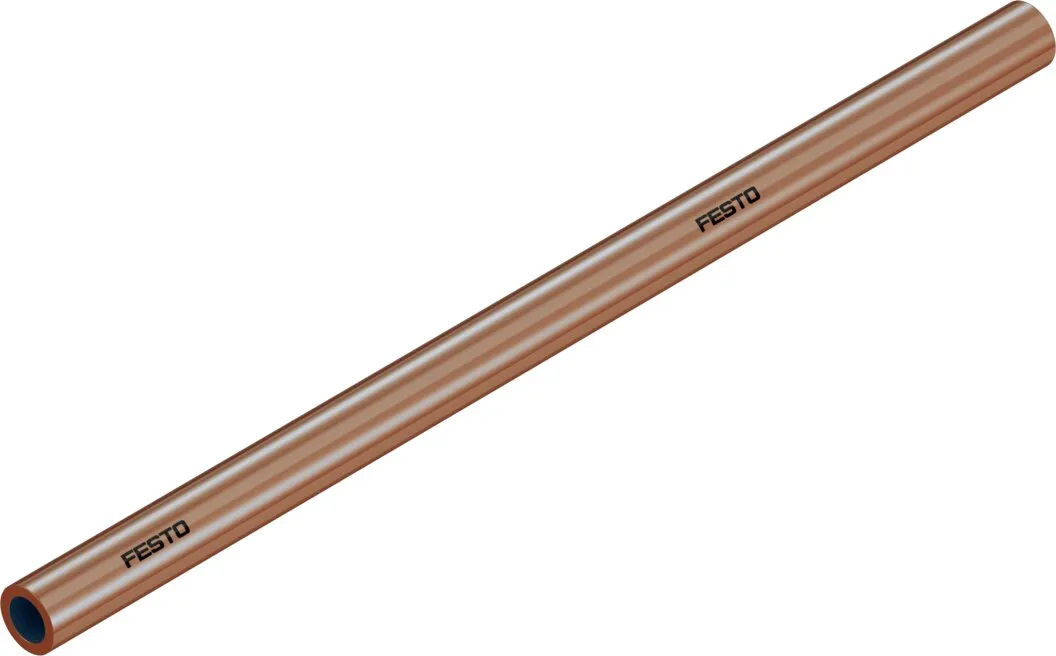

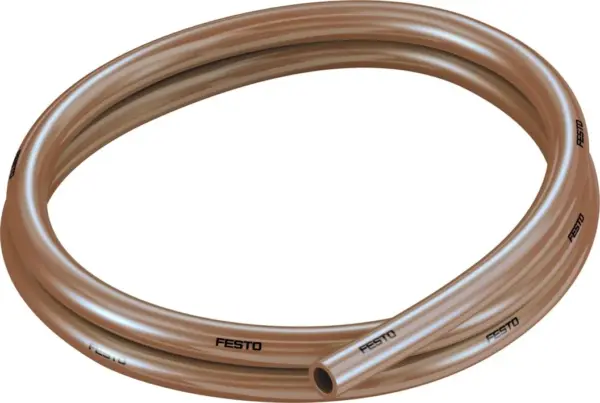

Festo PUN-V0-12X2-BR-C
Polyurethane , Flame retardant to UL 94 V0 … V2 , For use in the immediate vicinity of welding applications , High resistance to microbes and hydrolysis , Suitable for use with energy chains , Opera…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane , Flame retardant to UL 94 V0 … V2 , For use in the immediate vicinity of welding applications , High resistance to microbes and hydrolysis , Suitable for use with energy chains , Operating medium: compressed air, vacuum, water
Specification
| Outside Diameter |
12 mm |
|---|---|
| Flow Relevant Bending Radius |
55 mm |
| Inside Diameter |
8 mm |
| Min. Bending Radius |
19 mm |
| Tubing Characteristics |
Suitable for energy chains |
| Operating Pressure Complete Temperature Range |
-13.775, 101.5 psi |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Note On Operating Pressure |
Water: max. 0.6 MPa at max. 50°C |
| Approval |
German Technical Control Board (TÜV) |
| Certificate Issuing Authority |
B 013277 0506 00 |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Fire Test Material |
UL94 V-0 (3 mm), UL94 V-2 (0.75 mm) |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-35, 60 °C |
| Note On Ambient Temperature |
Unpressurised use up to 90 °C |
| Product Weight According To Length |
0.08 kg/m |
| Pneumatic Connection |
For push-in connector outside diameter of 12 mm |
| Colour |
Brown |
| Note To Colour |
Deviates from the standard colour due to flame protection |
| Shore Hardness |
D 54 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
TPE-U(PU) |
