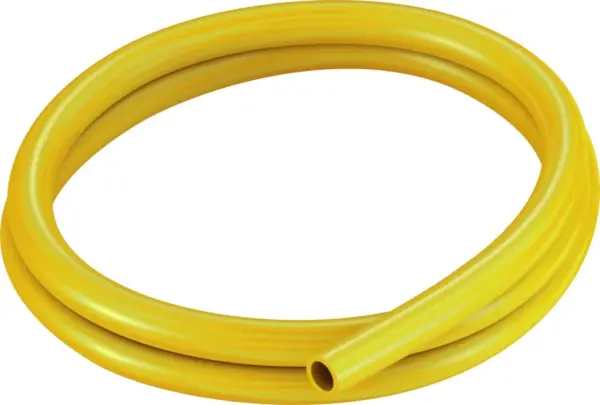

Festo PUN-H-F-16X2,5-GE
Polyurethane , High resistance to microbes and hydrolysis , For food safety certificates, see www.festo.com/certificates/PUN_H_F , Operating medium: compressed air, vacuum, water
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane , High resistance to microbes and hydrolysis , For food safety certificates, see www.festo.com/certificates/PUN_H_F , Operating medium: compressed air, vacuum, water
Specification
| Outside Diameter |
16 mm |
|---|---|
| Flow Relevant Bending Radius |
88 mm |
| Inside Diameter |
11 mm |
| Min. Bending Radius |
38 mm |
| Instructions On Use |
Tubing without printing, TPE-U Ether based |
| Symbol |
00997424 |
| Tubing Characteristics |
Suitable for energy chains |
| Operating Pressure Complete Temperature Range |
-13.775, 87 psi |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Note On Operating Pressure |
Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 – 60 °C |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Fire Test Material |
UL94 HB |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Cleanroom Class |
Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| Suitable For Use With Food |
See declaration of conformity |
| Ambient Temperature |
-35, 60 °C |
| Product Weight According To Length |
0.122 kg/m |
| Pneumatic Connection |
For push-in connector O.D. 16 mm |
| Colour |
Yellow |
| Shore Hardness |
D 52 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
TPE-U(PU) |
