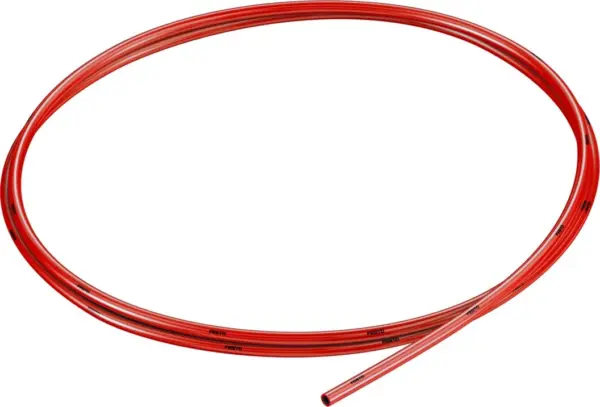

Festo PUN-H-2X0,4-RT
Polyurethane , High resistance to microbes and hydrolysis , Suitable for use with energy chains , Clean room-compatible combination with fitting NPKA , Also available as DUO plastic tubing , Operating…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane , High resistance to microbes and hydrolysis , Suitable for use with energy chains , Clean room-compatible combination with fitting NPKA , Also available as DUO plastic tubing , Operating media compressed air, vacuum, water. Water as per the manufacturer’s declaration, see www.festo.com/certificates/PUN_H
Specification
| Outside Diameter | 2 mm |
|---|---|
| Flow Relevant Bending Radius | 8 mm |
| Inside Diameter | 1.2 mm |
| Min. Bending Radius | 5 mm |
| Instructions On Use | TPE-U Ether based |
| Tubing Characteristics | Suitable for energy chains |
| Operating Pressure Complete Temperature Range | -13.775, 87 psi |
| Temperature Dependent Operating Pressure | -13.775, 145 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Cleanroom Class | Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient Temperature | -35, 60 °C |
| Product Weight According To Length | 0.0024 kg/m |
| Pneumatic Connection | For push-in connector O.D. 2 mm |
| Colour | Red |
| Shore Hardness | D 52 +/-3 |
| Note On Materials | RoHS-compliant |
| Material Tubing | TPE-U(PU) |
