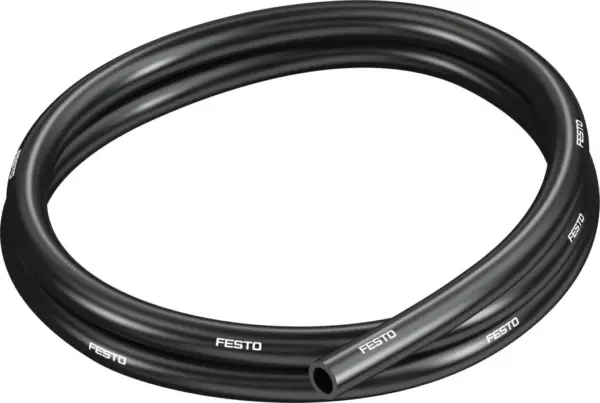

Festo PUN-CM-12-SW
Polyurethane , Plastic tubing, antistatic, electrically conductive , Suitable for use with energy chains , Operating medium: compressed air, vacuum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane , Plastic tubing, antistatic, electrically conductive , Suitable for use with energy chains , Operating medium: compressed air, vacuum
Specification
| Outside Diameter |
12 mm |
|---|---|
| Flow Relevant Bending Radius |
70 mm |
| Inside Diameter |
8 mm |
| Min. Bending Radius |
30 mm |
| Tubing Characteristics |
Suitable for energy chains |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Surface Resistance |
0.01, 10 MOhm |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-35, 60 °C |
| Product Weight According To Length |
0.08107 kg/m |
| Pneumatic Connection |
For push-in connector outside diameter of 12 mm |
| Colour |
Black |
| Shore Hardness |
D 52 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
TPE-U(PU) |
