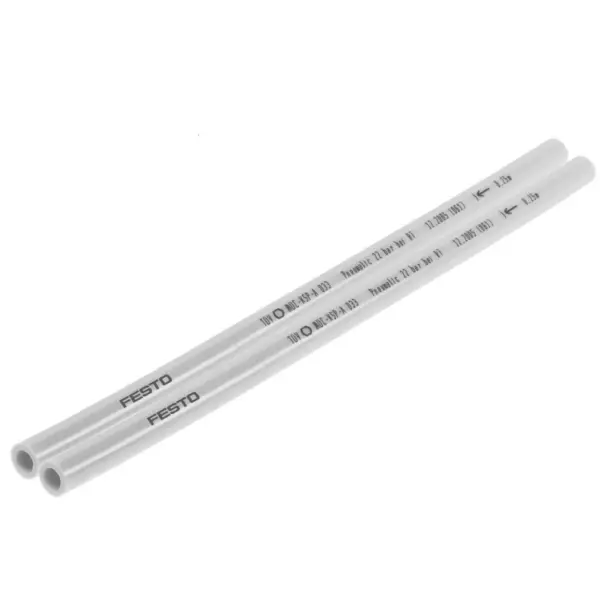

Festo PUN-8X1,25-DUO-SI
Polyurethane , High resistance to stress cracks , Suitable for use with energy chains , Also available as DUO plastic tubing , Operating medium: compressed air, vacuum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane , High resistance to stress cracks , Suitable for use with energy chains , Also available as DUO plastic tubing , Operating medium: compressed air, vacuum
Specification
| Outside Diameter |
8 mm |
|---|---|
| Flow Relevant Bending Radius |
37 mm |
| Inside Diameter |
5.7 mm |
| Min. Bending Radius |
24 mm |
| Instructions On Use |
The plastic tubing can only be installed in contact with cables if the sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. |
| Tubing Characteristics |
Suitable for energy chains |
| Operating Pressure Complete Temperature Range |
-13.775, 101.5 psi |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Approval |
German Technical Control Board (TÜV) |
| Certificate Issuing Authority |
B 013277 0506 00 |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Fire Test Material |
UL94 HB |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-35, 60 °C |
| Product Weight According To Length |
0.0604 kg/m |
| Pneumatic Connection |
For push-in connector O.D. 8 mm, For barbed fitting inside diameter of 6 mm with union nut, For barbed fitting inside diameter of 6 mm |
| Colour |
Silver |
| Shore Hardness |
D 52 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
TPE-U(PU) |
