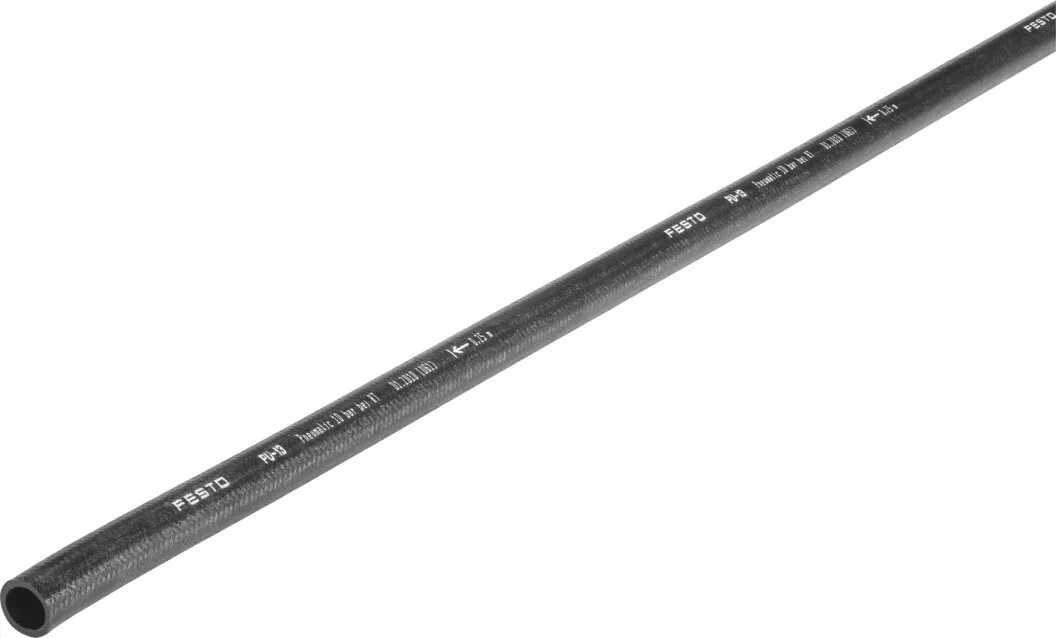

Festo PU-13-SW
Polyurethane with fabric , High resistance to abrasion and kinks , Operating media: compressed air, vacuum (PU-13)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyurethane with fabric , High resistance to abrasion and kinks , Operating media: compressed air, vacuum (PU-13)
Specification
| Outside Diameter | 17.6 mm |
|---|---|
| Flow Relevant Bending Radius | 83 mm |
| Inside Diameter | 13 mm |
| Operating Pressure Complete Temperature Range | -0.95, 10 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -35, 60 °C |
| Product Weight According To Length | 0.133 kg/m |
| Pneumatic Connection | For barbed fitting inside diameter of 13 mm with union nut |
| Colour | Black |
| Shore Hardness | A 86 +/-3 |
| Note On Materials | RoHS-compliant |
| Material Tubing | TPE-U(PU) |
