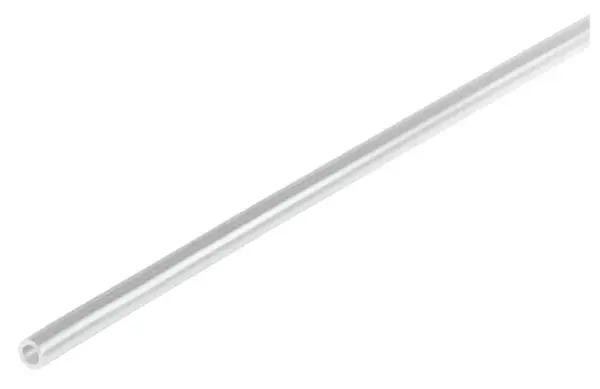

Festo PTFEN-16X2,5-NT-25
Polytetrafluoroethylene , Food grade see www.festo.com/certificates/PTFEN , High resistance to chemicals , High temperature resistance , Operating medium: compressed air, vacuum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polytetrafluoroethylene , Food grade see www.festo.com/certificates/PTFEN , High resistance to chemicals , High temperature resistance , Operating medium: compressed air, vacuum
Specification
| Outside Diameter |
16 mm |
|---|---|
| Flow Relevant Bending Radius |
160 mm |
| Inside Diameter |
11 mm |
| Min. Bending Radius |
109 mm |
| Instructions On Use |
Tubing without printing |
| Operating Pressure Complete Temperature Range |
-13.775, 72.5 psi |
| Temperature Dependent Operating Pressure |
-13.775, 174 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Fire Test Material |
UL94 V-0 |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Cleanroom Class |
Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| Suitable For Use With Food |
See supplementary material information |
| Ambient Temperature |
-20, 150 °C |
| Product Weight According To Length |
0.228 kg/m |
| Pneumatic Connection |
For push-in connector O.D. 16 mm |
| Colour |
Natural |
| Shore Hardness |
D 55 +/-5 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
PTFE |
