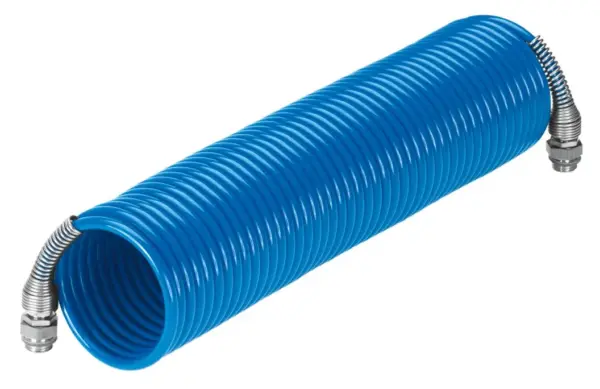

Festo PPS-6-15-1/4-BL
Polyamide, brass, galvanised steel , Pre-assembled with 2 rotatable connectors and captive sealing rings OL , Highly resistant to microbes , Operating medium: compressed air, vacuum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyamide, brass, galvanised steel , Pre-assembled with 2 rotatable connectors and captive sealing rings OL , Highly resistant to microbes , Operating medium: compressed air, vacuum
Specification
| Working Length |
15 m |
|---|---|
| Outside Diameter |
7.8 mm |
| Block Length |
0.8 m |
| Inside Diameter |
6.2 mm |
| Winding Diameter |
75 mm |
| Number Of Turns |
86 |
| Temperature Dependent Operating Pressure |
-0.95, 17.2 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-30, 80 °C |
| Nominal Torque |
11 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
500 g |
| Pneumatic Connection, Port 1 |
Male thread G1/4 |
| Pneumatic Connection, Port 2 |
Male thread G1/4 |
| Colour |
Blue |
| Material Connecting Thread |
Brass |
| Note On Materials |
RoHS-compliant |
| Material Buckling Protection |
Steel, Galvanised |
| Material Tubing |
PA12-P |
