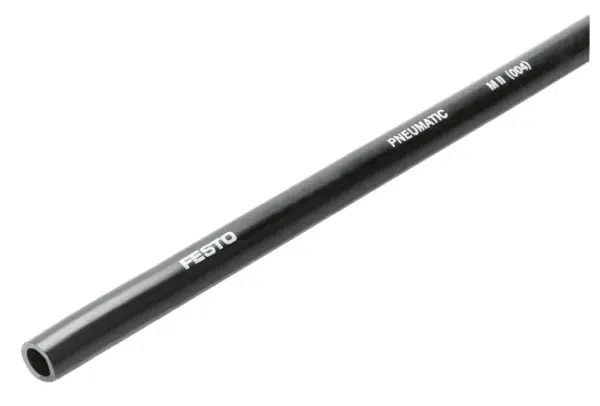

Festo PEN-6X1-SW
Polyethylene , High resistance to chemicals and very high resistance to hydrolysis , Resistant to most cleaning agents and lubricants , Suitable for use with energy chains , Operating media compressed…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyethylene , High resistance to chemicals and very high resistance to hydrolysis , Resistant to most cleaning agents and lubricants , Suitable for use with energy chains , Operating media compressed air, vacuum, water. Water as per the manufacturer’s declaration, see www.festo.com/certificates/PEN_S
Specification
| Outside Diameter |
6 mm |
|---|---|
| Flow Relevant Bending Radius |
26 mm |
| Inside Diameter |
4 mm |
| Min. Bending Radius |
13.5 mm |
| Tubing Characteristics |
Suitable for energy chains |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Note On Operating Pressure |
Water: max. 0.6 MPa at 0 – 50 °C |
| Approval |
German Technical Control Board (TÜV) |
| Certificate Issuing Authority |
B 013277 0506 00 |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Cleanroom Class |
Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient Temperature |
-30, 60 °C |
| Product Weight According To Length |
0.01477 kg/m |
| Pneumatic Connection |
For push-in connector O.D. 6 mm, For barbed fitting I.D. 4 mm with union nut, For barbed fitting I.D. 4 mm |
| Colour |
Black |
| Shore Hardness |
D 52 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
PE |
