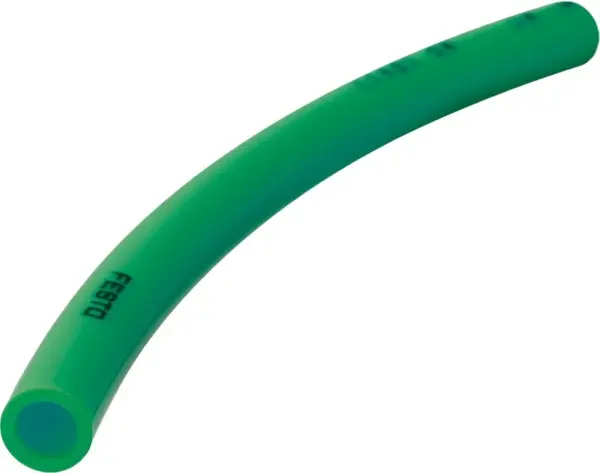

Festo PAN-16X2-GN
Polyamide , High thermal and mechanical load capacities , Highly resistant to microbes , Operating medium: compressed air, vacuum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polyamide , High thermal and mechanical load capacities , Highly resistant to microbes , Operating medium: compressed air, vacuum
Specification
| Outside Diameter |
16 mm |
|---|---|
| Flow Relevant Bending Radius |
94 mm |
| Inside Diameter |
12 mm |
| Min. Bending Radius |
67 mm |
| Tubing Characteristics |
Suitable for energy chains |
| Temperature Dependent Operating Pressure |
-13.775, 203 psi |
| Approval |
German Technical Control Board (TÜV) |
| Certificate Issuing Authority |
B 013277 0506 00 |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-30, 80 °C |
| Product Weight According To Length |
0.092 kg/m |
| Pneumatic Connection |
For push-in connector O.D. 16 mm |
| Colour |
Green |
| Shore Hardness |
D 55 +/-3 |
| Note On Materials |
RoHS-compliant |
| Material Tubing |
TPE-A |
