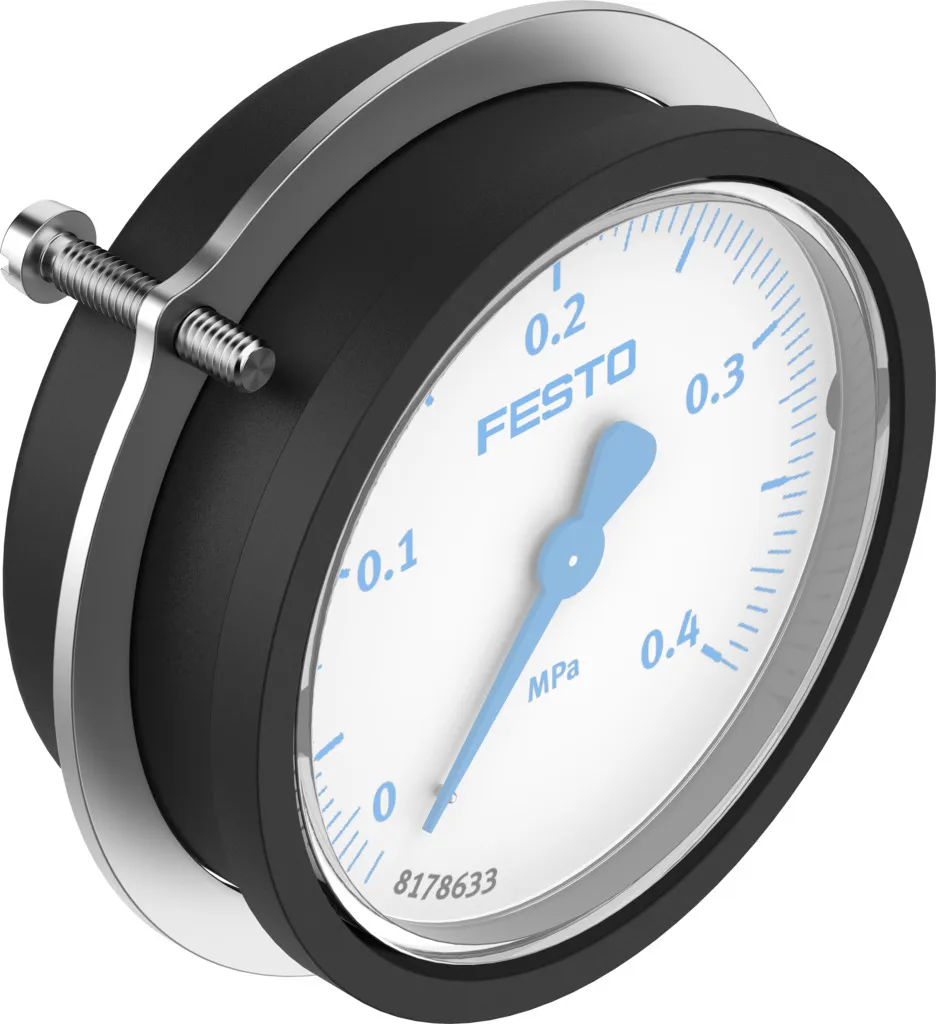

Festo PAGN-P-63-0.4M-G14-1-CPA
Designs based on EN 837-1 , Display units bar, psi, MPa
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Designs based on EN 837-1 , Display units bar, psi, MPa
Specification
| Indicating Range | 0.4 MPa |
|---|---|
| Symbol | 00991463 |
| Conforms To Standard | ENÂ 837-3 |
| Nominal Size Of Pressure Gauge | 63 |
| Approval | CPA |
| Design | Bourdon tube pressure gauge |
| Type Of Mounting | Front panel mounting |
| Operating Medium | Inert gases, Neutral fluids |
| Note On Operating And Pilot Medium | No acetylene, No oxygen |
| Operating Pressure | 58 psi |
| Alternating Load Factor | 0.66 |
| Measurement Accuracy Class | 1 |
| Degree Of Protection | IP43 |
| Storage Temperature | -40, 70 °C |
| Media Temperature | -20, 60 °C |
| Ambient Temperature | -20, 60 °C |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Note On Materials | RoHS-compliant |
| Position Of Connection | Centred, rear side |
| Pneumatic Connection | G1/4 |
| Material In Contact With The Medium | Brass |
| Material Screwed Plug | Brass |
| Material Housing | ABS |
| Material Screen | SAN |
| Material Mounting Ring | Steel |
| Material Screws | Steel |
| Housing Colour | Black |
| Product Weight | 120 g |
| Scale | Single scale, MPa (outer scale) |
