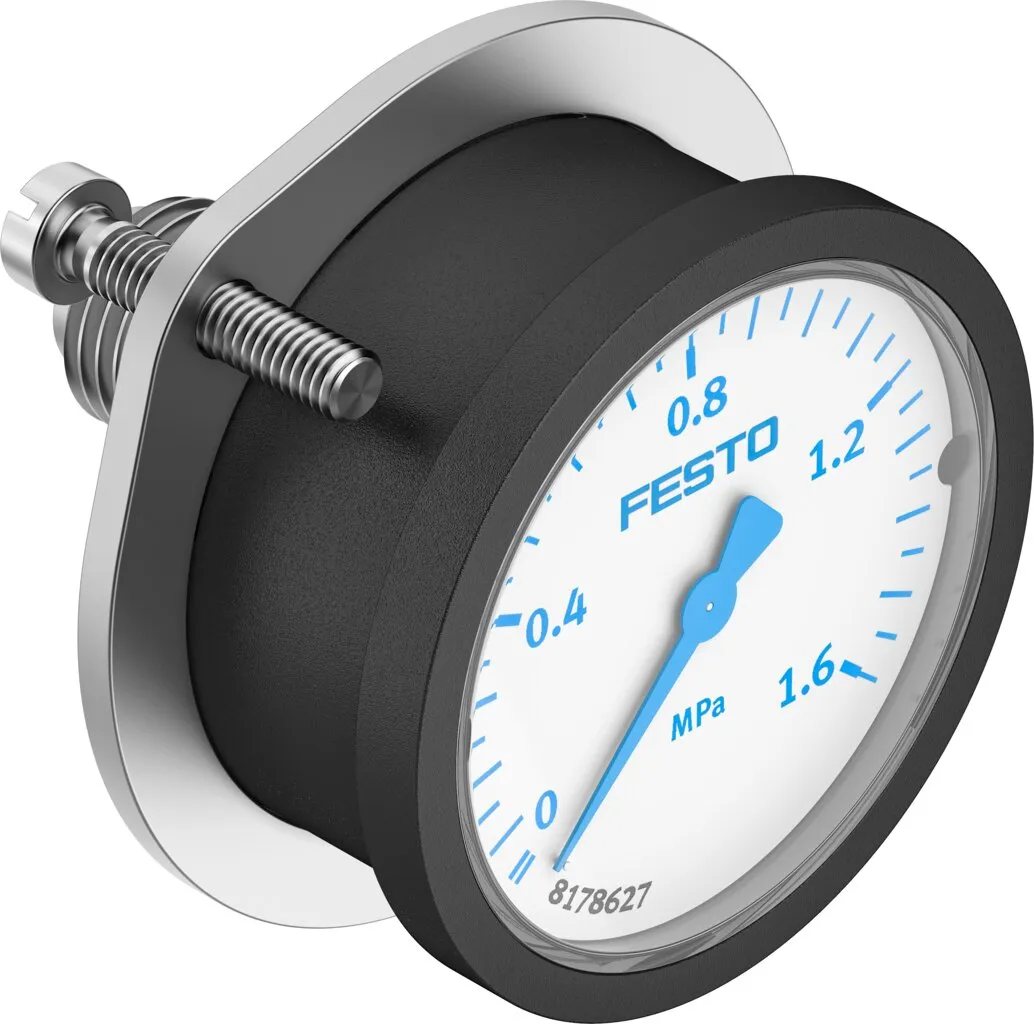

Festo PAGN-P-40-1.6M-G14-CPA
Designs based on EN 837-1 , Display units bar, psi, MPa
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Designs based on EN 837-1 , Display units bar, psi, MPa
Specification
| Indicating Range |
1.6 MPa |
|---|---|
| Symbol |
00991463 |
| Conforms To Standard |
EN 837-1 |
| Nominal Size Of Pressure Gauge |
40 |
| Approval |
CPA |
| Design |
Bourdon tube pressure gauge |
| Type Of Mounting |
Front panel mounting |
| Operating Medium |
Inert gases, Neutral fluids |
| Note On Operating And Pilot Medium |
No acetylene, No oxygen |
| Operating Pressure |
232 psi |
| Alternating Load Factor |
0.66 |
| Measurement Accuracy Class |
2.5 |
| Degree Of Protection |
IP43 |
| Storage Temperature |
-40, 70 °C |
| Media Temperature |
-20, 60 °C |
| Ambient Temperature |
-20, 60 °C |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Note On Materials |
RoHS-compliant |
| Position Of Connection |
Centred, rear side |
| Pneumatic Connection |
G1/4 |
| Material In Contact With The Medium |
Brass |
| Material Screwed Plug |
Brass |
| Material Housing |
ABS |
| Material Screen |
SAN |
| Material Mounting Ring |
Steel |
| Material Screws |
Steel |
| Housing Colour |
Black |
| Product Weight |
80 g |
| Scale |
Single scale |
