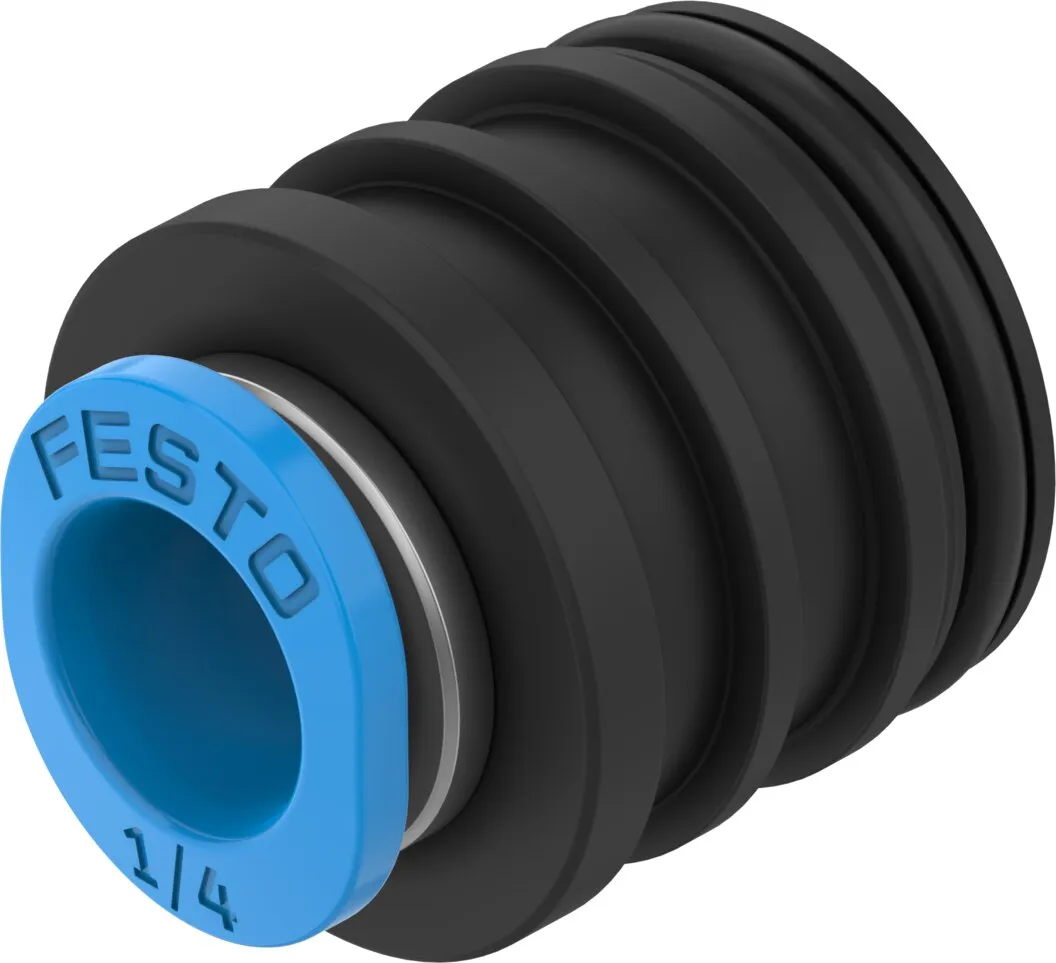

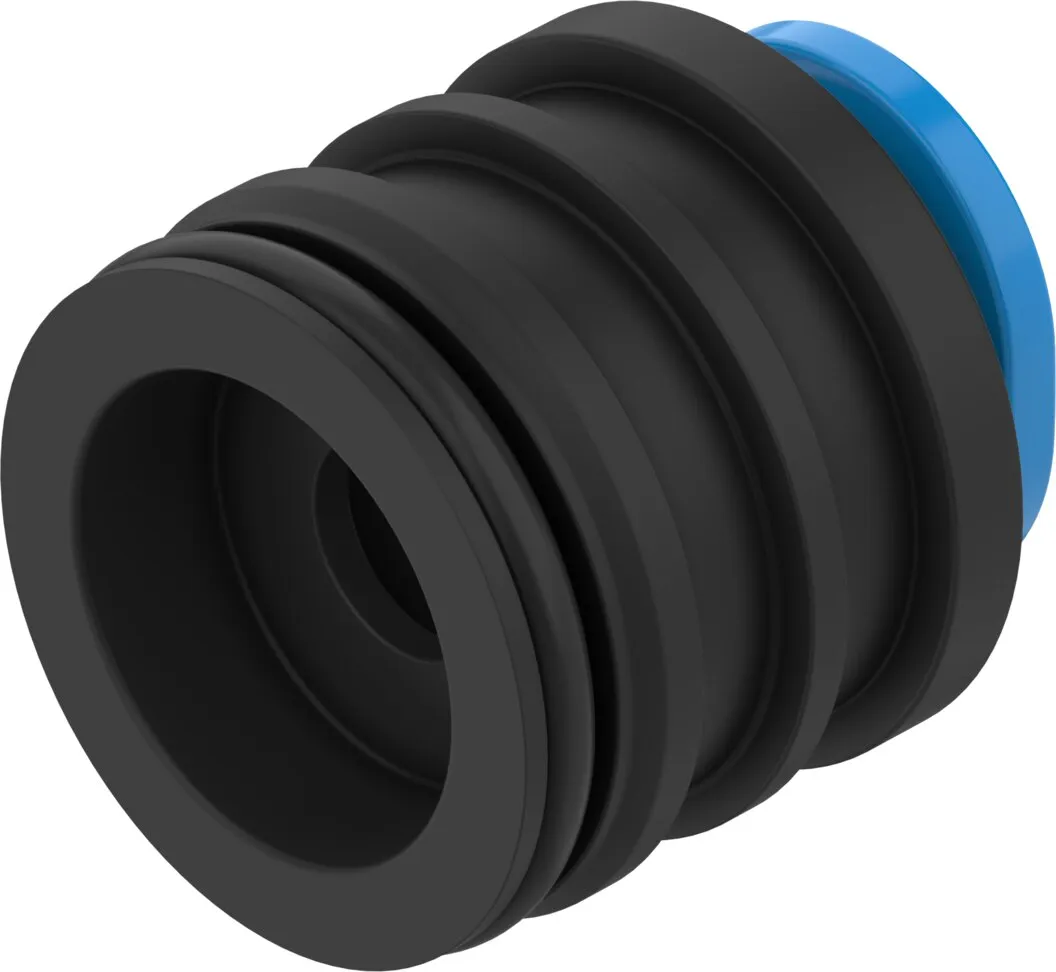

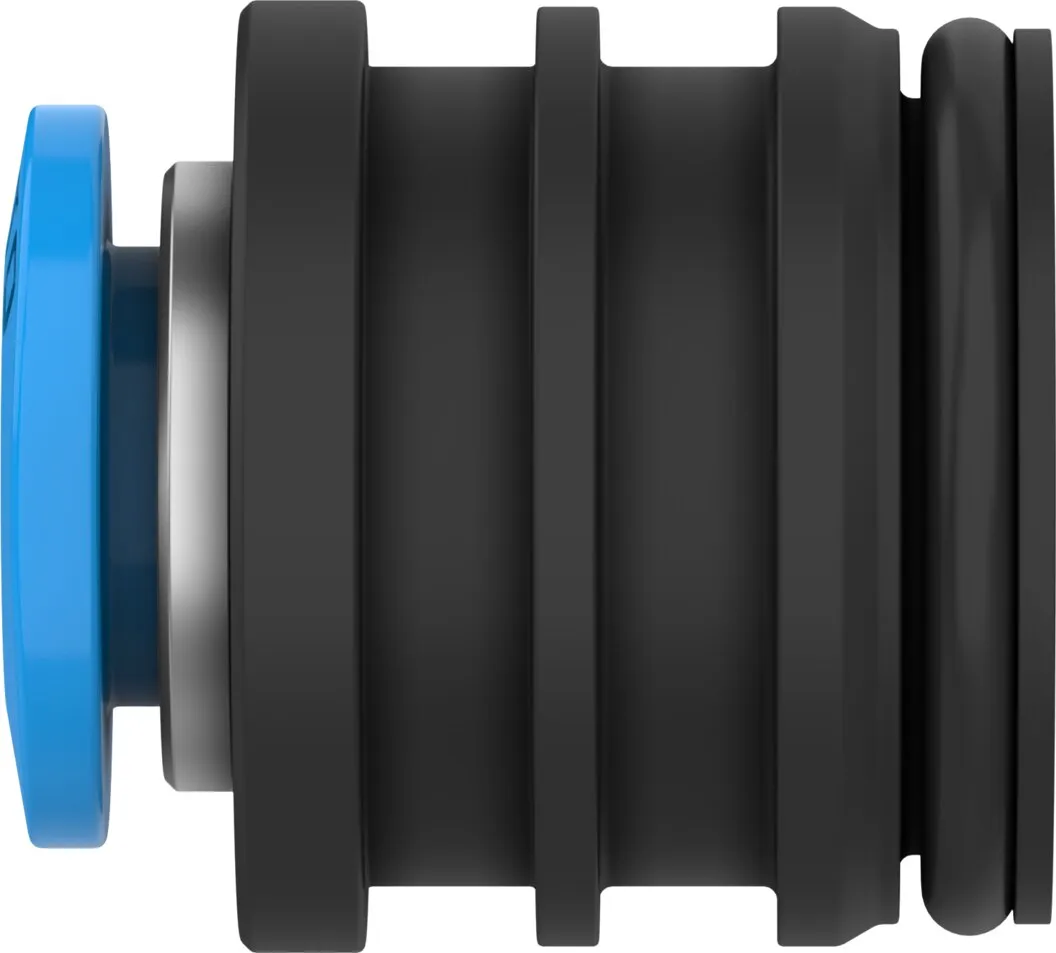

Festo NPQX-D-PC15-T14-P10
Specially developed for valve terminal VTUX , Versions with aluminium or polyamide housing , Straight shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specially developed for valve terminal VTUX , Versions with aluminium or polyamide housing , Straight shape
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
4.5 mm |
| Tubing Insertion Depth |
11.93 mm |
| Type Of Seal On Screwed Plug |
No seal |
| Mounting Position |
Horizontal |
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure |
-13.775, 145 psi |
| Operating Pressure Complete Temperature Range |
-13.775, 145 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
2.15 g |
| Type Of Mounting |
Via retaining clamp |
| Pneumatic Connection, Port 1 |
Cartridge 15 mm |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 1/4" |
| Colour Of Release Ring |
Blue |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA-reinforced |
