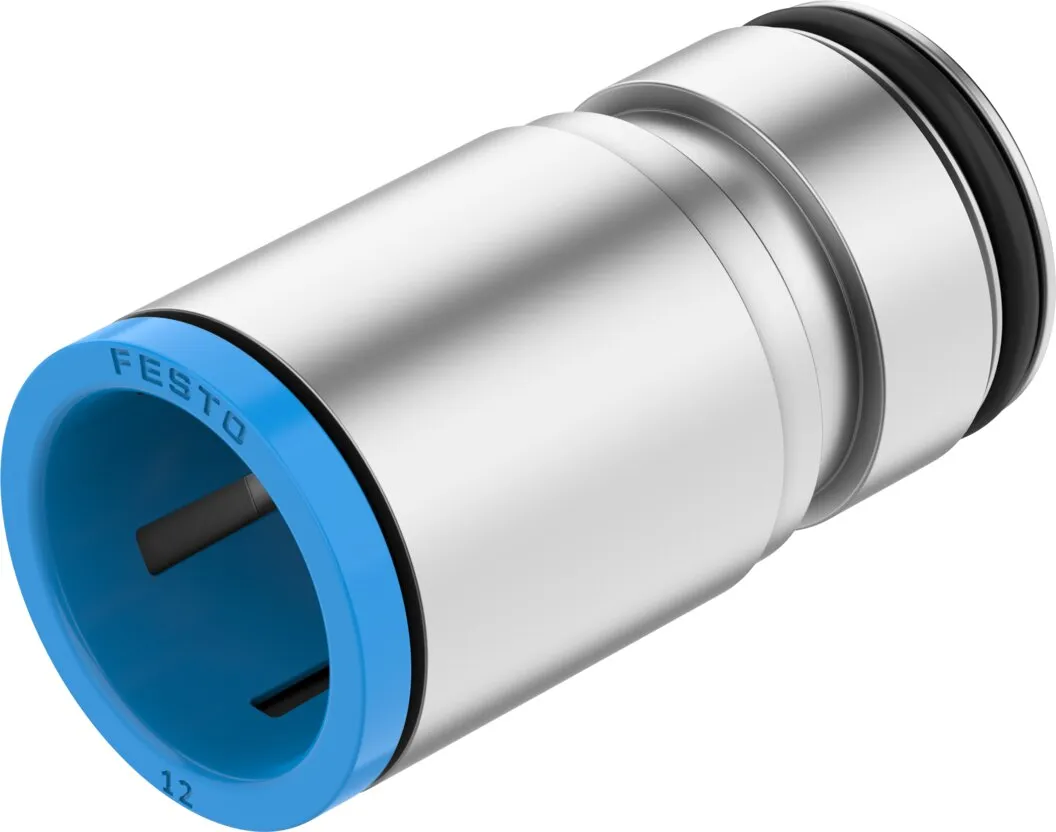

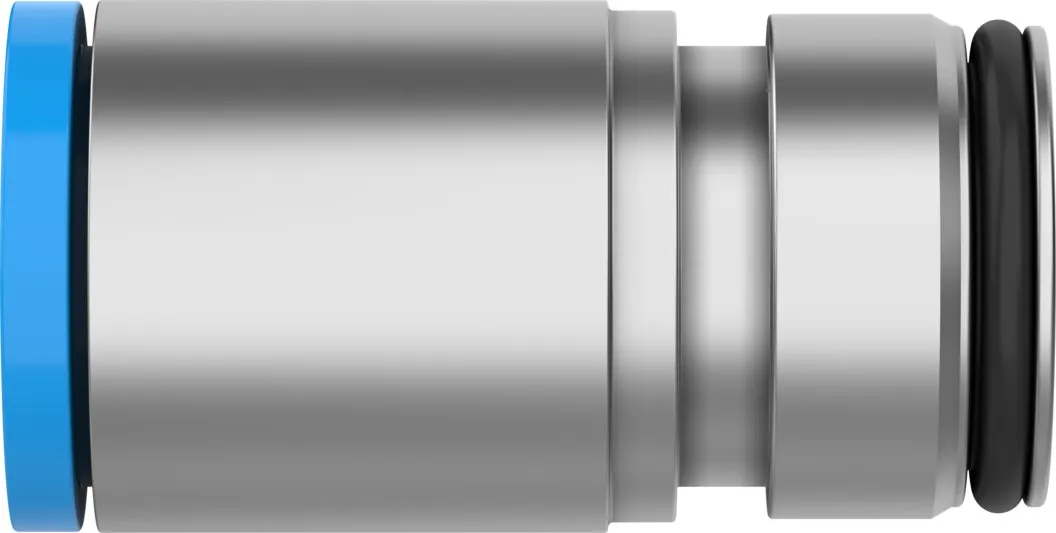

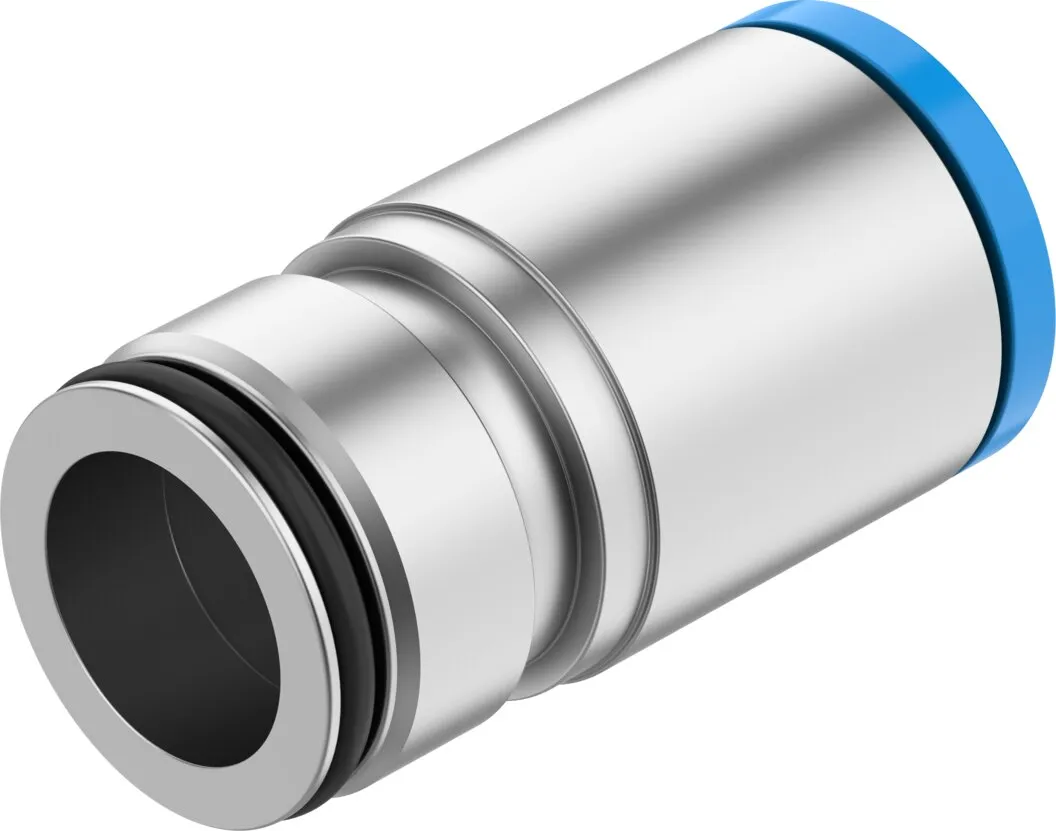

Festo NPQX-D-PC15-Q12-P2
Specially developed for valve terminal VTUX , Versions with aluminium or polyamide housing , Straight shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specially developed for valve terminal VTUX , Versions with aluminium or polyamide housing , Straight shape
Specification
| Size | Standard |
|---|---|
| Nominal Size | 10 mm |
| Tubing Insertion Depth | 25 mm |
| Type Of Seal On Screwed Plug | O-ring |
| Mounting Position | optional |
| Design | Push-pull principle |
| Size Of Pack | 2 |
| Operating Pressure | -13.775, 145 psi |
| Operating Pressure Complete Temperature Range | -13.775, 145 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Ambient Temperature | -5, 60 °C |
| Product Weight | 11.5 g |
| Type Of Mounting | Via retaining clamp |
| Pneumatic Connection, Port 1 | Cartridge 15 mm |
| Pneumatic Connection, Port 2 | For tubing outer diameter of 12 mm |
| Colour Of Release Ring | Blue |
| Note On Materials | RoHS-compliant |
| Material Housing | High-alloy steel |
| Material Release Ring | PA66 |
| Material O Ring | HNBR |
| Material Tubing Seal | HNBR |
| Material Tubing Clamp Component | High-alloy stainless steel |
