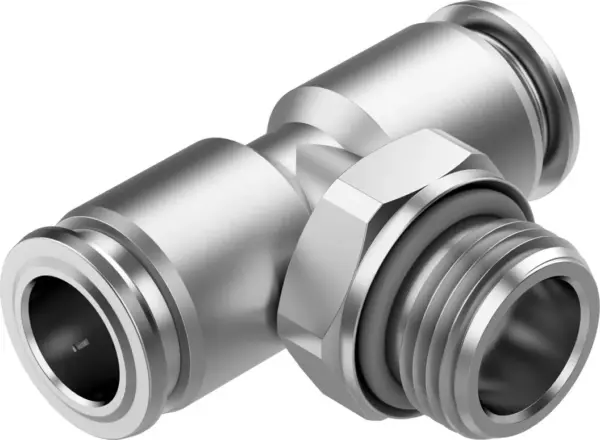

Festo NPQR-T-G38-Q10
Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate , Optimal price/performance ratio, perfect for applications from a single source , Maximum corrosion resistance…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate , Optimal price/performance ratio, perfect for applications from a single source , Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance , High temperature resistance , Stainless steel , Operating media: compressed air, vacuum, (water) , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size | Standard |
|---|---|
| Nominal Size | 8 mm |
| Tubing Insertion Depth | 15.1 mm |
| Type Of Seal On Screwed Plug | Sealing ring |
| Mounting Position | optional |
| Design | Push-pull principle |
| Size Of Pack | 1 |
| Symbol | 00997424 |
| Operating Pressure Complete Temperature Range | -13.775, 232 psi |
| Note On Operating Pressure | Water: max. 0.7 MPa at 0 – 80 °C |
| Certificate Issuing Authority | NSF C0556009 |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 4 – Very high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Suitability For The Production Of Li Ion Batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class | Class 4 according to ISO 14644-1 |
| Suitable For Use With Food | See declaration of conformity, NSF/ANSI 169 |
| Ambient Temperature | -20, 150 °C |
| Nominal Torque | 9 Nm |
| Tolerance For Nominal Tightening Torque | ± 20% |
| Product Weight | 52.5 g |
| Type Of Mounting | External hexagon, A/F 20 mm |
| Pneumatic Connection, Port 1 | Male thread G3/8 |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 10 mm |
| Colour Of Release Ring | Silver |
| Note On Materials | RoHS-compliant |
| Material Housing | High-alloy stainless steel |
| Material Thread Seal | FPM |
| Guard Ring Material | High-alloy stainless steel |
| Material Release Ring | High-alloy stainless steel |
| Material Tubing Seal | FPM |
| Material Tubing Clamp Component | High-alloy stainless steel |
| Thrust Ring Material | PPSU |
