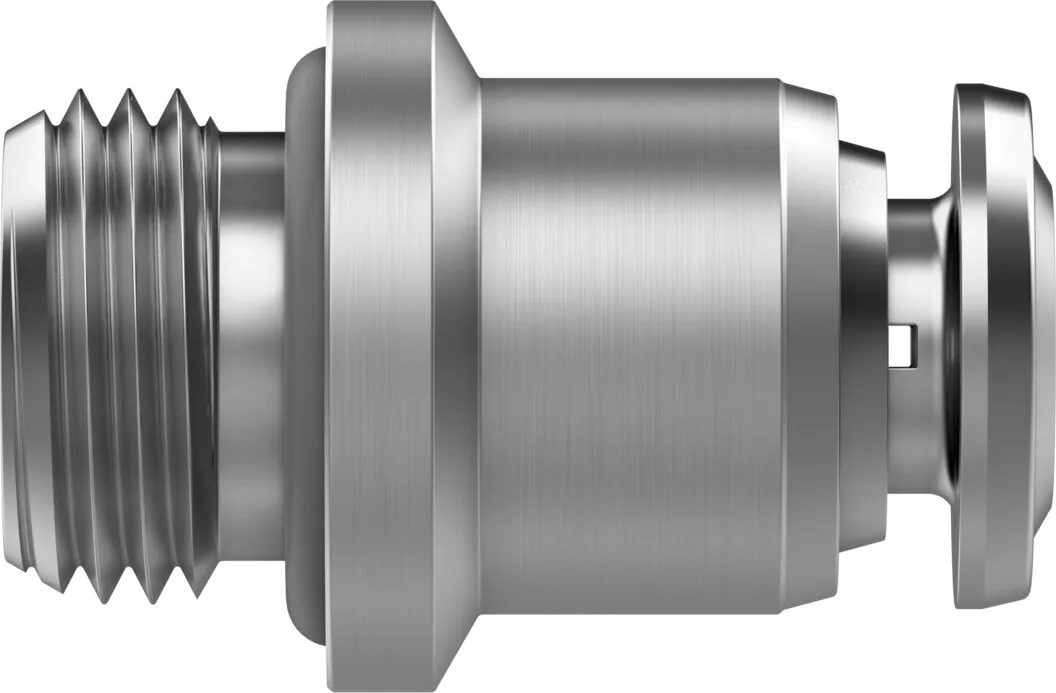

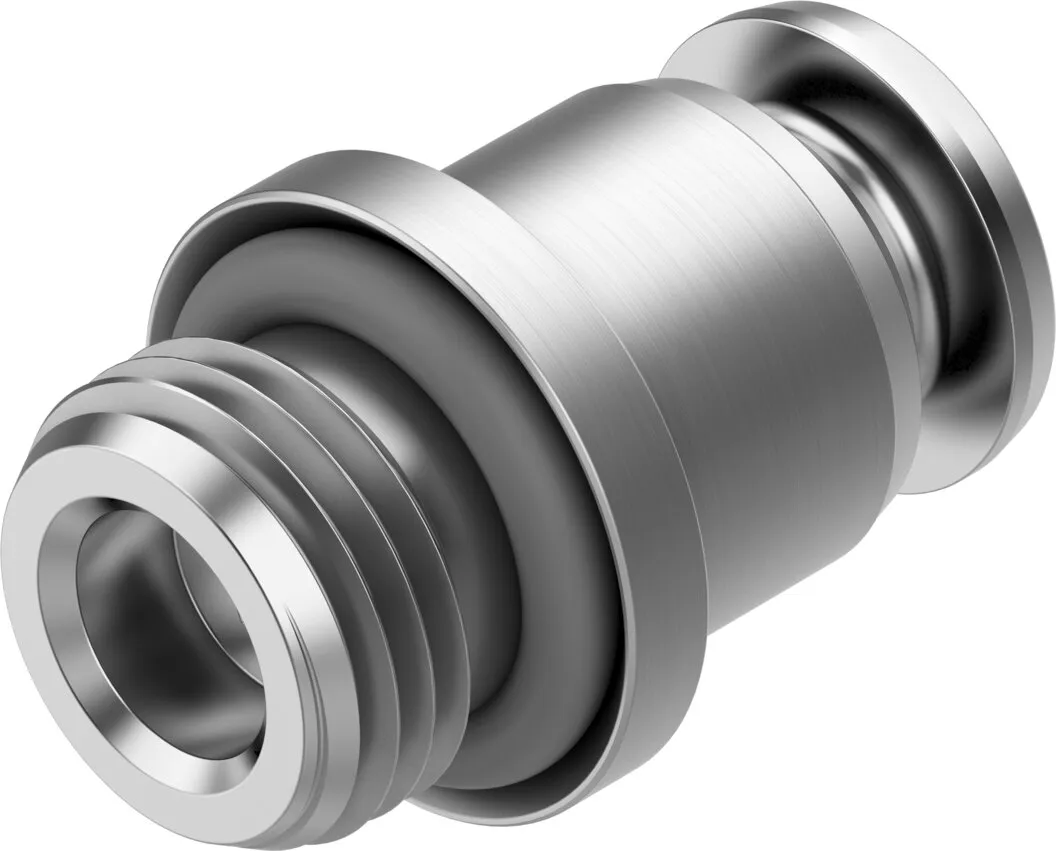

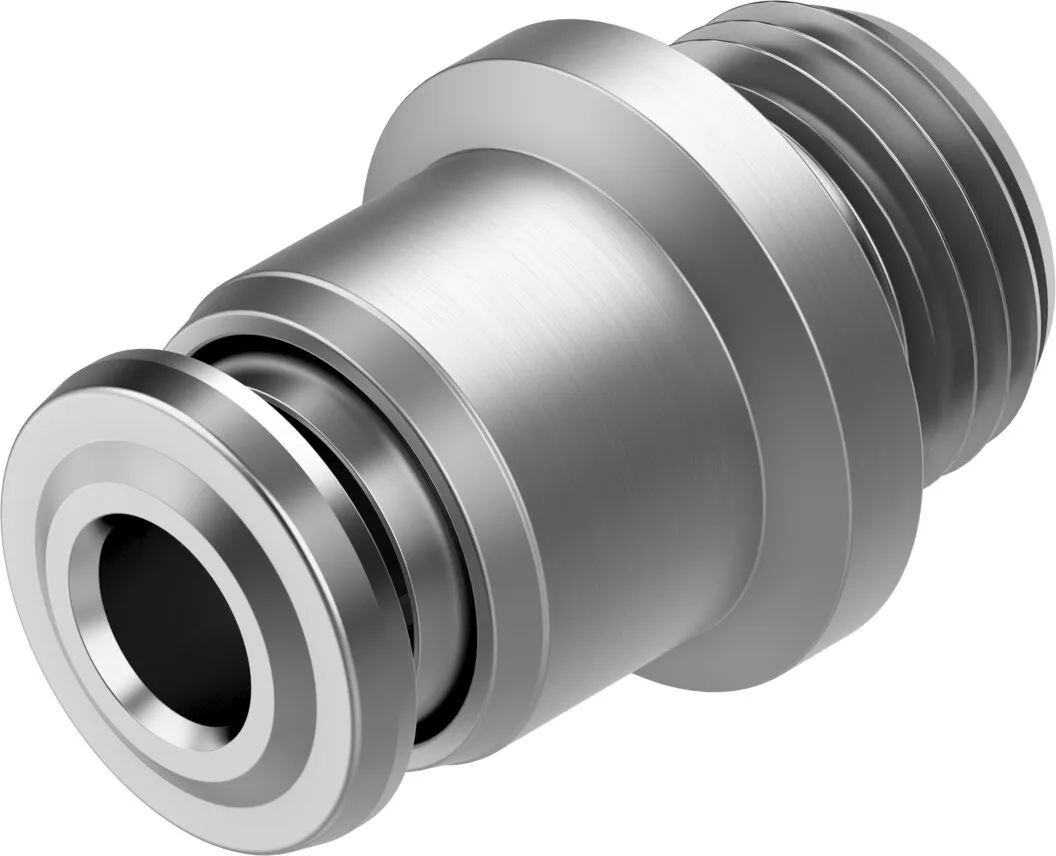

Festo NPQR-DK-G18-Q4
Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate , Optimal price/performance ratio, perfect for applications from a single source , Maximum corrosion resistance…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate , Optimal price/performance ratio, perfect for applications from a single source , Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance , High temperature resistance , Stainless steel , Operating media: compressed air, vacuum, (water) , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
2.6 mm |
| Tubing Insertion Depth |
14 mm |
| Type Of Seal On Screwed Plug |
Sealing ring |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
1 |
| Symbol |
00997424 |
| Operating Pressure Complete Temperature Range |
-13.775, 232 psi |
| Note On Operating Pressure |
Water: max. 0.7 MPa at 0 – 80 °C |
| Certificate Issuing Authority |
NSF C0556009 |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class |
Class 4 according to ISO 14644-1 |
| Suitable For Use With Food |
See declaration of conformity, NSF/ANSI 169 |
| Ambient Temperature |
-20, 150 °C |
| Nominal Torque |
3 Nm |
| Tolerance For Nominal Tightening Torque |
± 20% |
| Product Weight |
7.5 g |
| Type Of Mounting |

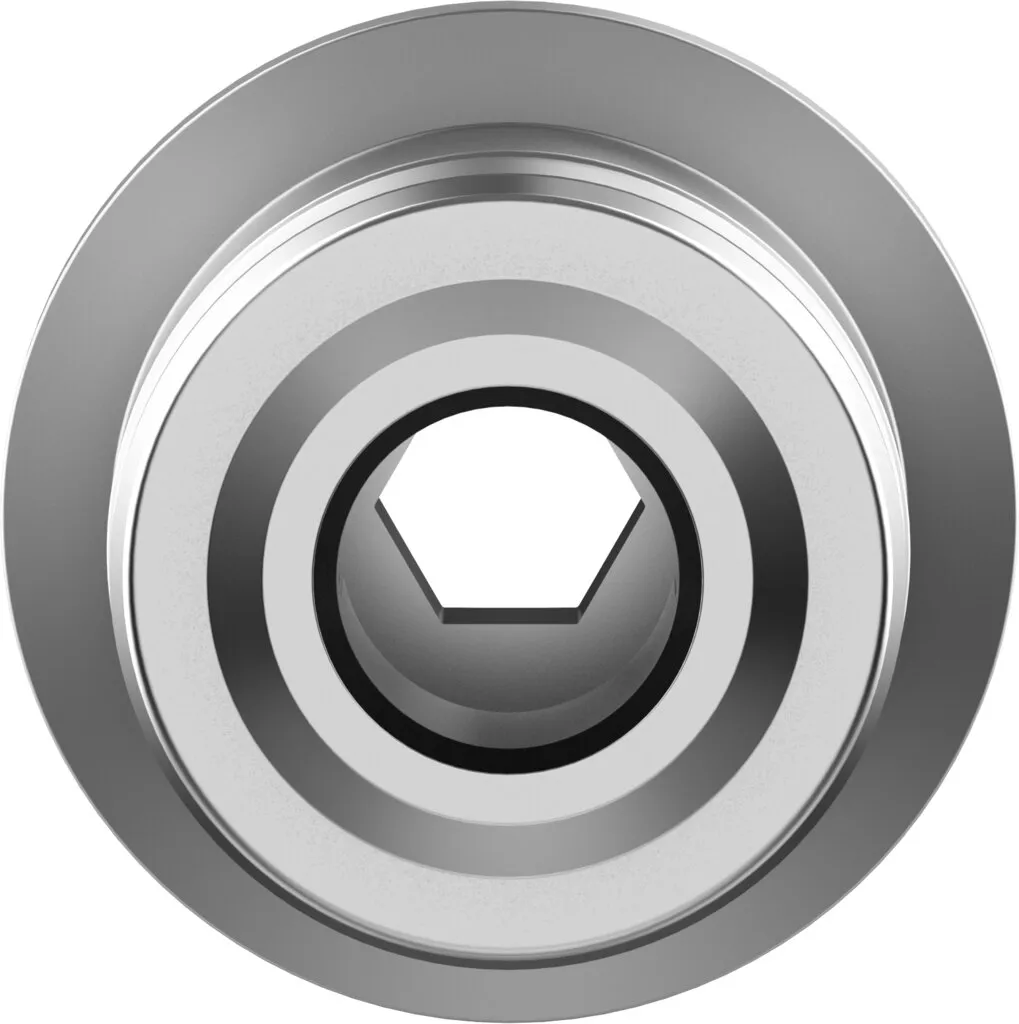

Internal hexagon, size 2.5 mm |
| Pneumatic Connection, Port 1 |
Male thread G1/8 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 4 mm |
| Colour Of Release Ring |
Silver |
| Note On Materials |
RoHS-compliant |
| Material Housing |
High-alloy stainless steel |
| Material Thread Seal |
FPM |
| Guard Ring Material |
High-alloy stainless steel |
| Material Release Ring |
High-alloy stainless steel |
| Material Tubing Seal |
FPM |
| Material Tubing Clamp Component |
High-alloy stainless steel |
| Thrust Ring Material |
PPSU |
