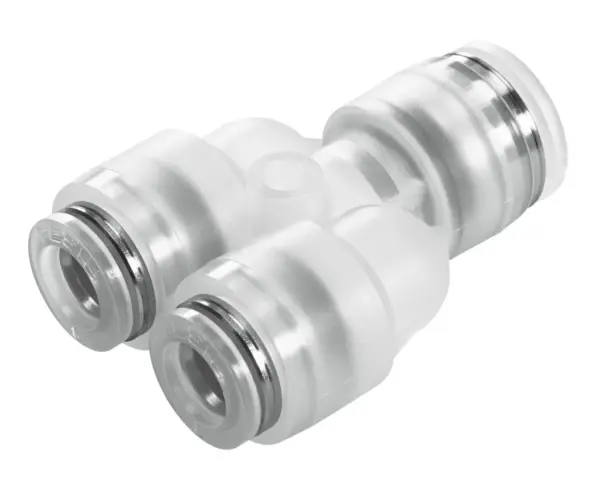

Festo NPQP-Y-Q6-Q4-FD-P10
Polypropylene , Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN , For use with extreme media influences , Food grade see www.festo.com/certifi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polypropylene , Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN , For use with extreme media influences , Food grade see www.festo.com/certificates/NPQP , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size | Standard |
|---|---|
| Nominal Size | 3.7 mm |
| Design | Push-pull principle |
| Size Of Pack | 10 |
| Operating Pressure Complete Temperature Range | -13.775, 65.25 psi |
| Temperature Dependent Operating Pressure | -13.775, 145 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 4 – Very high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Suitable For Use With Food | See supplementary material information |
| Ambient Temperature | -20, 60 °C |
| Product Weight | 8.5 g |
| Pneumatic Connection, Port 1 | For tubing outside diameter of 6 mm |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 4 mm |
| Colour Of Release Ring | Transparent white |
| Note On Materials | RoHS-compliant |
| Material Housing | PP |
| Material Tubing Clamp Component | High-alloy stainless steel |
