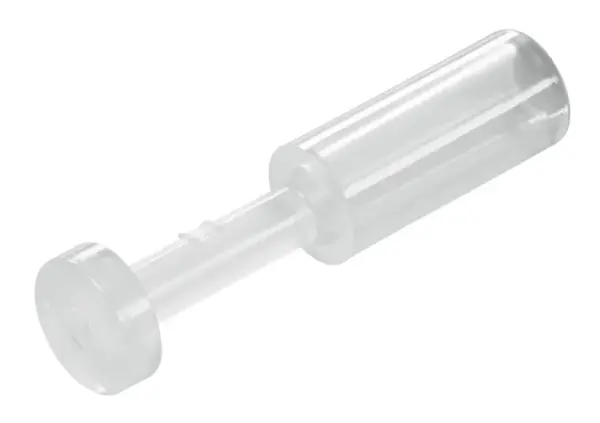

Festo NPQP-P-S4-FD-P10
Polypropylene , Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN , For use with extreme media influences , Food grade see www.festo.com/certifi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Polypropylene , Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN , For use with extreme media influences , Food grade see www.festo.com/certificates/NPQP , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 65.25 psi |
| Temperature Dependent Operating Pressure |
-13.775, 145 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Suitable For Use With Food |
See supplementary material information |
| Ambient Temperature |
-20, 60 °C |
| Product Weight |
0.5 g |
| Pneumatic Connection, Port 1 |
Push-in sleeve Ø 4 mm |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PP |
| Material Tubing Clamp Component |
High-alloy stainless steel |
