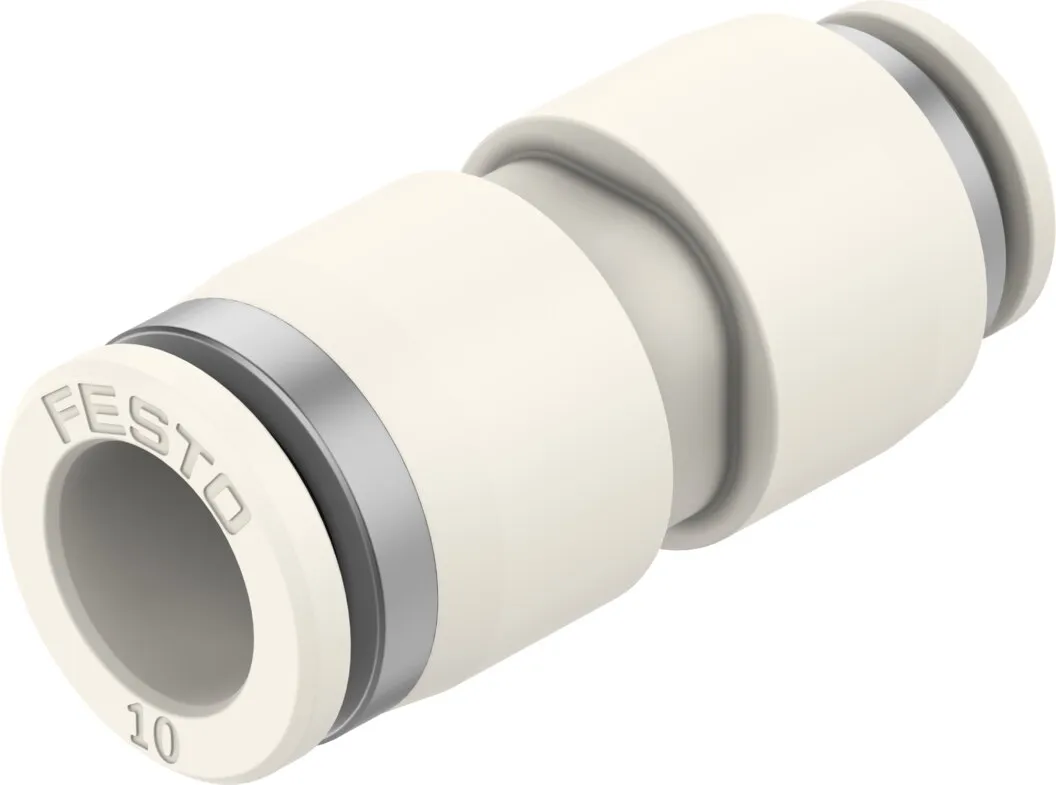

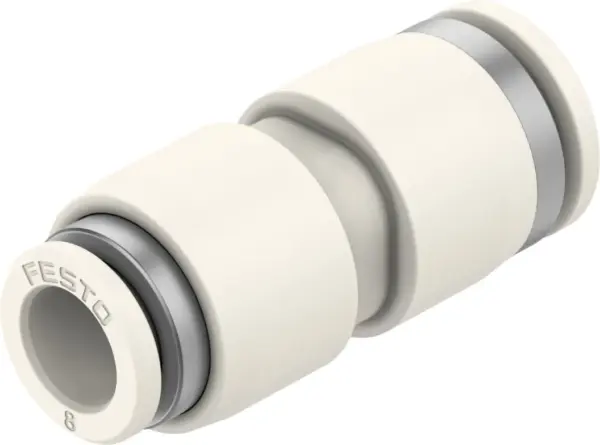

Festo NPQO-D-Q10-Q8-P5
Oxygen compatibility (in accordance with ISO 15001 and ASTM G93) , Biocompatibility (according to ISO 18562) , FDA-listed materials , Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Oxygen compatibility (in accordance with ISO 15001 and ASTM G93) , Biocompatibility (according to ISO 18562) , FDA-listed materials , Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar) , Wide range from 4 mm to 12 mm in size , Push-in fittings and connections (straight, L-shaped, T-shaped)
Specification
| Nominal Size |
7 mm |
|---|---|
| Tubing Insertion Depth |
20.1 mm |
| Note On The Tubing Insertion Depth |
Ø8 depth 17.6 mm |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
5 |
| Operating Pressure Complete Temperature Range |
-13.05, 43.5 psi |
| Temperature Dependent Operating Pressure |
-13.05, 174 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Carbon dioxide, Air, Oxygen, Nitrogen |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
120 °C |
| Ambient Temperature |
32, 140 °F |
| Biocompatibility According To Standard |
ISO 18562 |
| Oxygen Suitability According To Standard |
ASTM G 93, ISO 15001 |
| Maximum Impurity Level For Hydrocarbons |
550 mg/m² |
| Product Weight |
13.57 g |
| Pneumatic Connection, Port 1 |
For tubing outer diameter of 10 mm |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 8 mm |
| Colour Of Release Ring |
White |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PVDF |
| Material Release Ring |
PVDF |
| Material O Ring |
FPM |
| Material Tubing Seal |
FPM |
| Material Tubing Clamp Component |
High-alloy stainless steel |
| Thrust Ring Material |
PVDF |
