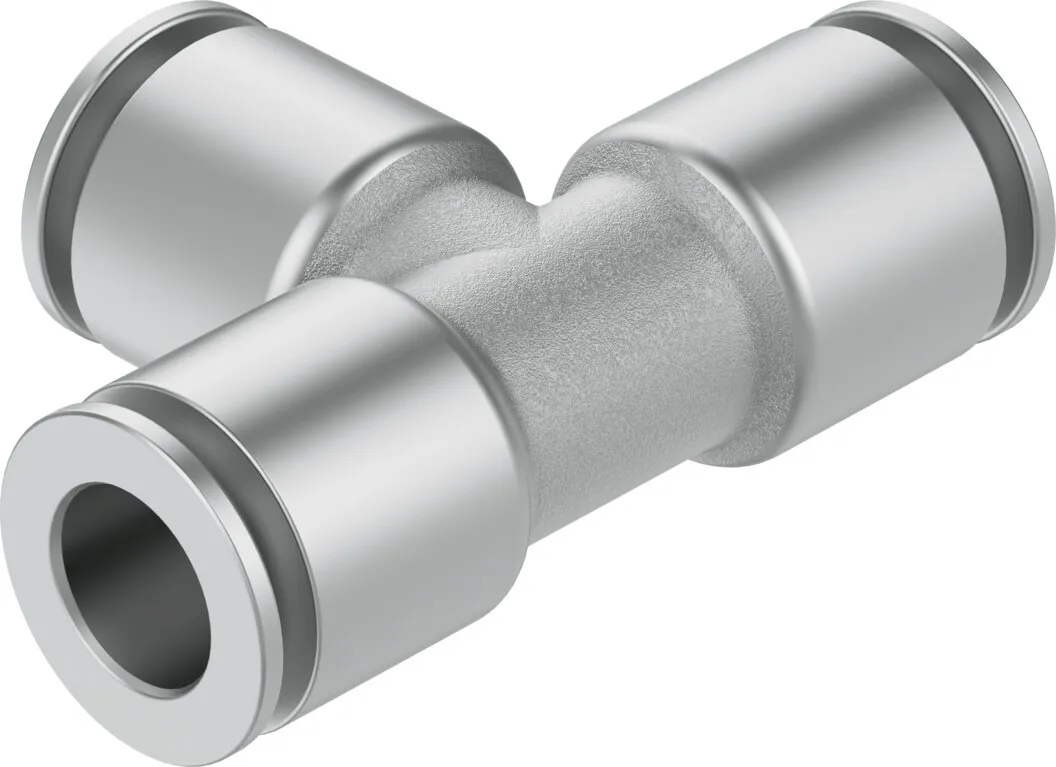

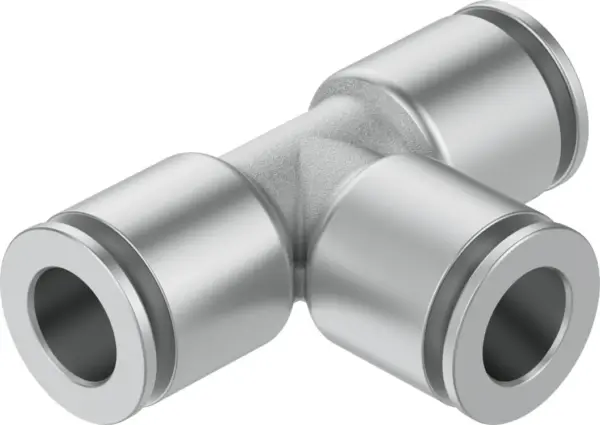

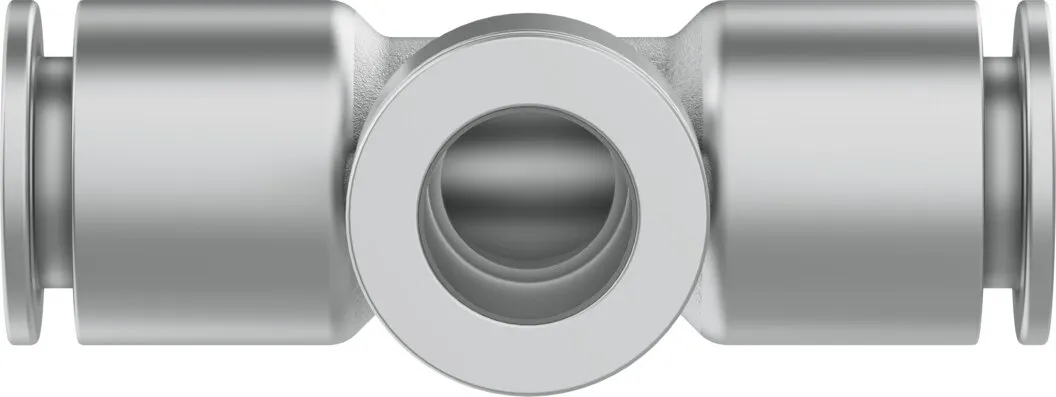

Festo NPQM-T-Q8-E-P10
Solid-metal brass, nickel-plated , Attractively priced metal push-in fitting , Sturdy , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-metal brass, nickel-plated , Attractively priced metal push-in fitting , Sturdy , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
7 mm |
| Design |
Push-pull principle |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 232 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-20, 70 °C |
| Product Weight |
28.4 g |
| Pneumatic Connection, Port 1 |
For tubing outer diameter of 8 mm |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 8 mm |
| Colour Of Release Ring |
Silver |
| Note On Materials |
RoHS-compliant |
| Material Housing |
Brass, nickel-plated |
| Material Tubing Seal |
NBR |
