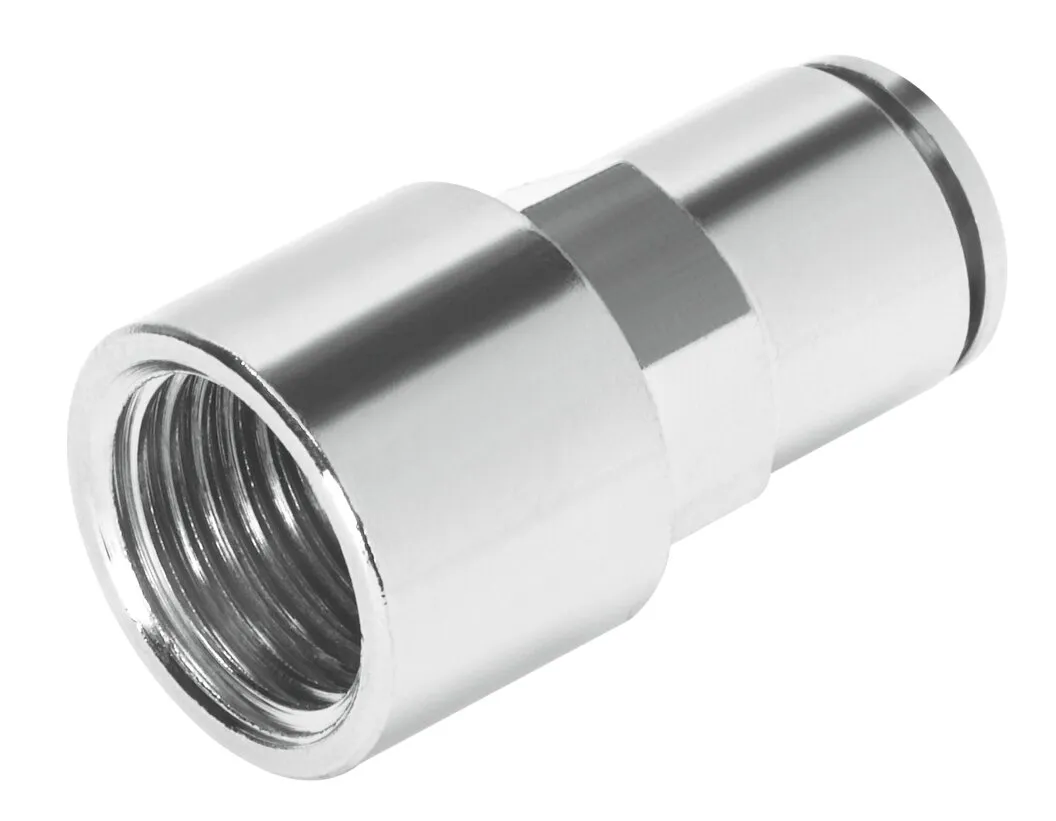

Festo NPQM-D-G14F-Q10-P10
Solid-metal brass, nickel-plated , Attractively priced metal push-in fitting , Sturdy , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-metal brass, nickel-plated , Attractively priced metal push-in fitting , Sturdy , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Specification
| Size | Standard |
|---|---|
| Nominal Size | 9 mm |
| Design | Push-pull principle |
| Size Of Pack | 10 |
| Operating Pressure Complete Temperature Range | -13.775, 232 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -20, 70 °C |
| Product Weight | 24.4 g |
| Type Of Mounting | External hexagon, A/F 16 mm |
| Pneumatic Connection, Port 1 | Female thread G1/4 |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 10 mm |
| Colour Of Release Ring | Silver |
| Note On Materials | RoHS-compliant |
| Material Housing | Brass, nickel-plated |
| Material Tubing Seal | NBR |
