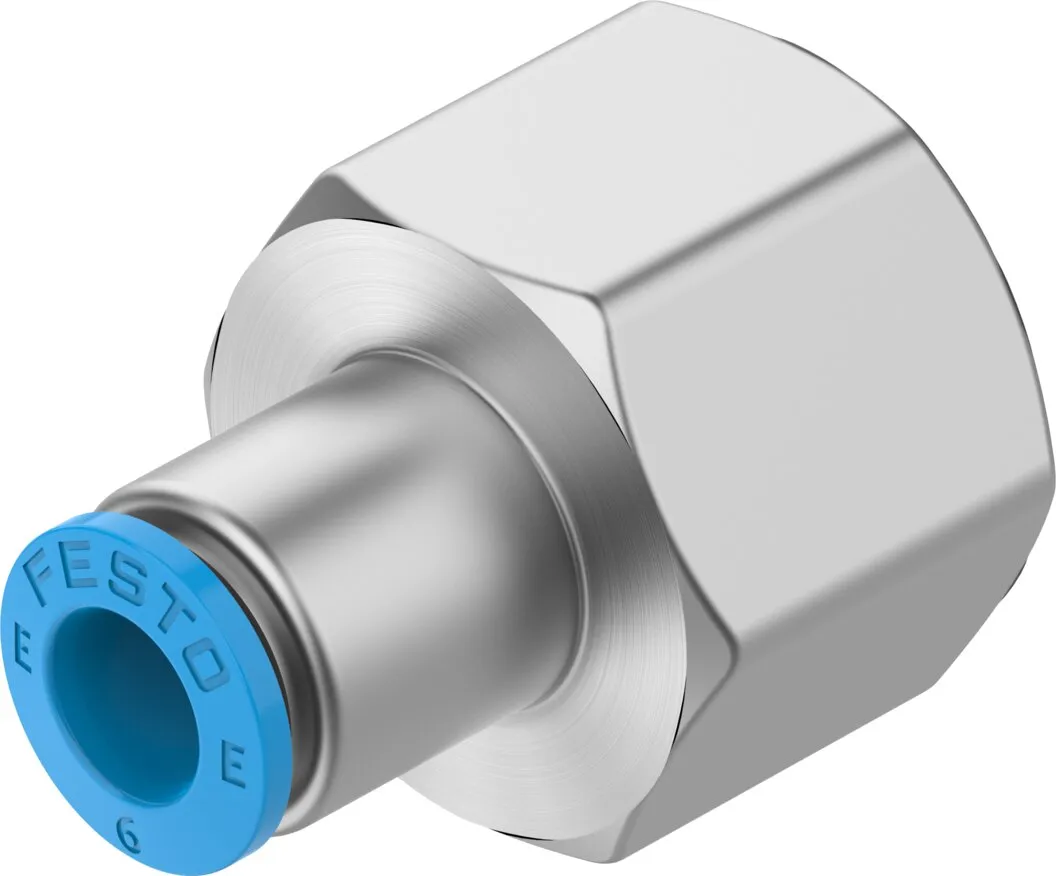

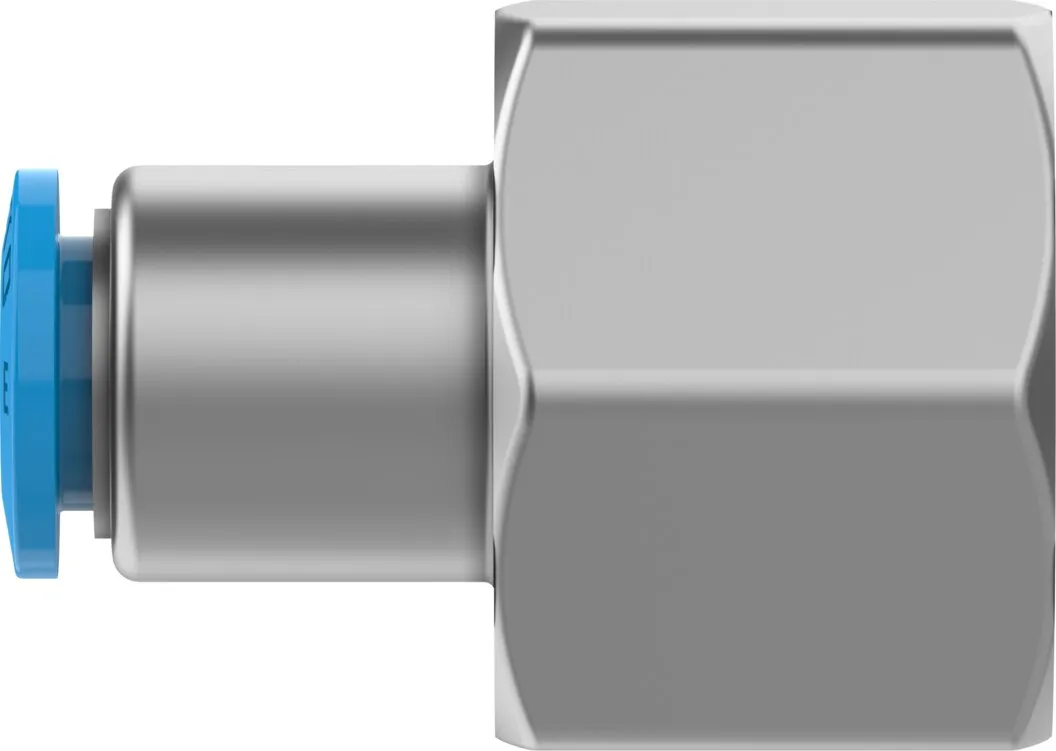

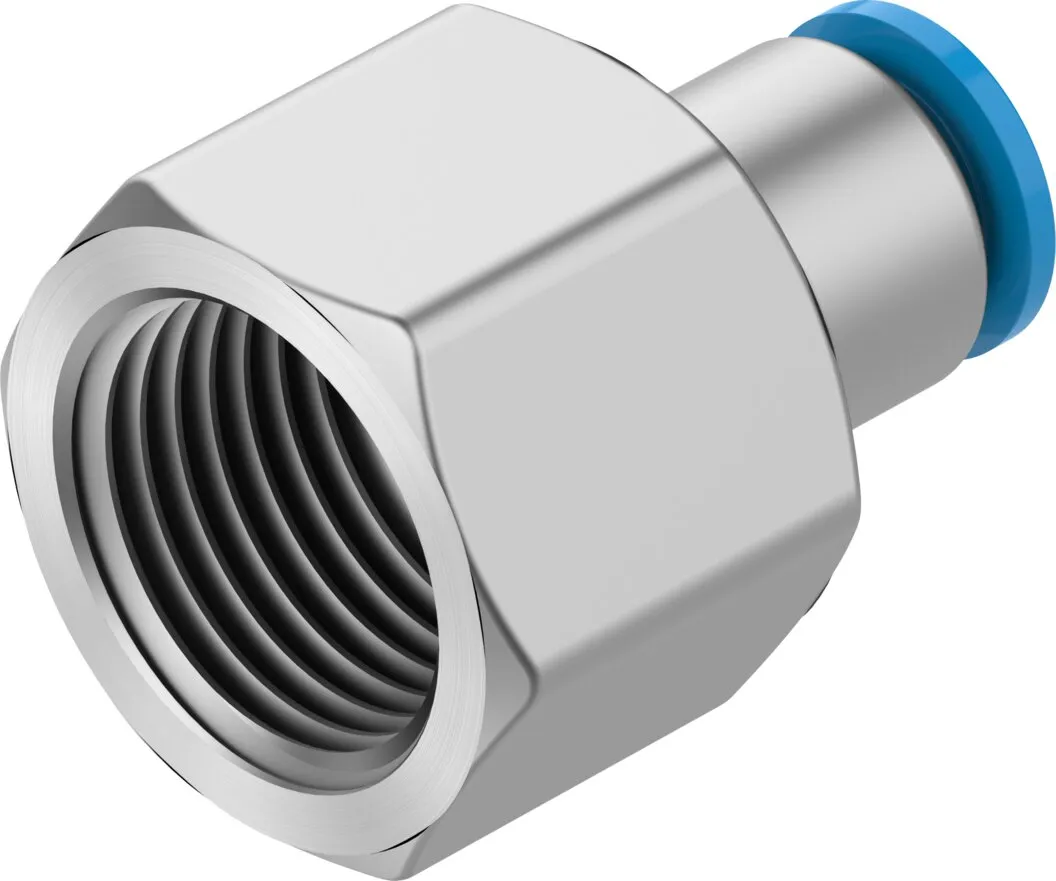

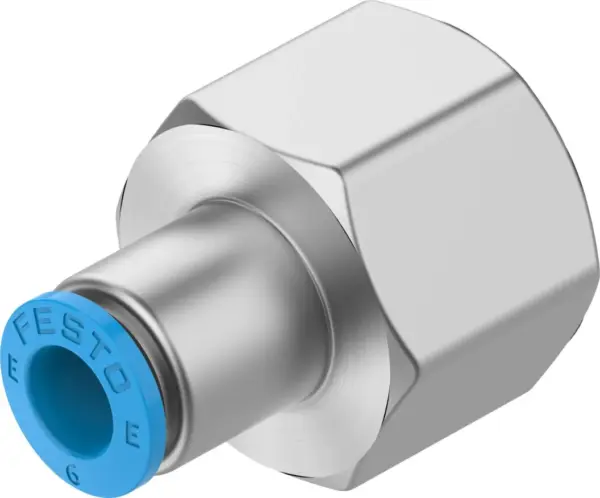

Festo NPQE-D-G38F-Q6-P5
Standard series , Low-cost solution for standard applications , Wide range of variants: wide selection for maximum flexibility in standard applications , PBT and nickel-plated brass , Tapered thread i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Standard series , Low-cost solution for standard applications , Wide range of variants: wide selection for maximum flexibility in standard applications , PBT and nickel-plated brass , Tapered thread in accordance with JIS B0203 and compatible with pressure-tight media to DIN EN 10226 , Operating medium: compressed air, vacuum , Straight shape, L-shape, T-shape, X-shape, Y-shape, push-in bulkhead connector
Specification
| Size |
Standard |
|---|---|
| Nominal Size |
4.5 mm |
| Mounting Position |
optional |
| Design |
Push-pull principle |
| Size Of Pack |
5 |
| Operating Pressure Complete Temperature Range |
-13.775, 116 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Cleanroom Class |
Class 4 according to ISO 14644-1 |
| Ambient Temperature |
-5, 60 °C |
| Product Weight |
32.67 g |
| Type Of Mounting |
External hexagon, size 21 mm |
| Pneumatic Connection, Port 1 |
Female thread G3/8 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 6 mm |
| Colour Of Release Ring |
Blue |
| Note On Materials |
RoHS-compliant |
| Material Housing |
Brass, nickel-plated |
| Material Release Ring |
POM |
| Material Tubing Seal |
NBR |
| Material Tubing Clamp Component |
Stainless steel |
