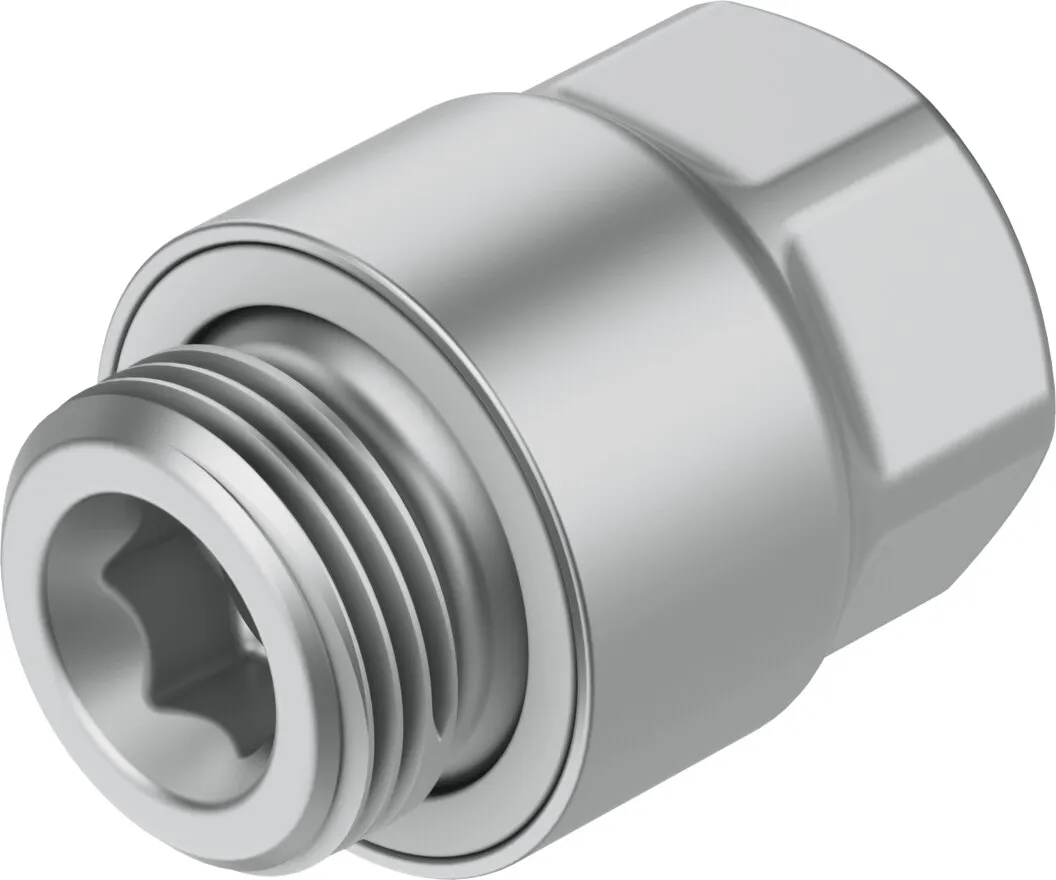

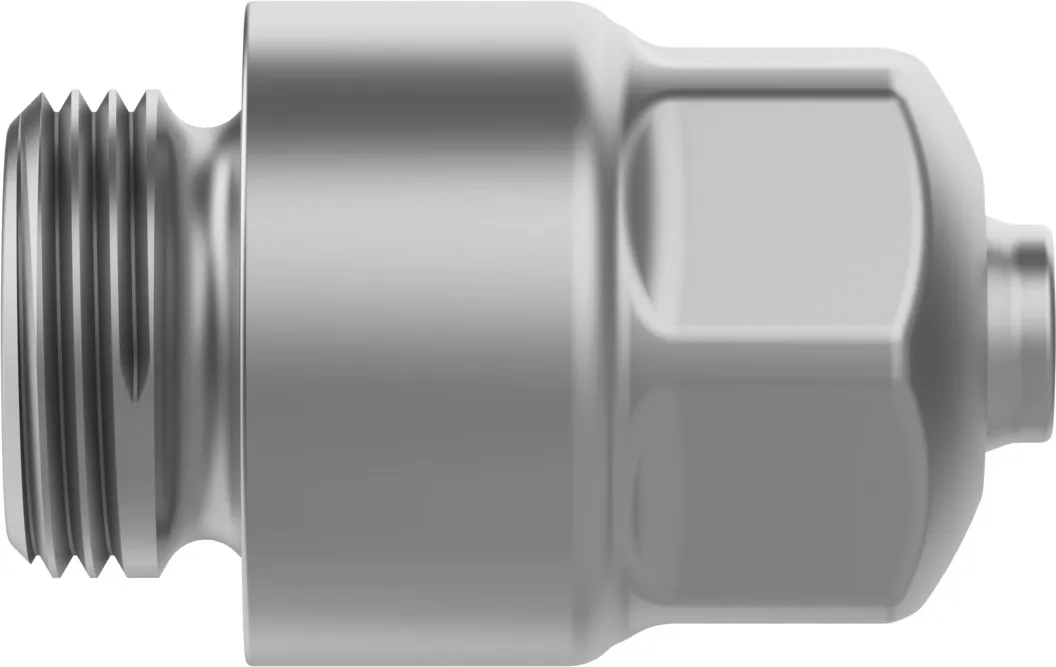

Festo NPCK-C-D-G14-K8
Stainless steel design , Food grade see www.festo.com/certificates/NPCK , Fulfils all clean design requirements , Operating media compressed air, vacuum, water. Water as per the manufacturer’s declara…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Stainless steel design , Food grade see www.festo.com/certificates/NPCK , Fulfils all clean design requirements , Operating media compressed air, vacuum, water. Water as per the manufacturer’s declaration, see www.festo.com/certificates/NPCK , Straight shape
Specification
| Nominal Size |
4.9 mm |
|---|---|
| Type Of Seal On Screwed Plug |
Sealing ring |
| Mounting Position |
optional |
| Design |
Straight design |
| Operating Pressure Complete Temperature Range |
-13.775, 174 psi |
| Note On Operating Pressure |
Water: max. 0.6 MPa at 0 – 85 °C, Water vapour: 0 – 0.15 MPa, 0 – 1.5 bar, 0 – 22 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free), Water vapour |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Suitable For Use With Food |
See supplementary material information |
| Note On Temperature Of Medium |
Water vapour: max. 120 °C |
| Degree Of Protection |
IP69K |
| Ambient Temperature |
-20, 120 °C |
| Note On Ambient Temperature |
The NPCK can be used from -40 to 60 °C when using suitable tubing and observing the maximum operating pressure of the tube. |
| Nominal Torque |
20 Nm |
| Note On The Nominal Tightening Torque |
7 Nm +/- 10% for NPCK on MPA-C |
| Tolerance For Nominal Tightening Torque |
± 10% |
| Product Weight |
28.85 g |
| Pneumatic Connection, Port 1 |
Male thread G1/4 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 8 mm |
| Material Union Nut |
High-alloy stainless steel |
| Material Screwed Plug |
High-alloy stainless steel |
| Note On Materials |
RoHS-compliant |
| Material Sealing Ring |
PEEK |
