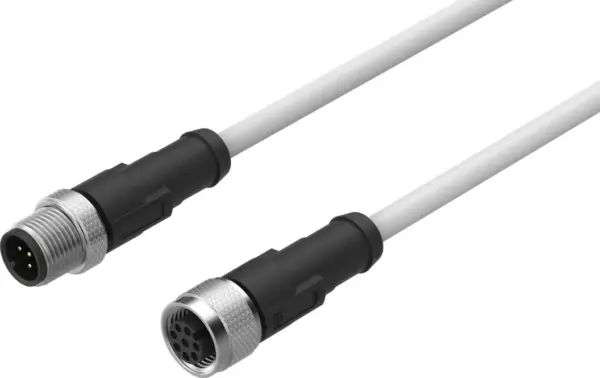

Festo NEFC-M12G8-0.3-M12G5-LK
Adapter, 5-pin M12, for mini USB socket with controller software for CPX terminal , Adapter for rotary drive unit ERMS which forms a connection between the motor and IO-Link master , Plug and manifold…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Adapter, 5-pin M12, for mini USB socket with controller software for CPX terminal , Adapter for rotary drive unit ERMS which forms a connection between the motor and IO-Link master , Plug and manifold block for motor controller CMMO-ST to form a connection from the I/O interface to the controller
Specification
| Based On Standard | EN 61076-2-101 |
|---|---|
| Protocol | IO-Link® |
| Approval | c UL us listed (OL) |
| Cable Designation | Without inscription label holder |
| Product Weight | 30 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 8 |
| Electrical Connection 1, Used Connections/Cores | 3 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock |
| Electrical Connection 1, Connection Pattern | 00992265 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Design | Round |
| Electrical Connection 2, Connection Type | Plugs |
| Electrical Connection 2, Cable Outlet | Straight |
| Electrical Connection 2, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores | 5 |
| Electrical Connection 2, Used Connections/Cores | 3 |
| Electrical Connection 2, Type Of Mounting | Screw-type lock |
| Electrical Connection 2, Connection Pattern | 00991172 |
| Electrical Connection 3, Used Connections/Cores | 3 |
| Operational Voltage Range Dc | 60 V |
| Operational Voltage Range Ac | 48 V |
| Current Rating At 40° C | 2 A |
| Immunity To Surge | 0.8 kV |
| Shielding | no |
| Cable Length | 0.3 m |
| Cable Characteristic | Suitable for energy chains |
| Test Conditions Cable | Test conditions on request |
| Bending Radius, Fixed Cable | 26 mm |
| Bending Radius, Moving Cable | 26 mm |
| Cable Diameter | 5.1 mm |
| Cable Diameter Tolerance | ± 0.2 mm |
| Cable Structure | 5 x 0.34 mm² |
| Nominal Cross Section Conductor | 0.34 mm² |
| Degree Of Protection | IP65, IP67 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -25, 90 °C |
| Ambient Temperature With Moving Cable | -25, 90 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Certificate Issuing Authority | UL E474609 |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Cable Sheath Colour | Silver-grey |
| Material Housing | TPE-U(PUR) |
| Housing Colour | Black |
| Material Screw Type Lock | Die-cast zinc, nickel-plated |
| Material Seals | NBR |
| Material Electrical Contact | Brass |
| Material Insulating Sheath | PP |
