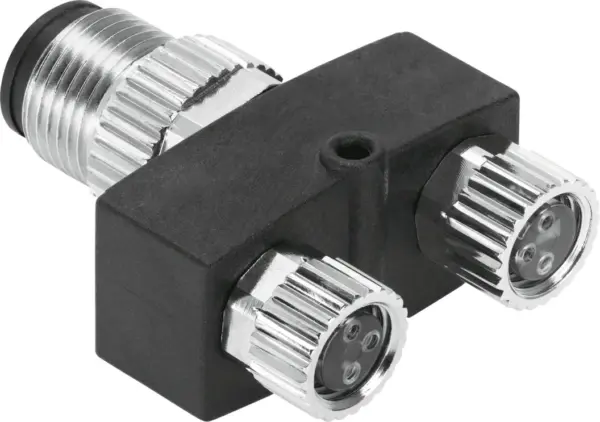

Festo NEDY-L2R1-V1-M8G3-N-M12G4
Collecting signals between field devices (sensors) and double-assigned controller inputs , Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Collecting signals between field devices (sensors) and double-assigned controller inputs , Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)
Specification
| Based On Standard |
EN 61076-2-101, EN 61076-2-104 |
|---|---|
| Design |
Y-distributor without cable |
| Distrubution |
Y type |
| Cable Designation |
Without inscription label holder |
| Type Of Mounting |
Via through-hole for M2 screw, With accessories |
| Product Weight |
20 g |
| Electrical Connection 1, Function |
Controller side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with 13 mm hexagon and longitudinal knurl, Rotatable |
| Electrical Connection 1, Compatible Type Of Mounting |
Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995386 |
| Electrical Connection 2, Function |
Field device side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
2x socket |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M8x1, A-coded to EN 61076-2-104 |
| Electrical Connection 2, Number Of Connections/Cores |
3 |
| Electrical Connection 2, Used Connections/Cores |
3 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical Connection 2, Compatible Type Of Mounting |
Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 2, Connection Pattern |
00991871 |
| Operational Voltage Range Dc |
30 V |
| Operational Voltage Range Ac |
30 V |
| Current Rating At 40° C |
3 A |
| Immunity To Surge |
0.8 kV |
| Degree Of Protection |
IP65, IP68, IP69K |
| Ambient Temperature |
-25, 85 °C |
| Note On Ambient Temperature |
-10 – 40°C with mounting via through-hole |
| Storage Temperature |
-25, 85 °C |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen, Free of phosphoric acid ester |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
PC, TPE-U(PUR) |
| Housing Colour |
Black |
| Material Union Nut |
Nickel-plated brass |
| Material Seals |
NBR |
| Material Electrical Contact |
Gold-plated copper alloy |
| Material Threaded Sleeve |
Nickel-plated brass |
