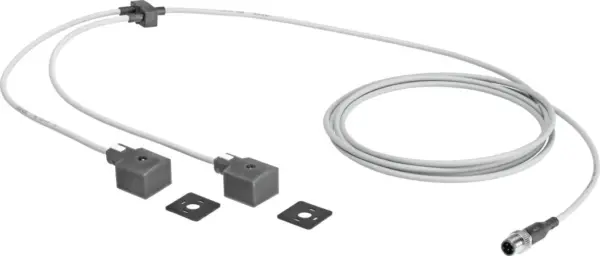

Festo NEDY-L2R1-V1-C1W4L-U-0.3L-M12G4-5R
Collecting signals between field devices (sensors) and double-assigned controller inputs , Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Collecting signals between field devices (sensors) and double-assigned controller inputs , Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)
Specification
| Based On Standard |
EN 175301-803, EN 61076-2-101 |
|---|---|
| Design |
Y-distributor with cables on both sides |
| Distrubution |
Y type |
| Signal Status Display |
Yellow LED |
| Cable Designation |
With label holder |
| Type Of Mounting |
Via through-hole for M2 screw, With accessories |
| Product Weight |
153 g |
| Electrical Connection 1, Function |
Controller side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
3 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with 13 mm hexagon and longitudinal knurl, Rotatable |
| Electrical Connection 1, Compatible Type Of Mounting |
Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995635 |
| Electrical Connection 2, Function |
Field device side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
2x socket |
| Electrical Connection 2, Cable Outlet |
Angled |
| Electrical Connection 2, Connector System |
Plug pattern type C to EN 175301-803 |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
2 |
| Electrical Connection 2, Type Of Mounting |
On solenoid valve with M2.5 central screw |
| Electrical Connection 2, Connection Pattern |
00995620 |
| Operational Voltage Range Dc |
20.4, 27.6 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
0.8 kV |
| Cable Length 1 |
5 m |
| Cable Length 2 |
0.3 m |
| Cable Characteristic |
Suitable for energy chains/robot applications |
| Test Conditions Cable |
Bending strength: to Festo standard, Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm |
| Min. Bending Radius With Free Moving Insert 1 |
39 mm |
| Min. Bending Radius With Free Moving Insert 2 |
39 mm |
| Cable Diameter 1 |
3.8 mm |
| Cable Diameter 2 |
3.8 mm |
| Nominal Cross Section Conductor |
0.25 mm² |
| Degree Of Protection |
IP65, IP67 |
| Ambient Temperature |
-20, 80 °C |
| Note On Ambient Temperature |
-10 – 40°C with mounting via through-hole |
| Ambient Temperature With Moving Cable |
-20, 80 °C |
| Storage Temperature |
-20, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen, Free of phosphoric acid ester |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
PC, TPE-U(PUR) |
| Housing Colour |
Black |
| Material Seals |
NBR |
| Material Electrical Contact |
Gold-plated copper alloy, Silver-plated copper alloy |
| Material Threaded Sleeve |
Nickel-plated brass |
