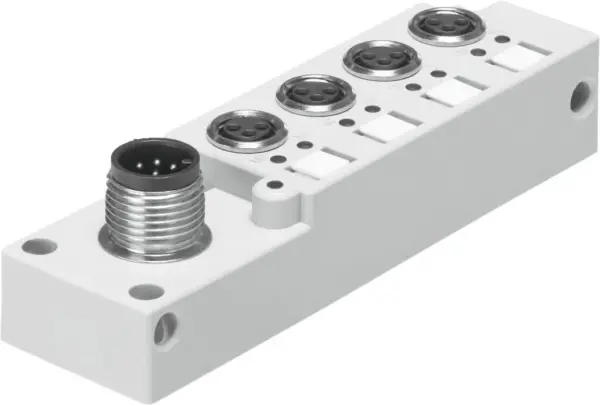

Festo NEDU-L4R1-M8G3L-M12G8
Multi-pin plug distributor , Particularly compact , For fieldbus interface , Branch line for connecting and disconnecting fieldbus components
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Multi-pin plug distributor , Particularly compact , For fieldbus interface , Branch line for connecting and disconnecting fieldbus components
Specification
| Width |
24 mm |
|---|---|
| Height |
23 mm |
| Length |
87 mm |
| Ready Status Indication |
Green LED |
| Status Indication |
Yellow LED |
| Mounting Position |
optional |
| Product Weight |
58 g |
| Electrical Connection 1 |
Straight socket, M8, 3-pin |
| Electrical Connection 2 |
Straight plug connector, M12x1, 8-pin |
| Operational Voltage Range Dc |
10, 30 V |
| Current Rating At 40° C |
3 A |
| Max. Current Per Plug In Position |
2 A |
| Degree Of Protection |
IP68 |
| Ambient Temperature |
-20, 80 °C |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Material Housing |
PBT-reinforced |
| Housing Colour |
grey |
| Material Seals |
FPM |
| Material Electrical Contact |
Nickel-plated and gold-plated |
| Material Socket |
Nickel-plated brass |
