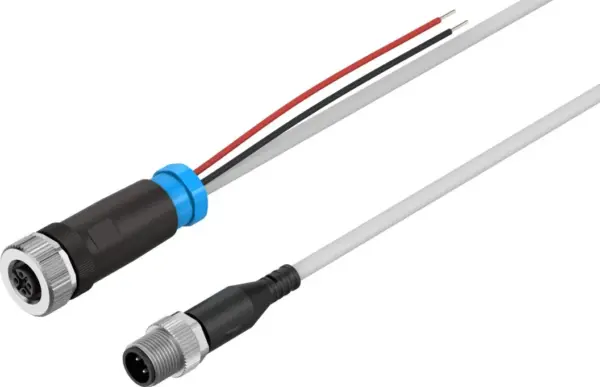

Festo NEDU-L1R2-M12G5-M12LE-1R
Multi-pin plug distributor , Particularly compact , For fieldbus interface , Branch line for connecting and disconnecting fieldbus components
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Multi-pin plug distributor , Particularly compact , For fieldbus interface , Branch line for connecting and disconnecting fieldbus components
Specification
| Based On Standard |
EN 61076-2-101 |
|---|---|
| Design |
Y-distributor with cable on controller side |
| Distrubution |
1 to 2 |
| Additional Functions |
Additional supply for port B |
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
100 |
| Product Weight |
72.5 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
5 |
| Electrical Connection 1, Used Connections/Cores |
5 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with 18 mm hexagon and longitudinal knurl |
| Electrical Connection 1, Connection Pattern |
00995384 |
| Electrical Connection 2, Function |
IO-Link®, Communication |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores |
3 |
| Electrical Connection 2, Used Connections/Cores |
3 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with 13 mm hexagon and longitudinal knurl |
| Electrical Connection 2, Connection Pattern |
00995573 |
| Electrical Connection 3, Function |
Additional supply |
| Electrical Connection 3, Connection Type |
2x single wires |
| Electrical Connection 3, Connector System |
Open end |
| Electrical Connection 3, Number Of Connections/Cores |
2 |
| Electrical Connection 3, Used Connections/Cores |
2 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
0.8 kV |
| Protective Conductor Connection |
Not available |
| Shielding |
no |
| Cable Length |
1 m |
| Cable Length 1 |
1 m |
| Cable Length 2 |
1 m |
| Cable Characteristic |
For static applications |
| Bending Radius 1, Fixed Cable Installation |
11.7 mm |
| Bending Radius 2, Fixed Cable Installation |
6 mm |
| Cable Diameter 1 |
3.8 mm |
| Tolerance For Cable Diameter 1 |
± 0.1 mm |
| Cable Diameter 2 |
1.75 mm |
| Tolerance For Cable Diameter 2 |
± 0.05 mm |
| Cable Design 1 |
3 x 0.25 mm² |
| Cable Design 2 |
2 x 0.5 mm² |
| Nominal Cross Section Conductor |
0.5 mm² |
| Degree Of Protection |
IP65, IP68, IP69K |
| Note On Degree Of Protection |
IP40 for M12 socket, In assembled state |
| Ambient Temperature |
-30, 80 °C |
| Storage Temperature |
-30, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Nickel-plated brass, Die-cast zinc, nickel-plated |
| Material Seals |
NBR |
| Material Electrical Contact |
Nickel-plated and gold-plated bronze, Gold-plated brass |
| Material Insulating Sheath |
PVC |
