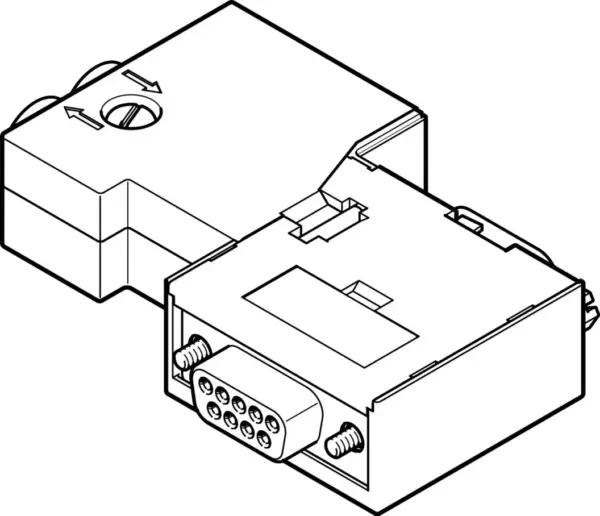

Festo NECU-S1W9-C2-ACO
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power su…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power supply , Can be assembled with any cable lengths
Specification
| Type Of Mounting |
4-40 UNC-2B |
|---|---|
| Product Weight |
59 g |
| Field Bus Interface |
Sub-D, 9-pin, socket |
| Electrical Connection 1 |
Socket, sub-D, 9-pin |
| Electrical Connection 2 |
Screw terminal, can be screened |
| Baud Rate |
1 Mbps |
| Permissible Cable Diameter |
8 mm |
| Connection Cross Section |
0.14, 0.5 mm² |
| Degree Of Protection |
IP20 |
| Ambient Temperature |
-20, 70 °C |
| Relative Air Humidity |
75% at 25ºC |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Housing |
PC-reinforced |
